Rear Parking Brake Cable
CABLES - REARREMOVAL
1. Raise and support the vehicle.
2. Remove the rear tires.
3. Remove the park brake shoes.

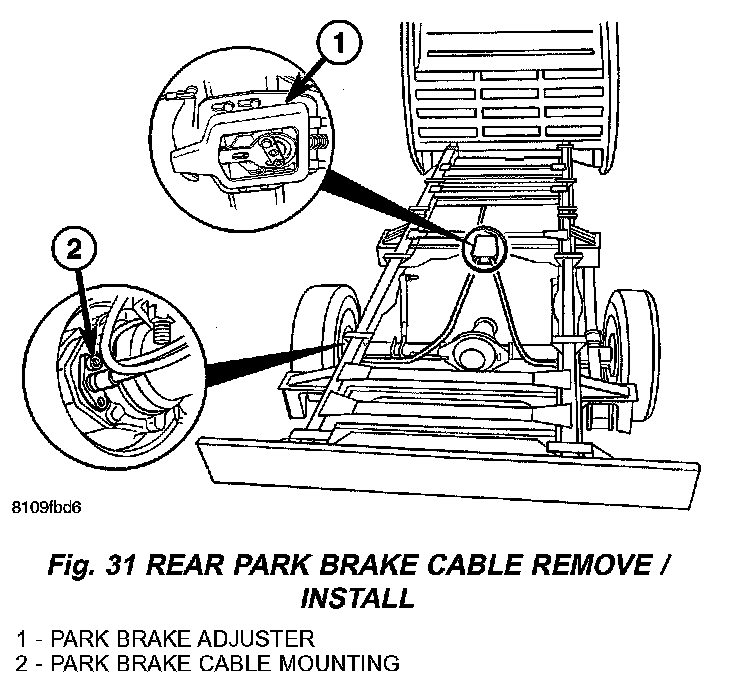

4. Remove the park brake cables from the shoe (Fig. 31).
5. Remove all the connections on the hand brake cable (Fig. 31).
6. Remove the park brake cable lock (Fig. 31). Observe the installed position of the brake cable lock for reference on installation.
7. Remove the hand brake cable from the anchor plate (Fig. 31).
8. Remove the park brake cable from the vehicle. Compress the locking ring on the pulley unit.
INSTALLATION
NOTE: Route the park brake cable free of tension and the risk of chafing.
1. Install the hand brake cable to the anchor plate (Fig. 31).
2. Install the park brake cable lock (Fig. 31).
3. Install all connections on the hardware cable (Fig. 31).
4. Install the park brake cables to the shoe (Fig. 31).
5. Install the park brake shoes.
6. Install the rear wheels.
7. Adjust the park brakes.
8. Lower the vehicle.
