Front Parking Brake Cable

CABLES - FRONT

REMOVAL
1. Raise and support the vehicle.
2. Disconnect the front park brake cable from the pulley unit.

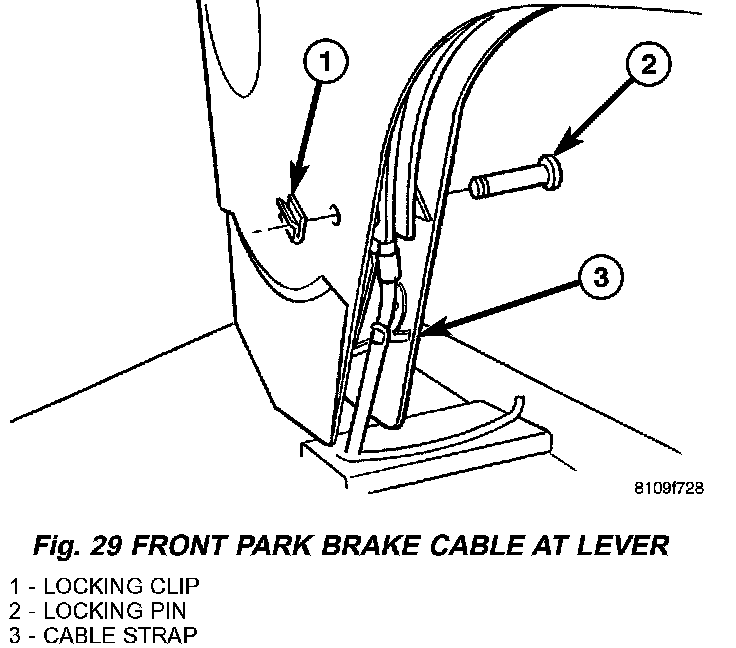

3. Remove the front park brake cable from the hand brake lever (Fig. 29).

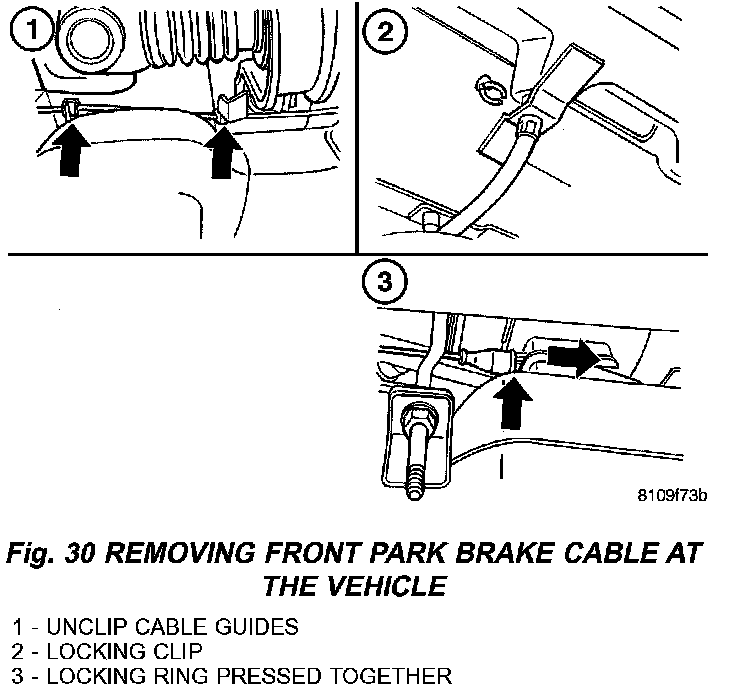

4. Unclip the guides at the frame cross members for the front cable at the vehicle (Fig. 30).
5. Pull off the locking clips at the floor opening and pull the front brake cable down and out (Fig. 30).
6. Press together the locking ring and pull out the front brake cable to the front (Fig. 30).
7. Remove the front park brake cable at the vehicle using special tool 9289.

INSTALLATION
1. Install the front park brake cable to the vehicle.

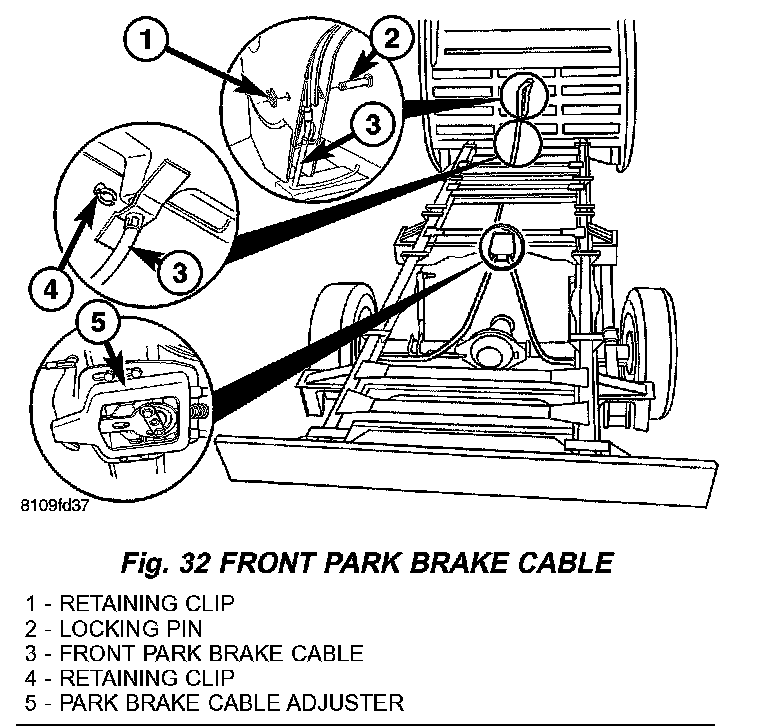

2. Clip the cable guides at the frame cross members (Fig. 32).
3. Install the front park brake cable to the hand brake lever (Fig. 29).
4. Reconnect the front park brake cable to the pulley unit (Fig. 32).
5. Adjust the parking park.
6. Lower the vehicle.
