Fluid Reservoir Removal and Installation
FLUID RESERVOIRREMOVAL

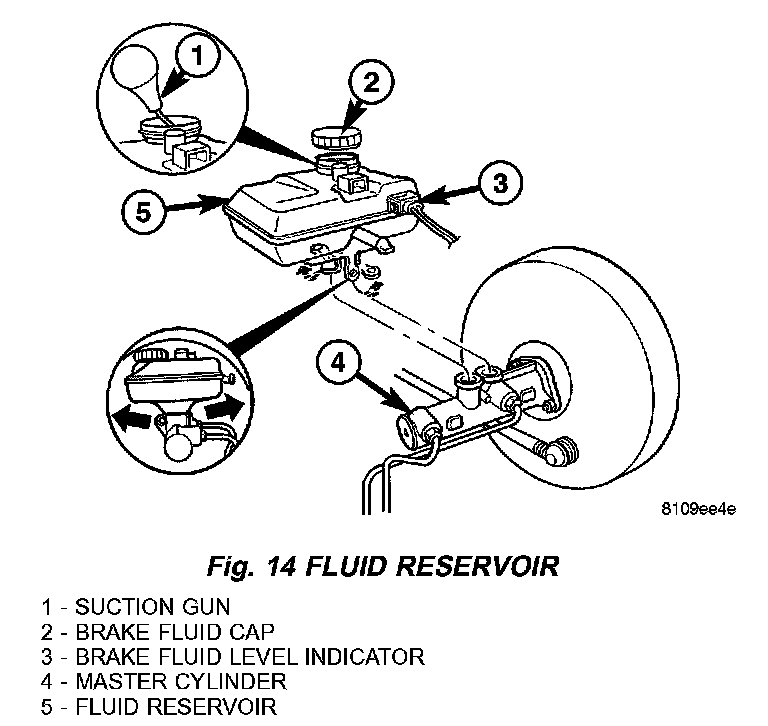

1. Using a suction gun remove as much brake fluid from the reservoir as possible (Fig. 14).
2. Disconnect the electrical connector for the brake fluid level indicator (Fig. 14).
3. Remove the fluid reservoir (Fig. 14). Seal off the ends and bore holes with plugs.
INSTALLATION
1. Install the fluid reservoir and fill with fluid (Fig. 14).
2. Bleed the brake system.
3. Check the brake system for any leaks.
4. Reconnect the electrical connector to the brake fluid level indicator (Fig. 14).
