Single Rear Wheels
ROTORS - FRONTREMOVAL (SRW)
1. Raise and support the vehicle.
2. Remove the front wheels.

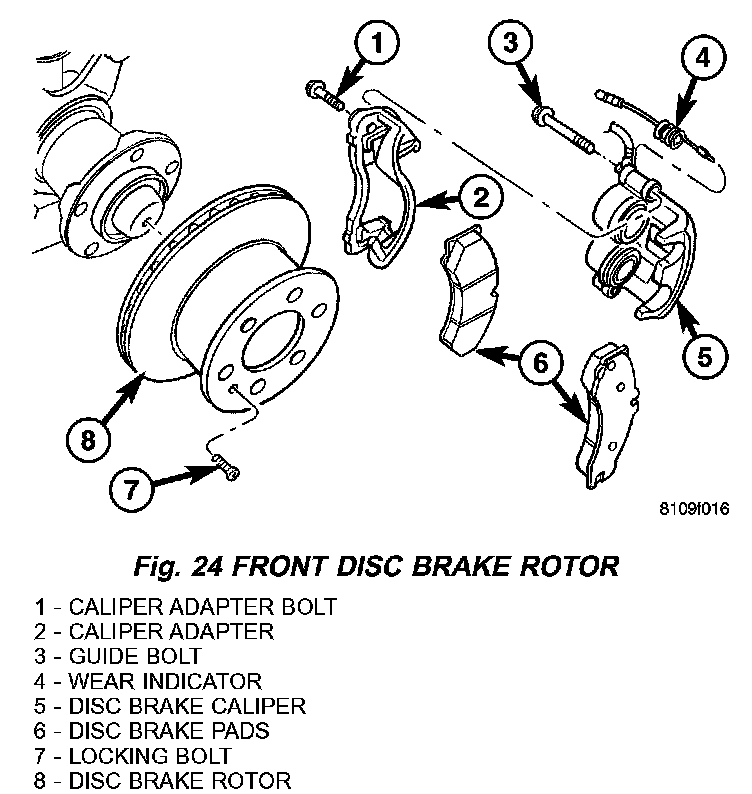

3. Remove the front brake pads (Fig. 24).
4. Remove the caliper adapter (Fig. 24).
5. Install two lug studs to secure the disc brake rotor when the locking bolt is removed.
6. Remove the locking bolt for the disc brake rotor (Fig. 24).
7. Remove the two lug nuts.
8. Remove the disc brake rotor (Fig. 24).
INSTALLATION (SRW)
1. Install the disc brake rotor to the hub and install two lug studs to hold rotor in place.
2. Install the locking bolt for the rotor (Fig. 24). Tighten to 23 Nm (204 inch lbs.).
3. Install the disc brake caliper adapter (Fig. 24). Tighten to 170 Nm (125 ft. lbs.).
4. Install the brake pads (Fig. 24).
5. Press and release the brake pedal several times until pressure has built up.
6. Check fluid in reservoir and correct if necessary.
7. Install the front wheels.
8. Lower the vehicle.
