Brake Pedal Assy: Service and Repair

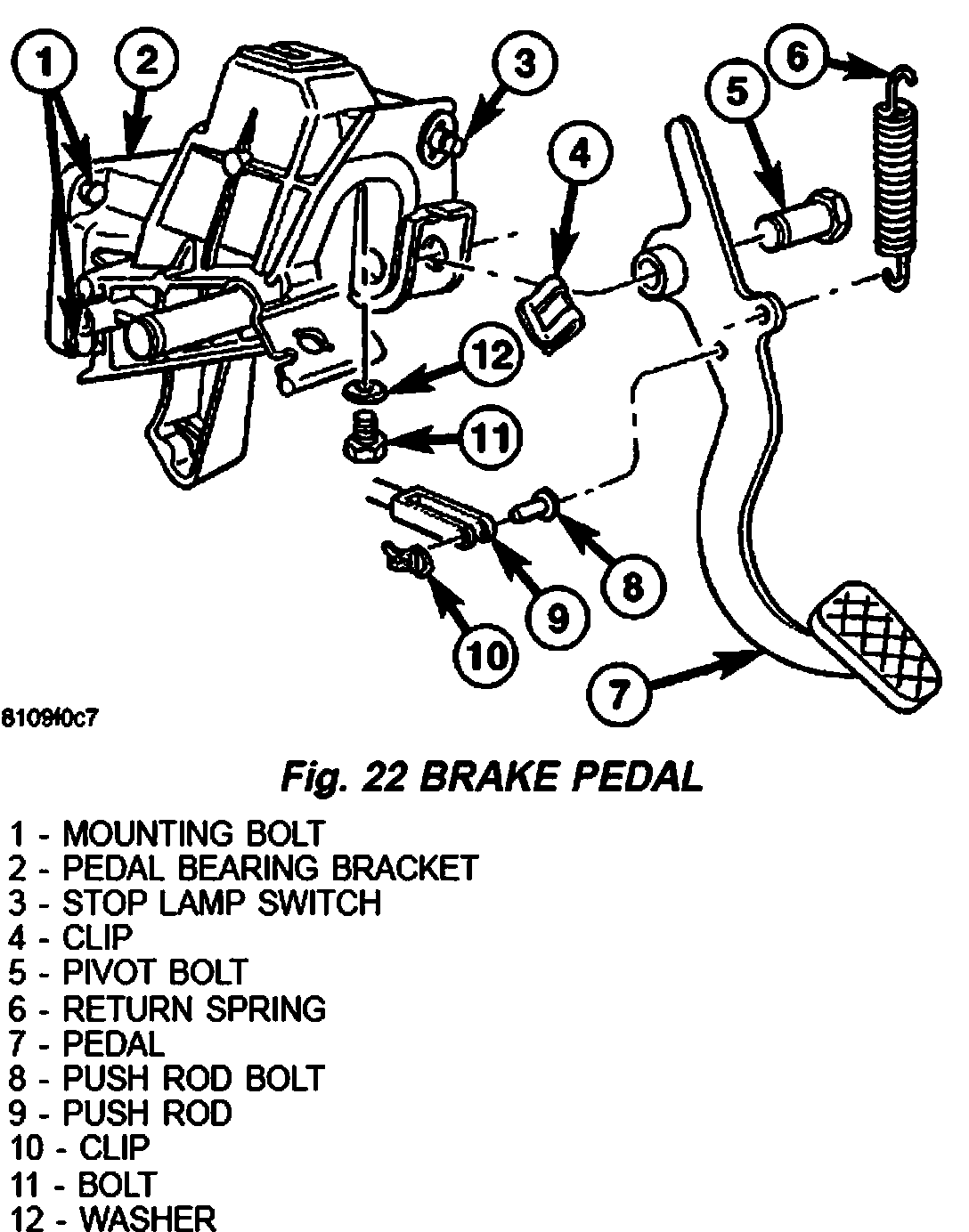

REMOVAL





1. Remove the master cylinder.
2. Remove the retainer and pin for the master cylinder push rod.
3. Remove the retainer and pin for the brake pedal pivot bolt.
4. Unhook the spring and remove the brake pedal.
5. Disconnect the plug connector on the stop lamp switch.
6. Remove the bolts and remove the pedal bearing bracket.

INSTALLATION

1. Install the bolts for the pedal bearing bracket. Tighten to 23 Nm (204 in. lbs.)
2. Reconnect the plug connector for the stop lamp switch.
3. Install the brake pedal and hook the spring.
4. Install the retainer and pin for the brake pedal.
5. Install the retainer and pin for the master cylinder push rod.
6. Install the master cylinder.
