Power Mirror Switch: Service and Repair

POWER MIRROR SWITCH

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the door handle trim.

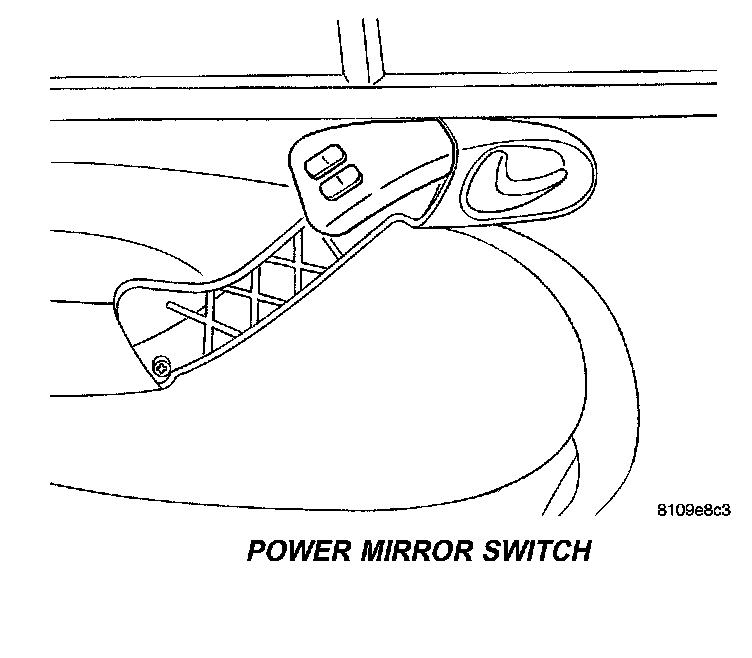

Power Mirror Switch:

3. Remove the mirror switch/power window switch trim.
4. Disconnect the electrical wire harness and remove switch.

INSTALLATION
1. Connect electrical harness connector to switch.
2. install the mirror switch/power window switch trim.
3. Install the door handle trim.
4. Connect the battery negative cable.
