RKE Inoperative

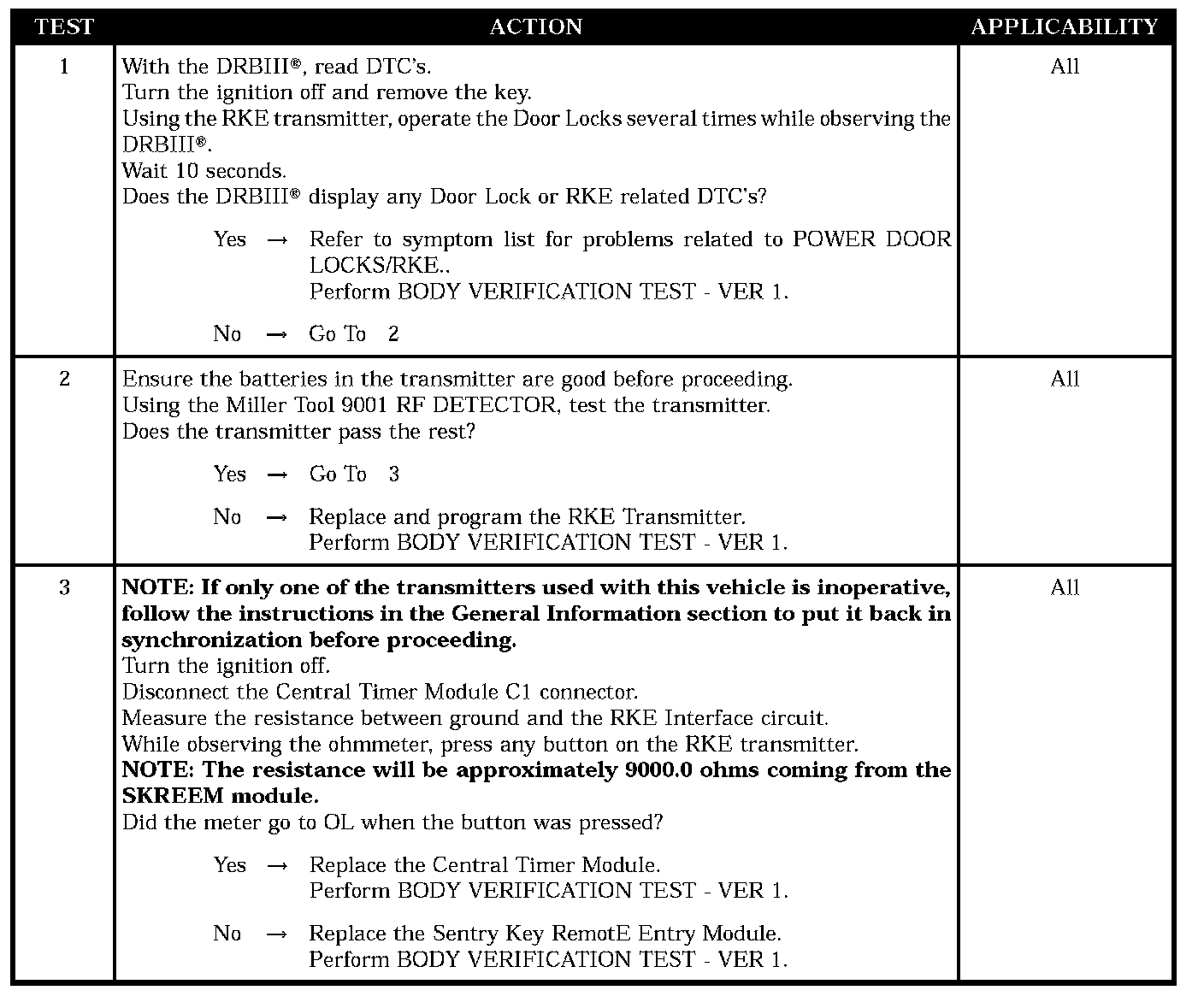

Test 1 - Test 3:






SYMPTOM
RKE INOPERATIVE

POSSIBLE CAUSES
- DTC present
- Transmitter inoperative
- Central timer module
- SKREEM open
- Test action
