Door Lock Cylinder: Service and Repair

Removing and installing lock cylinder

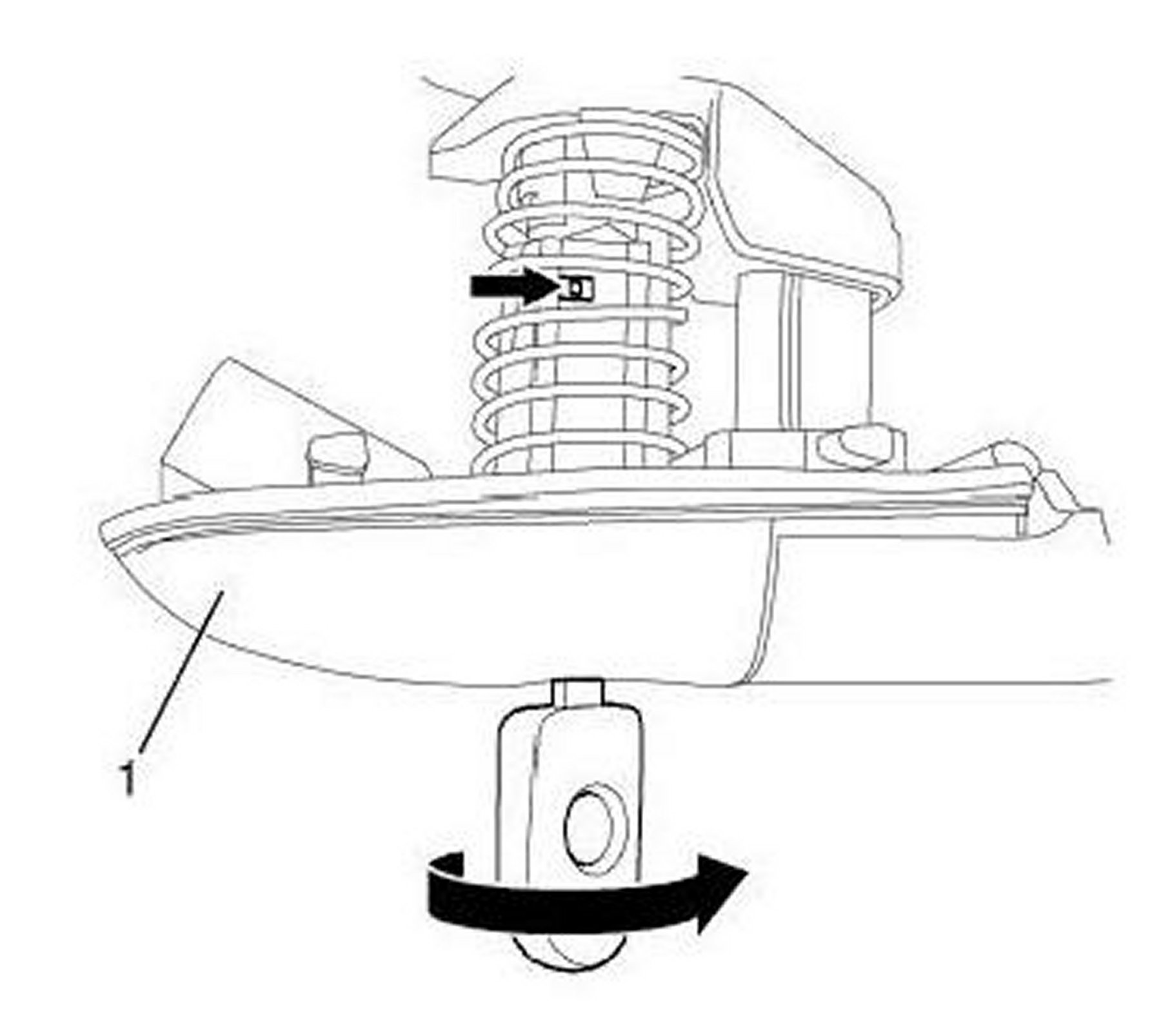

Removing And Installing Lock Cylinder:

1 Door handle

Remove

1. Remove door handle (1)
2. Insert ignition key into lock cylinder and turn to right to stop
3. Push retaining vane of lock cylinder down through slot in door handle (arrow)
4. Pull out lock cylinder

Install

5. Insert lock cylinder with ignition key into mounting hole of door handle (1) to stop Lock cylinder fits only in one position and catches only there
