B-Pillar Trim

B - PILLAR TRIM

REMOVAL

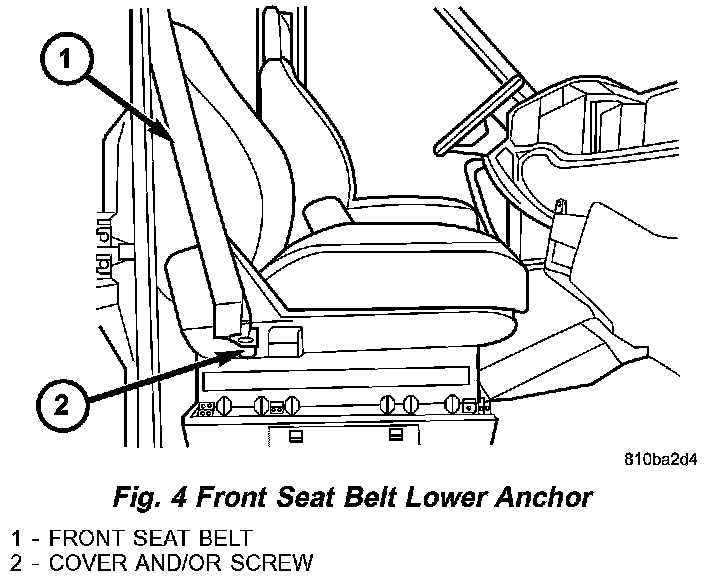

Fig. 4:

1. Remove the lower seat belt anchor bolt. (Fig. 4)

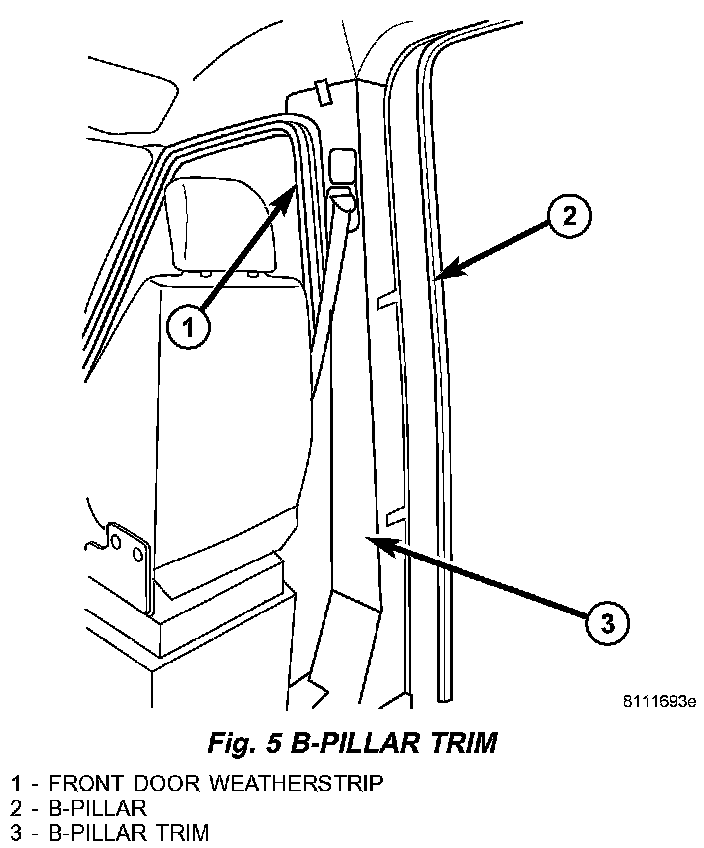

Fig. 5:

2. Pull door opening weatherstrip away from flange along the b-pillar. (Fig. 5)

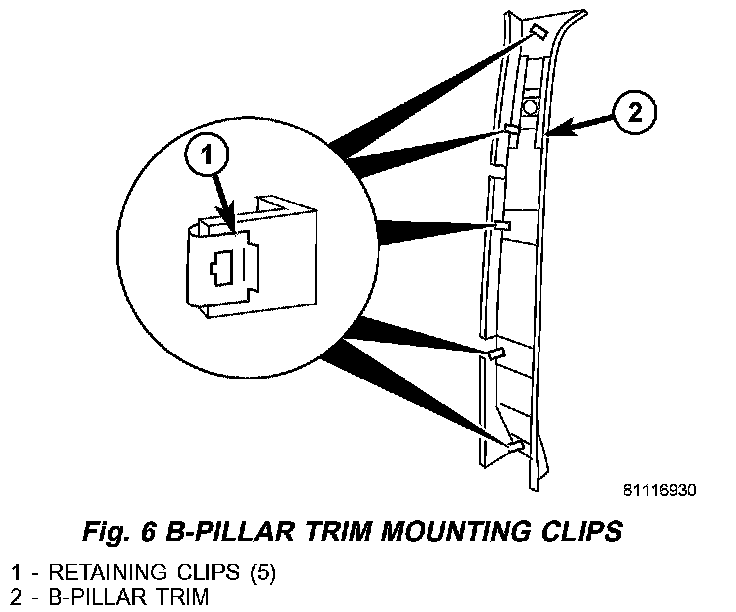

Fig. 6:

3. Using a trim stick C-4755 or equivalent, release the trim clips and remove the trim. (Fig. 6)

INSTALLATION

1. Route the seat belt through the trim and mount the trim panel.
2. Seat the mounting clips fully.
3. Position the door opening weatherstrip back along the mounting flange.
4. Install the seat belt and mounting bolt.
5. Tighten the bolt to 35 N.m (26 ft.lbs.).
