A-Pillar Trim

A - PILLAR TRIM

REMOVAL

1. Using a trim stick C-4755 or equivalent, separate the top of the a-pillar trim.

Fig. 1:

2. Pull top of a-pillar trim out and pull trim up and remove. (Fig. 1)

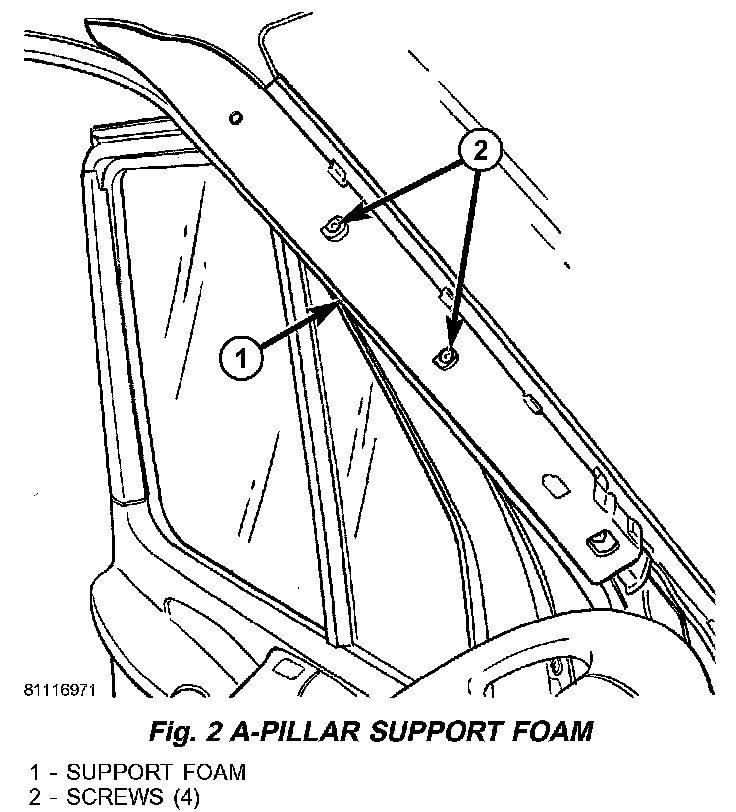

Fig. 2:

3. Remove the four screws and remove the foam trim support. (Fig. 2)

INSTALLATION

1. Install the foam support and install the screws.
2. Install the a-pillar trim bottom and push the top in toward a-pillar.
3. Seat the retaining clips fully.
