Bulkhead Trim Panel

BULKHEAD TRIM PANEL

REMOVAL

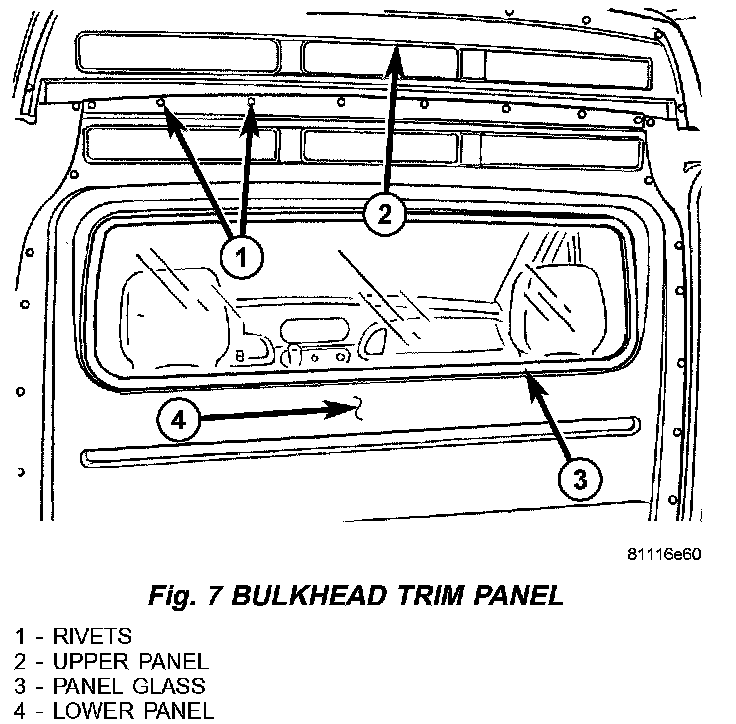

Fig. 7:

1. Remove the rivets and remove the lower panel. (Fig. 7)
2. Remove the rivets and remove the upper panel.

INSTALLATION

1. Install the upper panel and replace rivets.
2. Install the lower panel and replace rivets.
