Interior Moulding / Trim: Service and Repair

STEPWELL SCUFF PADS

REMOVAL

1. Remove screws and remove seat bracket if necessary.

Fig. 8:

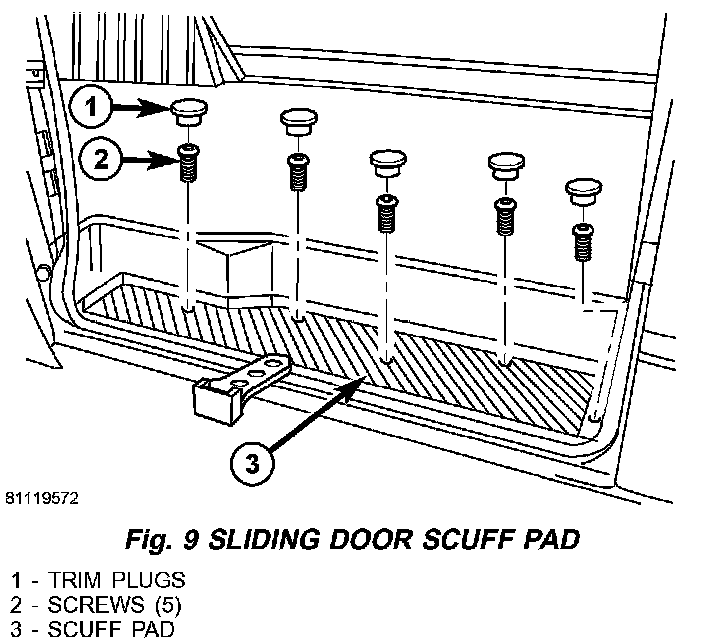

Fig. 9:

2. Remove trim plugs and screws. (Fig. 8) and (Fig. 9)
3. Remove stepwell scuffs.

INSTALLATION

1. Install scuff pad and install the screws.
2. Install the trim plugs.
3. Install the seat bracket, if necessary.
