Drink Holders: Service and Repair

CUP HOLDER

REMOVAL

WARNING: ON VEHICLES EQUIPPED WITH AIR-BAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, SEAT BELT TENSIONER, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

1. Remove rubber mat from both cup holders.

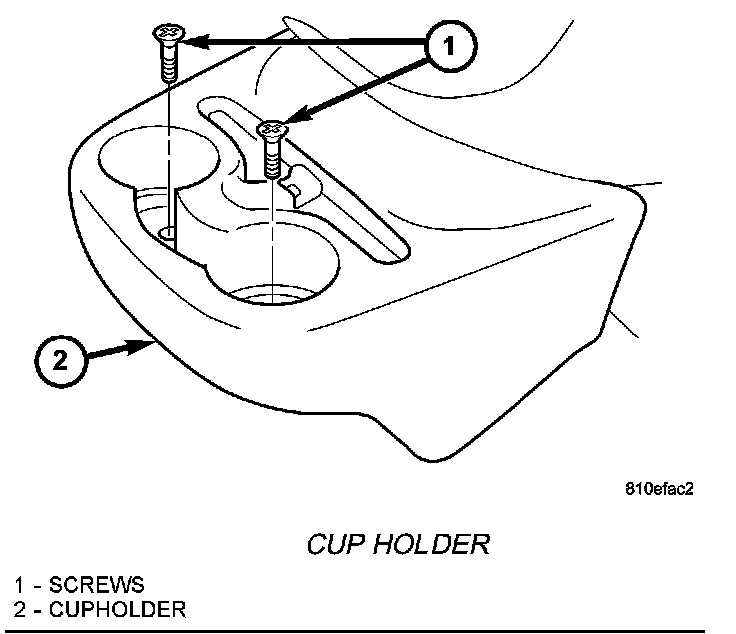

Cup Holder:

2. Unscrew screws (1) and remove cup holder top section (2).

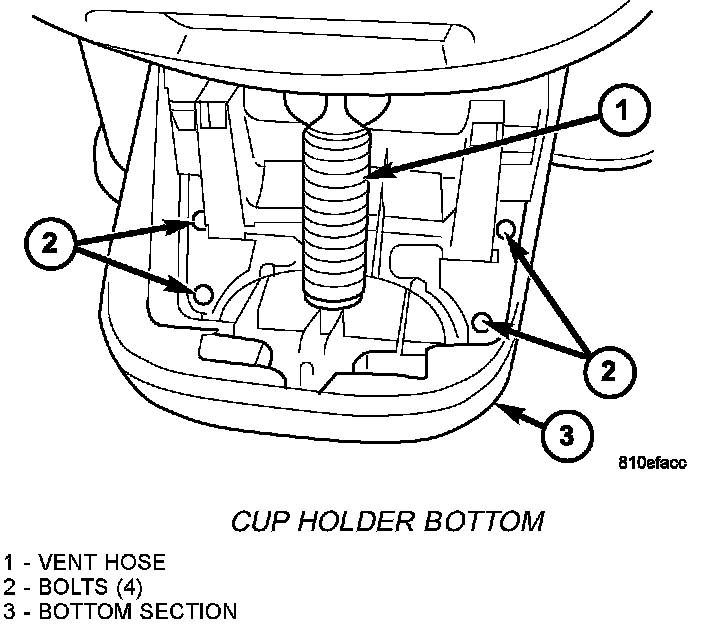

Cup Holder Bottom:

3. Remove vent hose (1).
4. Unscrew bolts (2) and remove cup holder bottom section (3) from cab floor.

INSTALLATION
1. Install bottom section and install the bolts.
2. Install vent hose.
3. Install top section and install the screws.
4. Install rubber mats.
