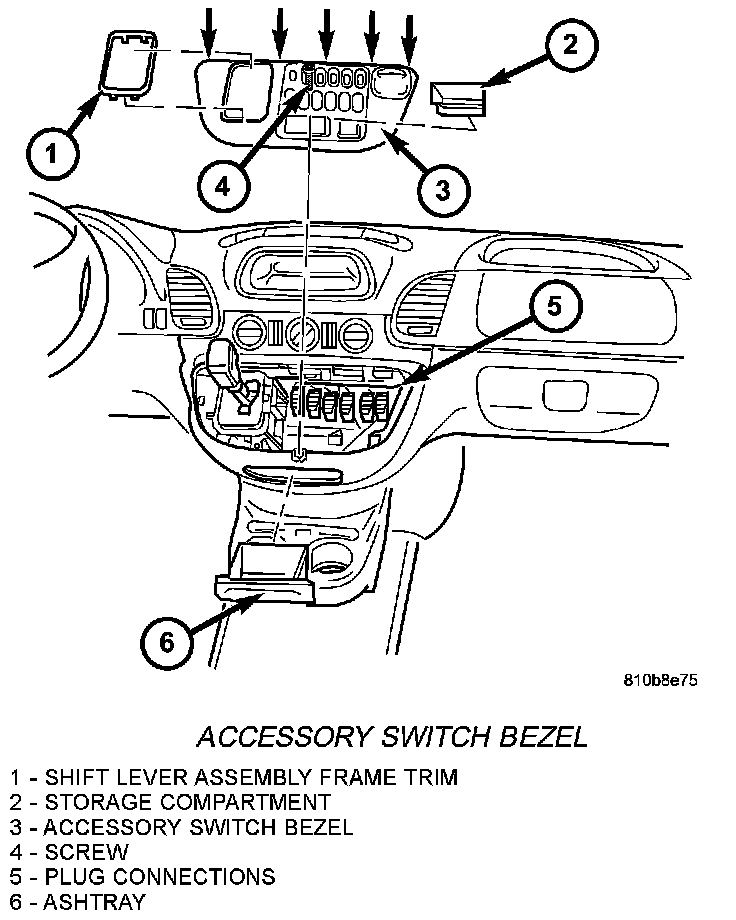

Accessory Switch Bezel

WARNING: ON VEHICLES EQUIPPED WITH AIR-BAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, SEAT BELT TENSIONER, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

REMOVAL
1. Move selector lever to position "D".

Accessory Switch Bezel:

2. Using a trim stick C-4755 or equivalent, remove shift lever frame trim.
3. Using a trim stick C-4755 or equivalent, remove storage compartment.
4. Remove ashtray.
5. Remove screw and using a trim stick C-4755 or equivalent, remove bezel.

INSTALLATION
1. Position bezel and seat clips fully.
2. Install screw.
3. Install ashtray.
4. Install storage compartment.
5. Install shift lever trim.
