Rear Latch Striker

REMOVAL
1. Open door.

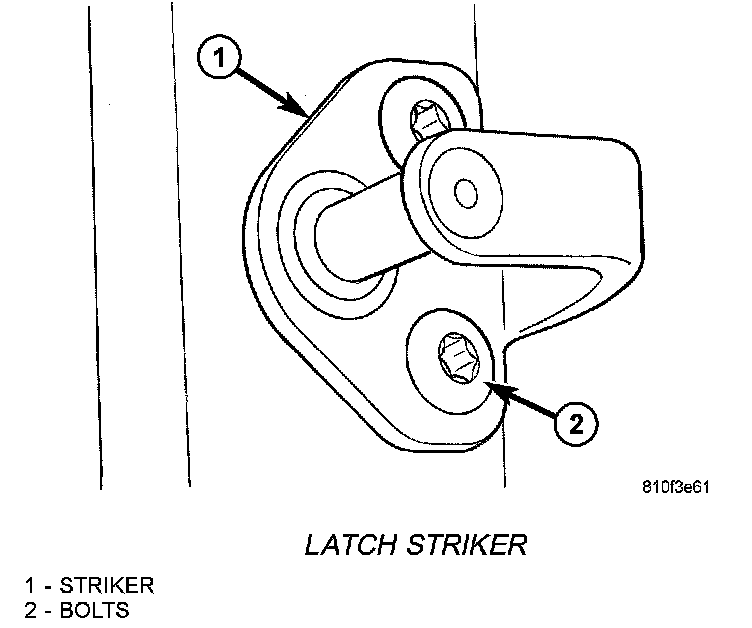

Latch Striker:

2. Remove bolts and remove striker.

INSTALLATION
1. Install striker and bolts.
2. Tighten bolts to 25 Nm (18 ft. lbs.)
3. Adjust striker if necessary.
