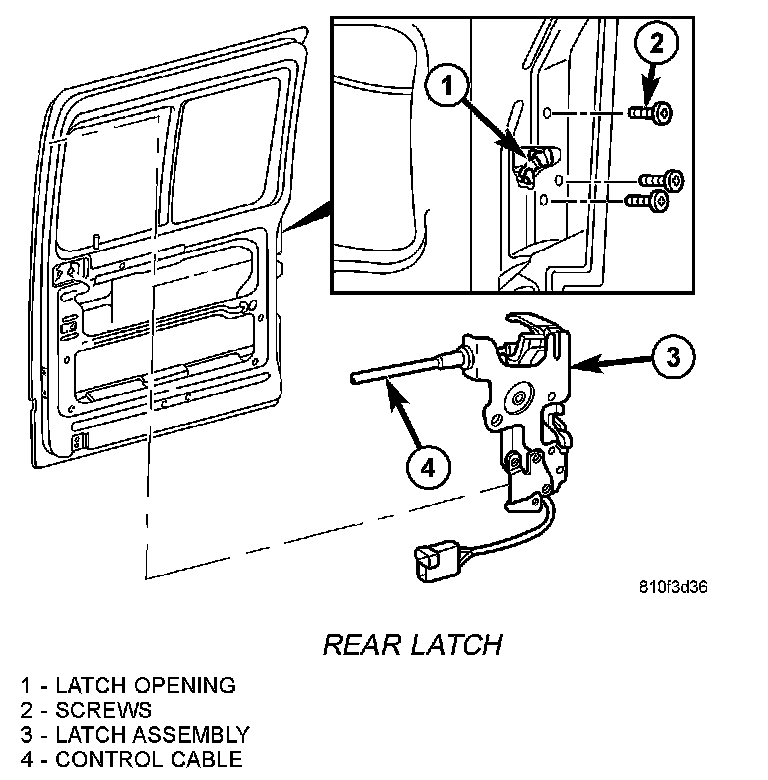

Rear Latch

REMOVAL

Rear Latch:

1. Disconned and isolate battery negative cable.
2. Remove trim panel.
3. Remove the screws and remove the latch from door.
4. Disconned electrical connector, if equipped.
5. Disconned control cable.

INSTALLATION
1. Conned control cable.
2. Conned electrical connector, if equipped.
3. Position latch in door and install screws.
4. Tighten screws to 10 Nm (89 in. lbs.).
5. Install trim panel.
6. Conned battery negative cable.
