Hood Shock / Support: Service and Repair

PROP ROD

REMOVAL

1. Open and support hood.

Fig. 1:

2. Remove the prop rod retaining clip. (Fig. 1)
3. Separate the prop and spring from the hood.

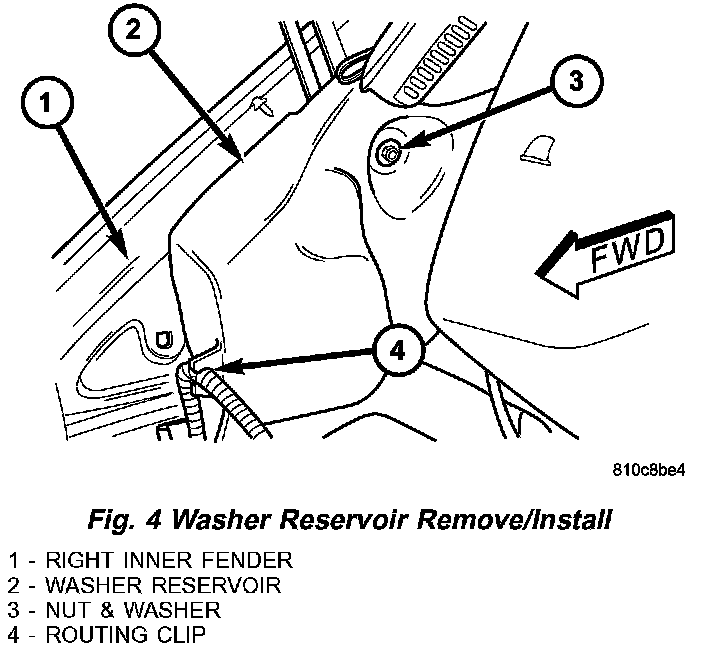

Fig. 4:

4. Remove nut and position the washer bottle aside. (Fig. 4)

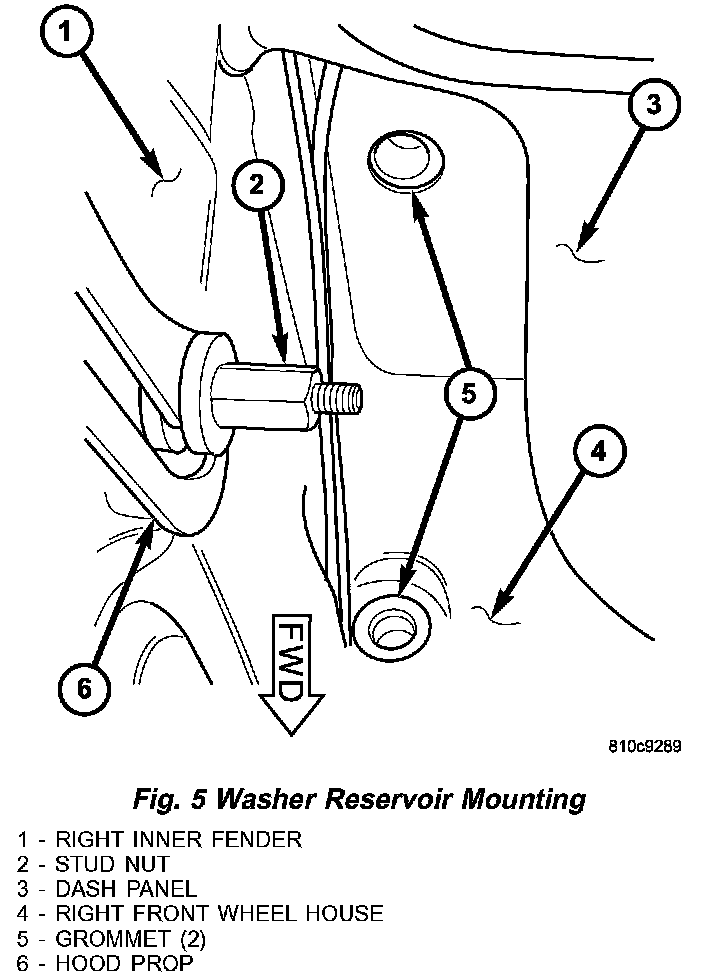

Fig. 5:

5. Remove stud nut and remove hood prop. (Fig. 5)

INSTALLATION

1. Install hood prop and install the stud nut.
2. Position washer bottle back and install the nut and washer.
3. Connect spring and prop onto hood and install the retaining spring.
