Safety Latch

SAFETY LATCH

REMOVAL

1. Open hood.
2. Using a grease pencil or equivalent, mark the position of the safety latch to aid installation.

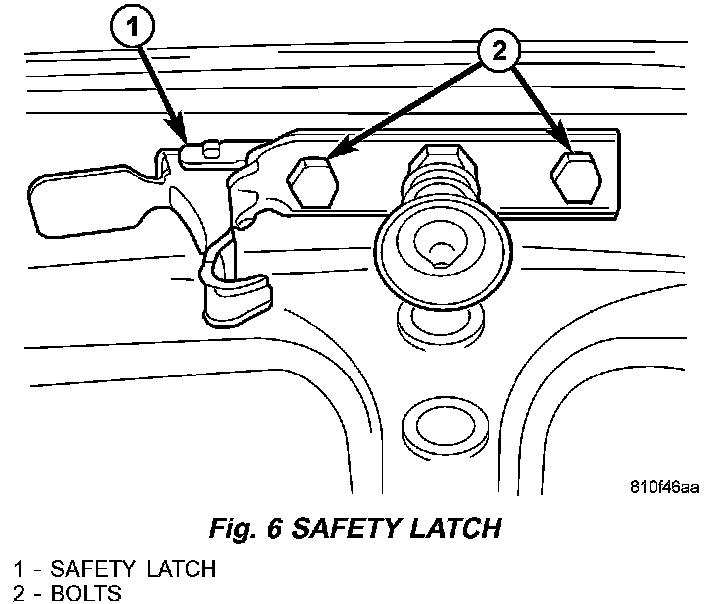

Fig. 6:

3. Remove the bolts and remove the latch. (Fig. 6)

INSTALLATION

1. Install the latch and install the bolts.
2. Adjust the latch if necessary.
