Sliding Door Striker: Service and Repair

REAR LATCH STRIKER

REMOVAL

1. Open door.

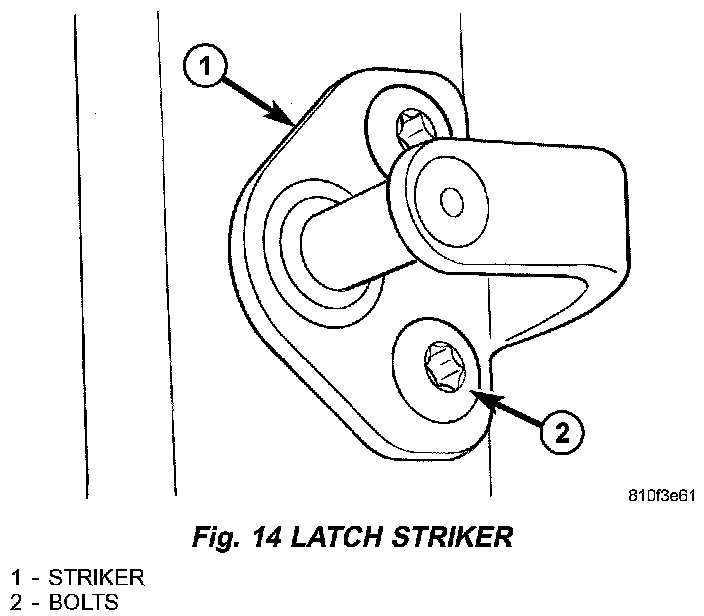

Fig. 14:

2. Remove bolts and remove striker. (Fig. 14)

INSTALLATION

1. Install striker and bolts.
2. Tighten bolts to 25 N.m (18 ft.lbs.).
3. Adjust striker if necessary.
