Stabilizer

STABILIZER

REMOVAL

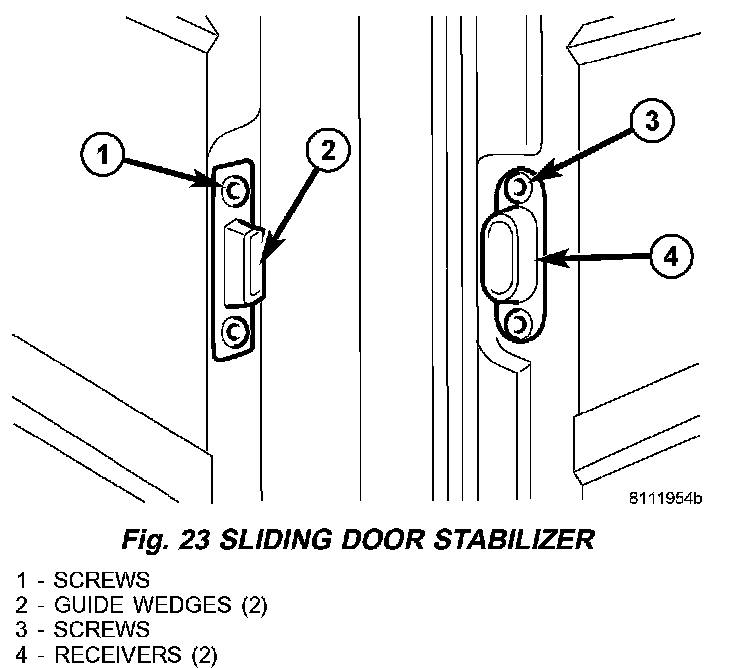

Fig. 23:

1. Remove screws and remove stabilizers. (Fig. 23)

INSTALLATION

1. Install receiver and install screws.
2. Tighten screws to 10 N.m (89 in.lbs.).
3. Install wedge and install screws.
4. Close sliding door to adjust closing wedge.
5. Open door and tighten screws to 10 N.m (89 in.lbs.).
