Service Manual

DOOR

REMOVAL

1. Disconnect and isolate battery negative cable.

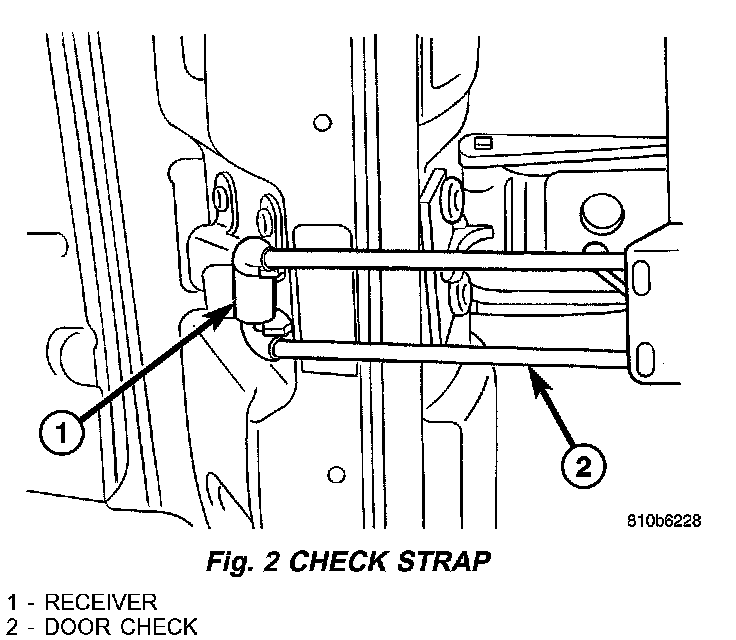

Fig. 2:

2. Open door and disengage check arm from receiver. (Fig. 2)
3. Using a grease pencil or equivalent, mark the outline of the door hinges on the door to aid in installation.
4. Support door with a suitable lifting device.

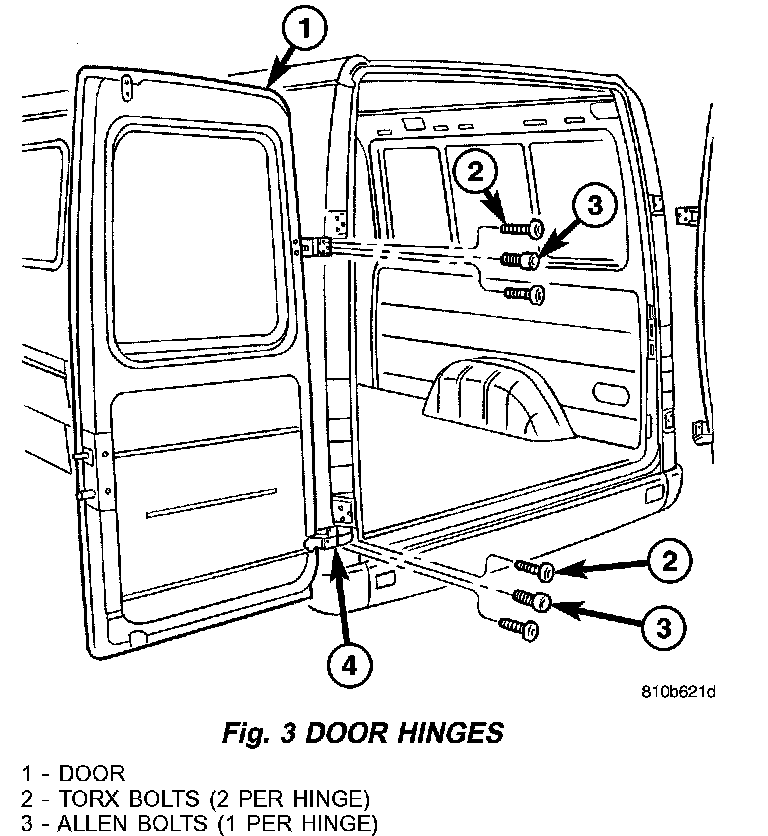

Fig. 3:

5. Remove the bolts and remove the door. ( fig. 3)

INSTALLATION

CAUTION: If the door is being replaced a suitable seam sealer must be used prior to painting.

1. Support the door with a suitable lifting device, install door and install the hinge bolts.
2. Tighten bolts to 25 N.m (18 ft.lbs.).
3. Engage check arm into receiver.
4. Adjust the door as necessary.
