Rear Door Hinge: Service and Repair

HINGE

REMOVAL

NOTE: It is not necessary to remove the door to replace the hinges if they are replaced one at a time.

1. Using a grease pencil or equivalent, mark the position of the hinge on the door.

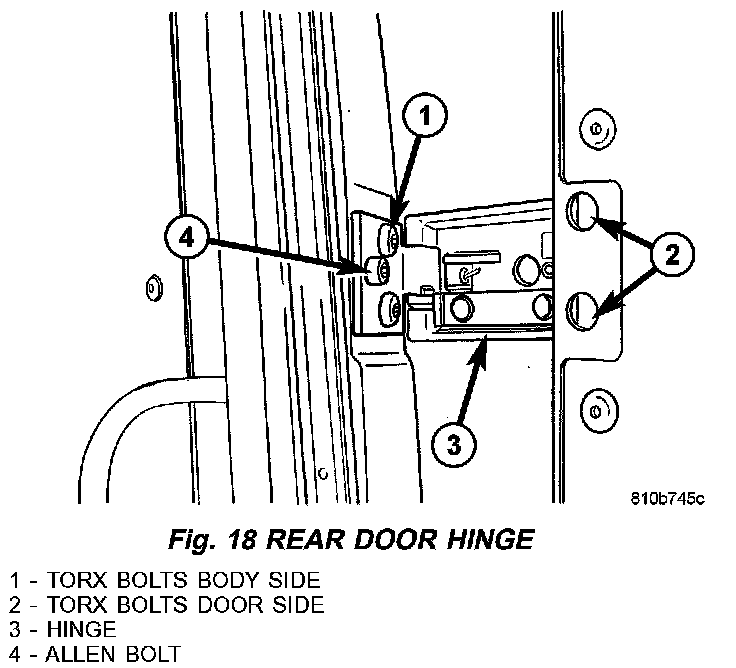

Fig. 18:

2. Remove the bolts and remove the hinge. (Fig. 18)

INSTALLATION

1. Install hinge and install bolts.
2. Tighten bolts to 25 N.m (18 ft.lbs.).
3. Adjust door if necessary.
