Body Repair Manual

Remove/install Hinged Door:

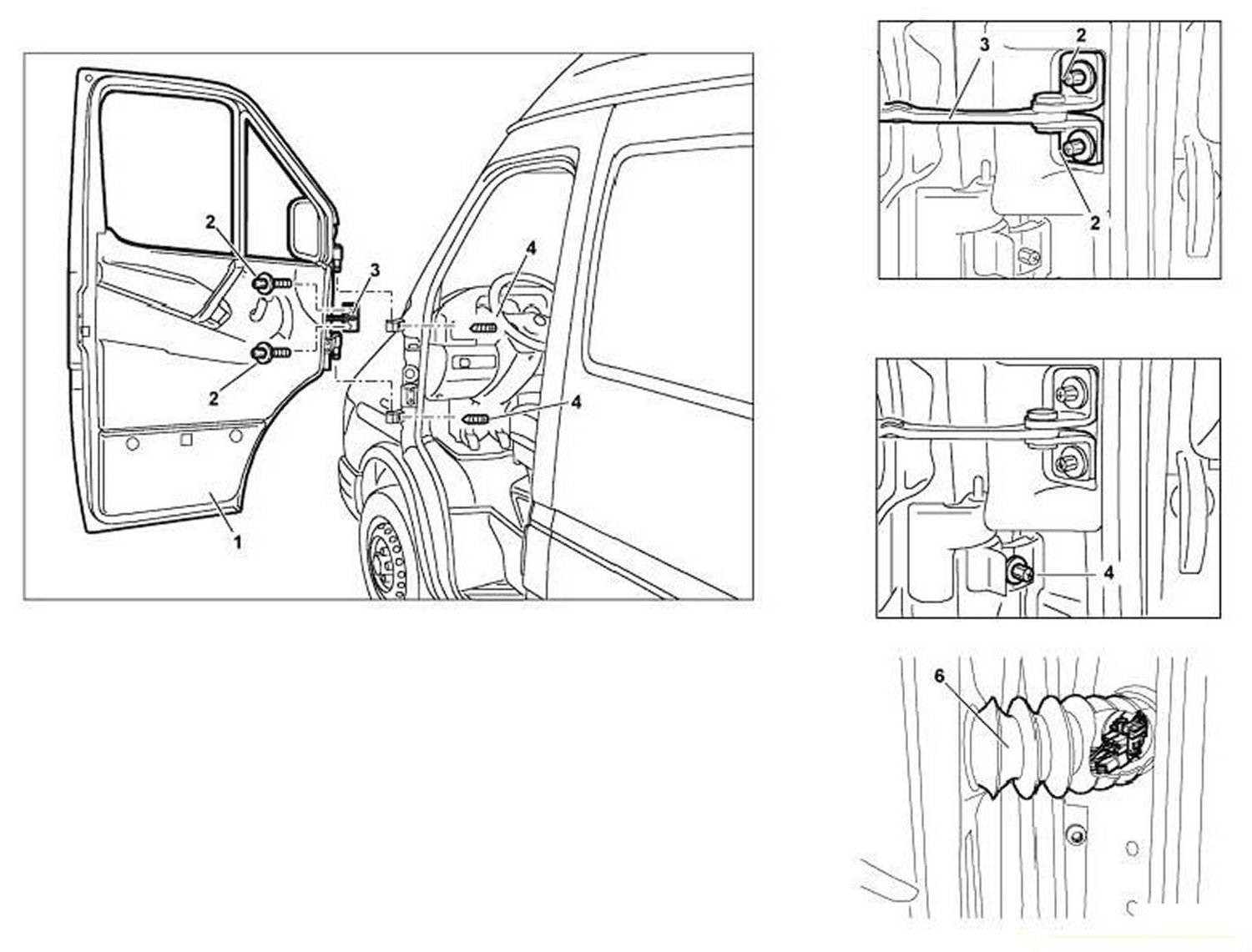

Remove/install hinged door

Remove/Install

1.1. Remove bellows (6) from A-pillar and disconnect electrical connectors
2. Unscrew door catch strap (3) Installation:Insert M6 torx bolts (2) with adhesive, replace M8
3. Unscrew hexagon socket head screw (4) from door hinges
4. Lift out hinged door (1)
5. Install in the reverse order
6. Adjust hinged door
