Front Door Striker: Service and Repair

LATCH STRIKER

REMOVAL

1. Using a grease pencil or equivalent, mark the position of the striker to aid installation.

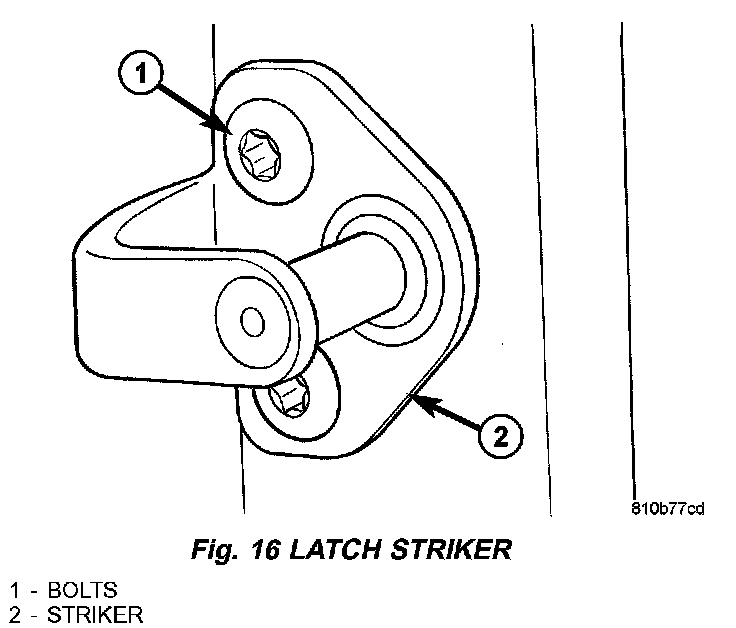

Fig. 16:

2. Remove the bolts and remove the striker. (Fig. 16)

INSTALLATION

1. Install striker and install bolts.
2. Tighten bolts to 25 N.m (18 ft.lbs.).
3. Check door for flush and adjust the striker horizontally if necessary.
