Adjusting Hinged Door

Adjusting

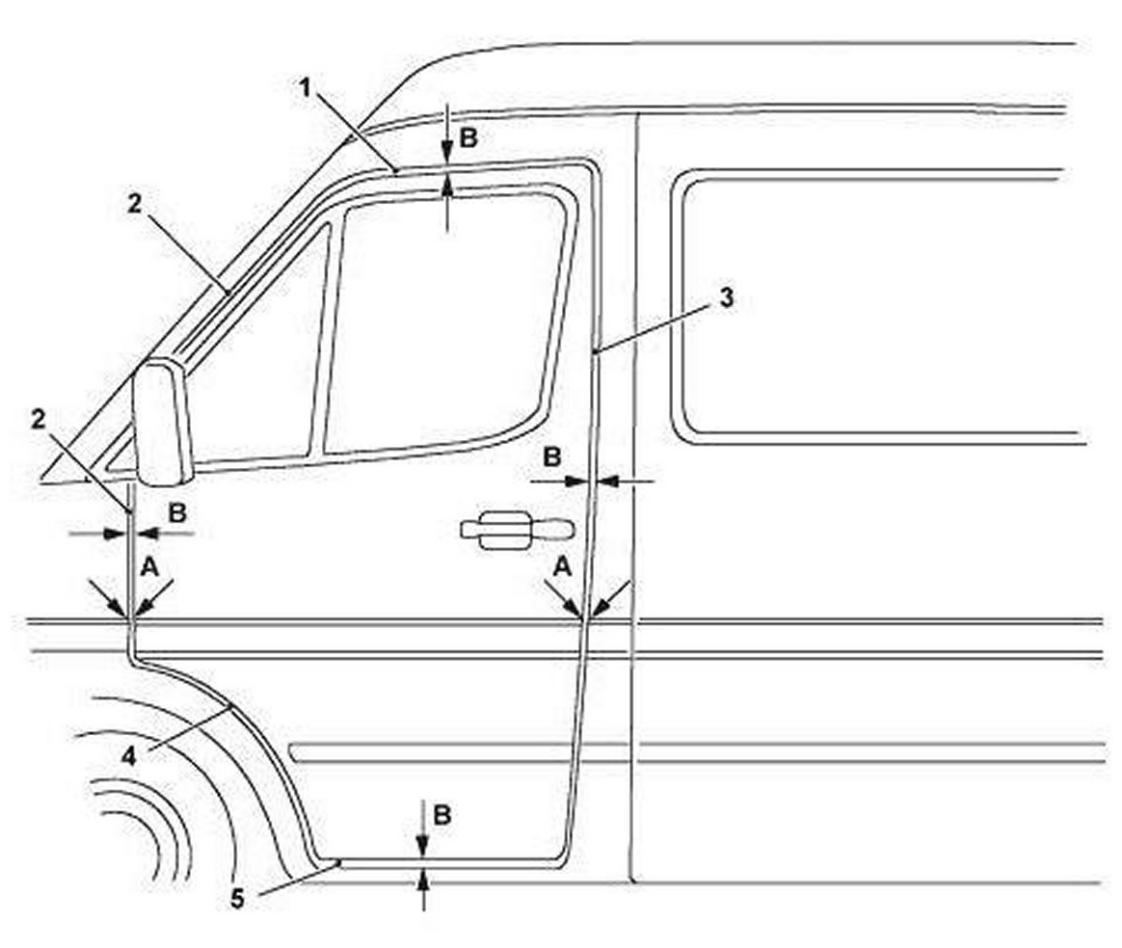

Adjusting Hinged Door:

A Ridge pattern
B Door gap

1 Door gap at top
2 Door gap on A-pillar
3 Door gap on B-pillar
4 Door gap on wheelhouse
5 Bottom door gap




1 Check gaps and ridge pattern on hinged door all the way around
Ridge transitions flush without offset.

2 Adjust door gap and ridge pattern
Door gap B and ridge pattern A

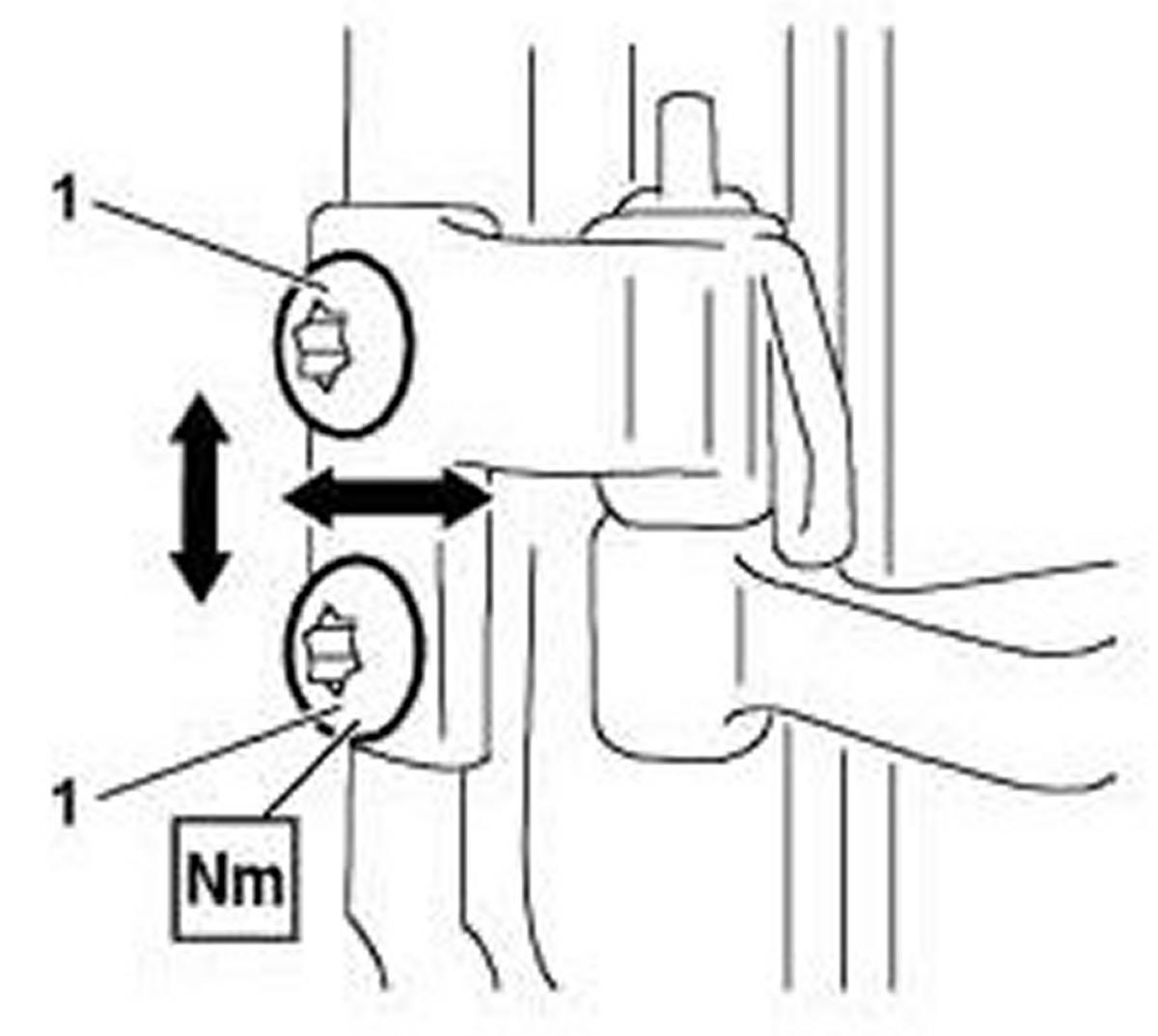

Adjust door gap and ridge pattern for hinged door
1 Unscrew Torx screws (1) from door hinges.
2 Adjust door gap by vertically and horizontally adjusting door.
3 Adjust ridge pattern by vertically adjusting door.
4 Tighten Torx screws (1).

3 Adjust installation depth
Adjust front door contour transitions flush up to max. 1 mm recessed, at rear with 1 mm overlap (wind noises) Rotary tumbler should engage in the center of the striker eye.
Adjust installation depth of hinged door
