Service Manual

REAR BUMPER - STEP

REMOVAL

1. Remove rear fascia.

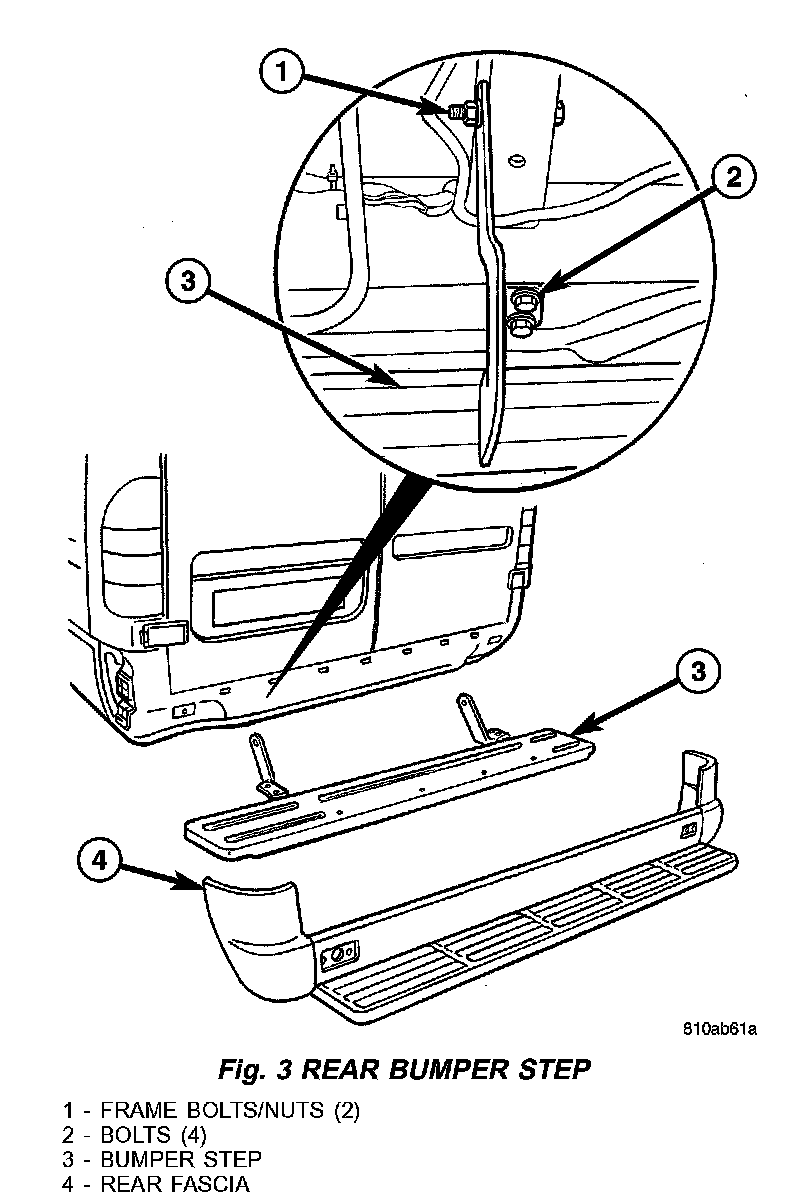

Fig. 3:

2. Remove frame bolts/nuts. (Fig. 3)
3. Remove the remaining support bolts.

INSTALLATION

1. Install bumper step and install support bolts.
2. Tighten bolts to 38 N.m (28 ft.lbs.).
3. Install frame bolts/nuts and tighten to 90 N.m (66 ft.lbs.).
4. Install fascia.
