Rear Bumper Cover / Fascia: Service and Repair

REAR FASCIA

REMOVAL

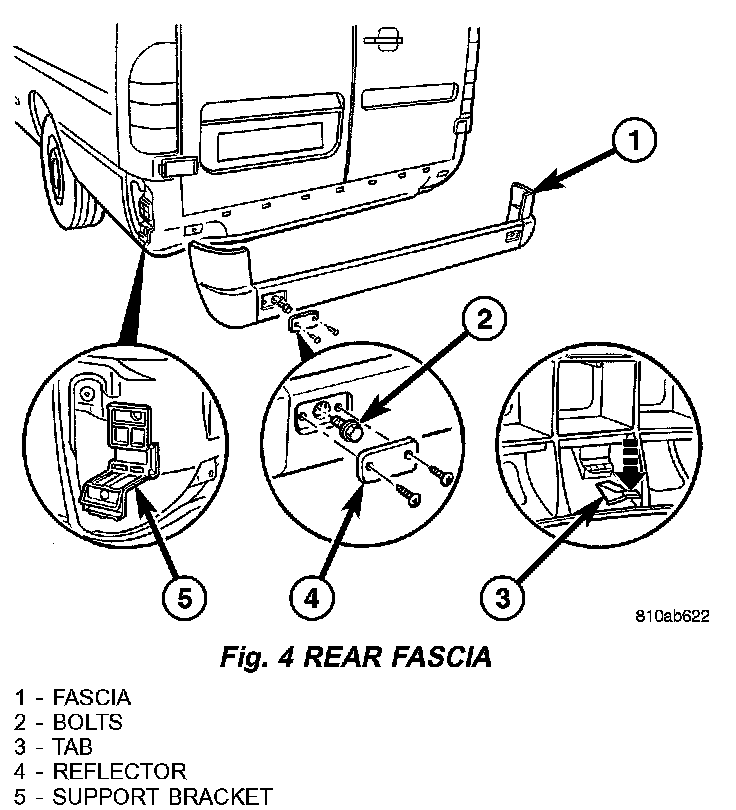

Fig. 4:

1. Remove screws and remove reflectors. (Fig. 4)
2. Remove fascia bolts.
3. Release bumper support brackets clips below end panel.
4. Press dowel pins out of and remove four plastic rivets connecting fascia to rear step, if equipped.
5. Separate the corners of the fascia from the support brackets and remove fascia.

INSTALLATION

1. Install fascia and seat the corners over the support brackets.
2. Seat bumper support brackets clips below end panel firmly.
3. Install the four plastic rivets to the bumper step, if equipped.
4. Install fascia bolts and tighten to 23 N.m (17 ft.lbs.).
5. Install reflectors and reflector screws.
