Front Bumper Cover / Fascia: Service and Repair

FRONT FASCIA

REMOVAL

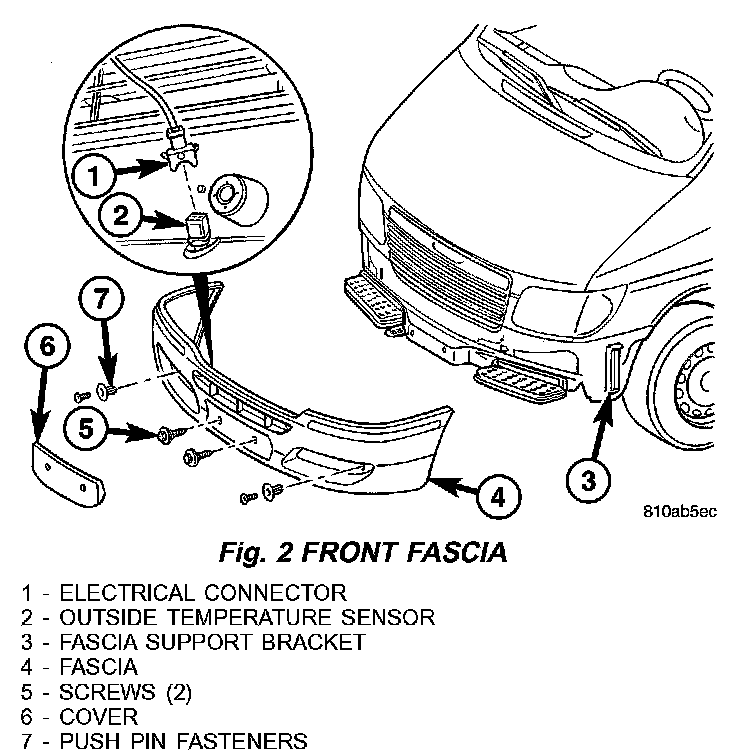

Fig. 2:

1. Remove the screws and cover.(Fig .2)
2. Remove push pin fasteners.
3. Remove fascia screws.
4. Pull bumper forward off support brackets.
5. Disconnect electrical connector.

INSTALLATION

1. Connect outside temperature sensor electrical connector.
2. Slide fascia onto the support brackets.
3. Install fascia screws and tighten to 23 N.m (17 ft.lbs.).
4. Install push pin fasteners.
5. Install cover and screws.
