Speaker: Service and Repair

REMOVAL
1. Disconnect and isolate the battery cable.
2. Remove the A-pillar trim .

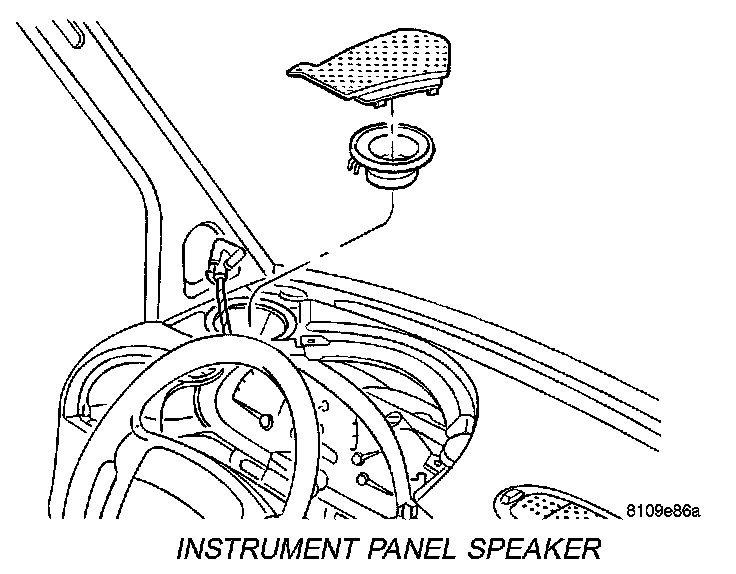

Instrument Panel Speaker:

3. Remove speaker grill.
4. Using a trim stick (C-4755 or equivalent), pry up on the speaker.
5. Disconnect electrical harness connector and remove speaker.

INSTALLATION
1. Install wire harness connector.
2. Place speaker into instrument panel.
3. Install speaker grille.
4. Install the A-pillar trim.
5. Connect the battery negative cable.
