Door Sensor/Switch (For Alarm): Service and Repair
Intrusion SensorREMOVAL
1. Disconnect and isolate the battery negative cable.

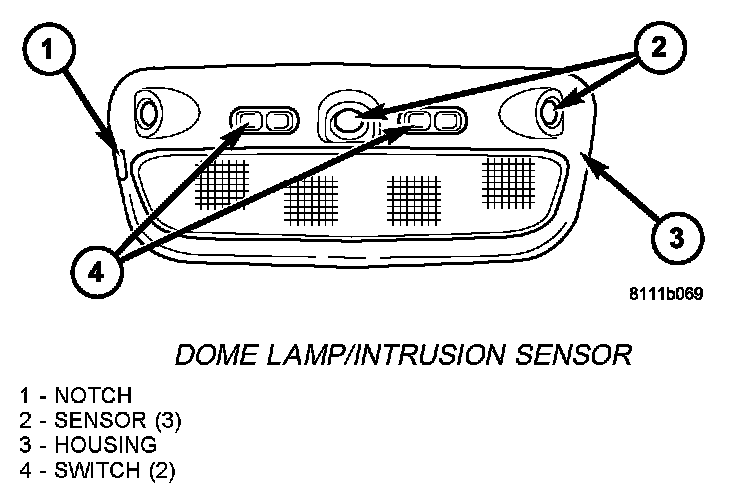

Dome Lamp/Intrusion Sensor:
2. Insert the tip of a small flat-bladed screwdriver into the notch on one edge of the dome lamp/intrusion sensor unit housing to depress the retainer clip and pull that edge of the lamp away from its mounting location.
3. Pull the dome lamp/intrusion sensor unit from its mounting location far enough to access and disconnect the vehicle wire harness from the lamp connector receptacle.
4. Remove the dome lamp/intrusion sensor unit from its mounting location.
INSTALLATION
1. Position the dome lamp/intrusion sensor unit to its mounting location.
2. Reconnect the vehicle wire harness connector to the dome lamp/intrusion sensor unit connector receptacle.
3. Position the edge of the dome lamp/intrusion sensor unit housing opposite from the retainer clip into the mounting hole.
4. Push firmly and evenly on the notched edge of the dome lamp/intrusion sensor unit housing until the retainer clip latches into place.
5. Connect the battery negative cable.
