P2606

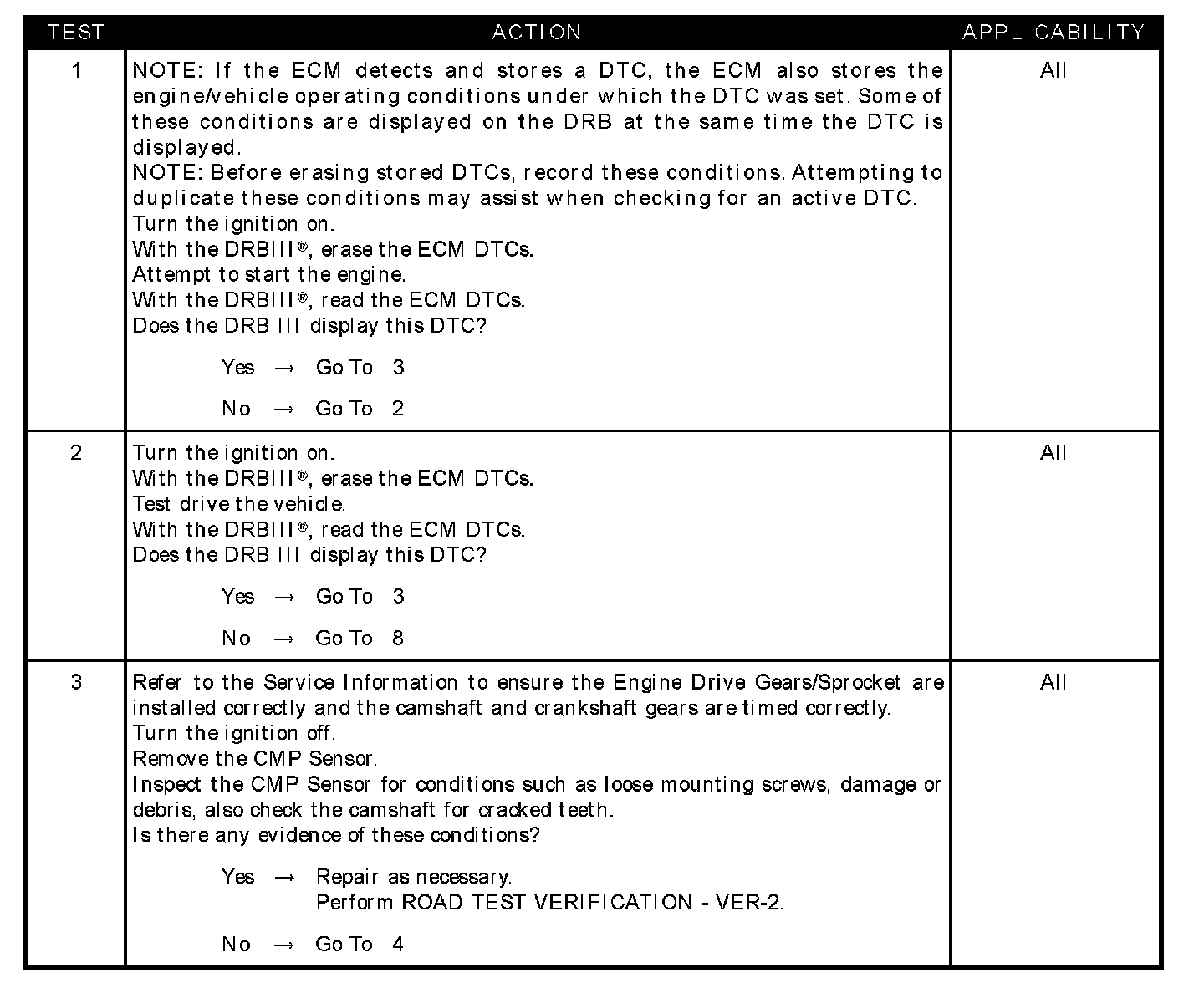

Test 1 - Test 3:

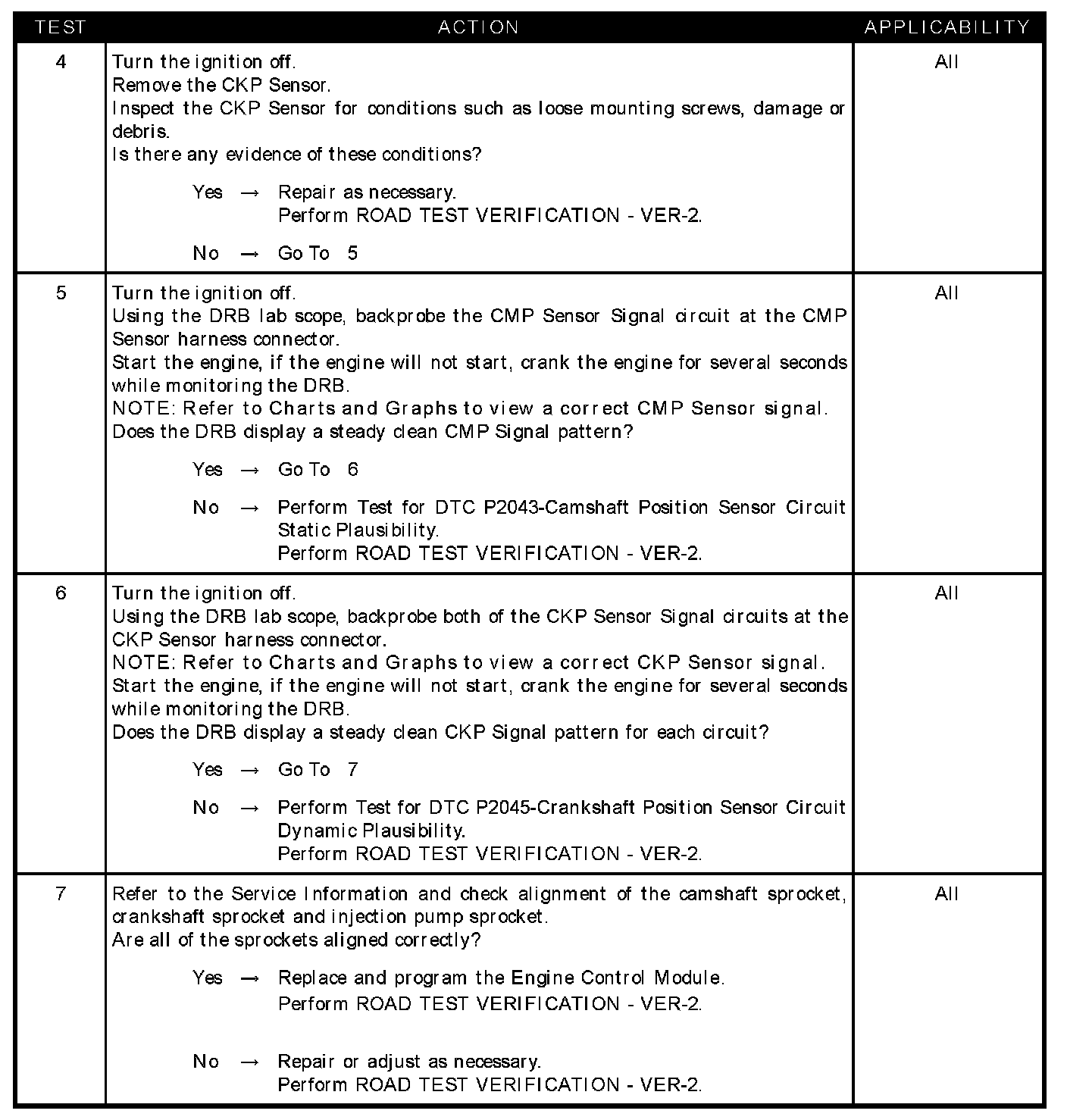

Test 4 - Test 7:

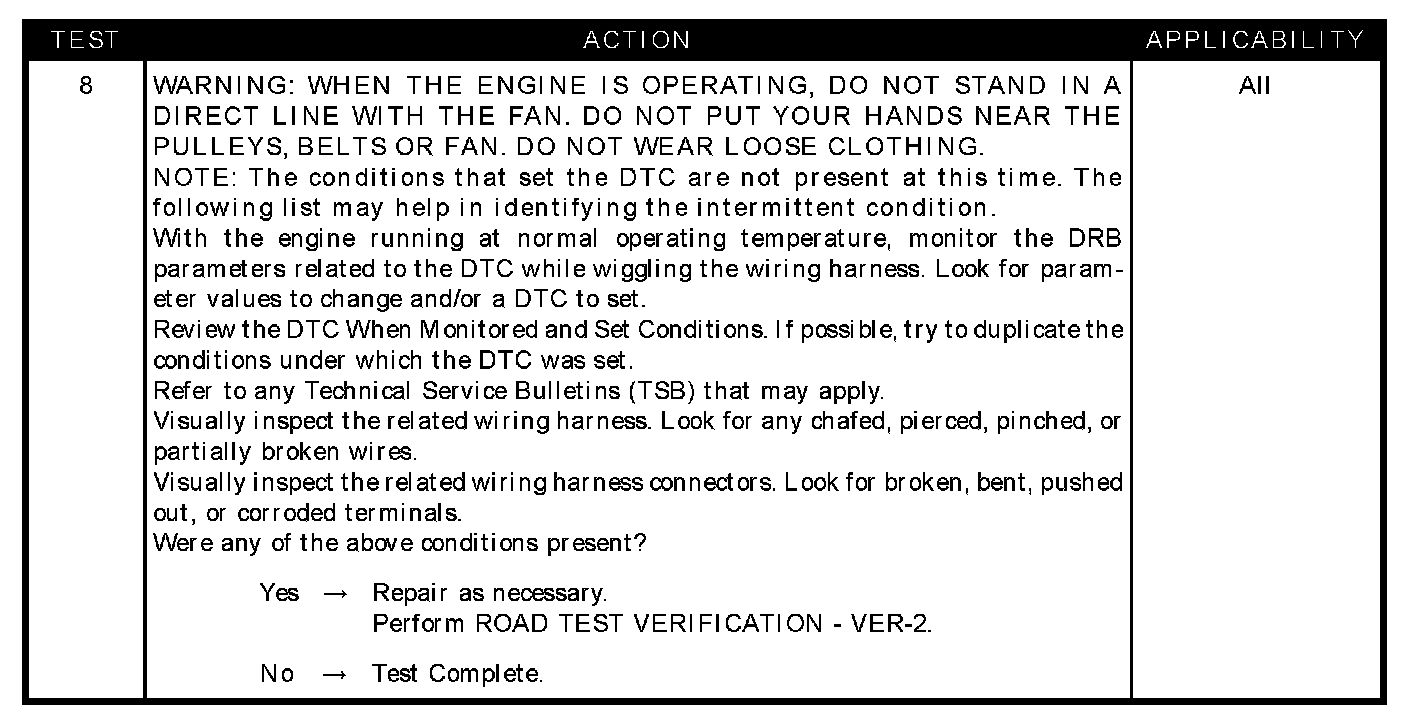

Test 8:

SYMPTOM
P2606-CMP/CKP SYNCHRONIZATION ERROR

POSSIBLE CAUSES
- Camshaft position sensor signal problem
- Crankshaft position sensor signal problem
- Damaged CKP sensor
- Damaged CMP sensor or camshaft
- Engine control module
- Gear alignment problem
- Intermittent condition
