EGR Valve Signal Circuit Shorted to Ground

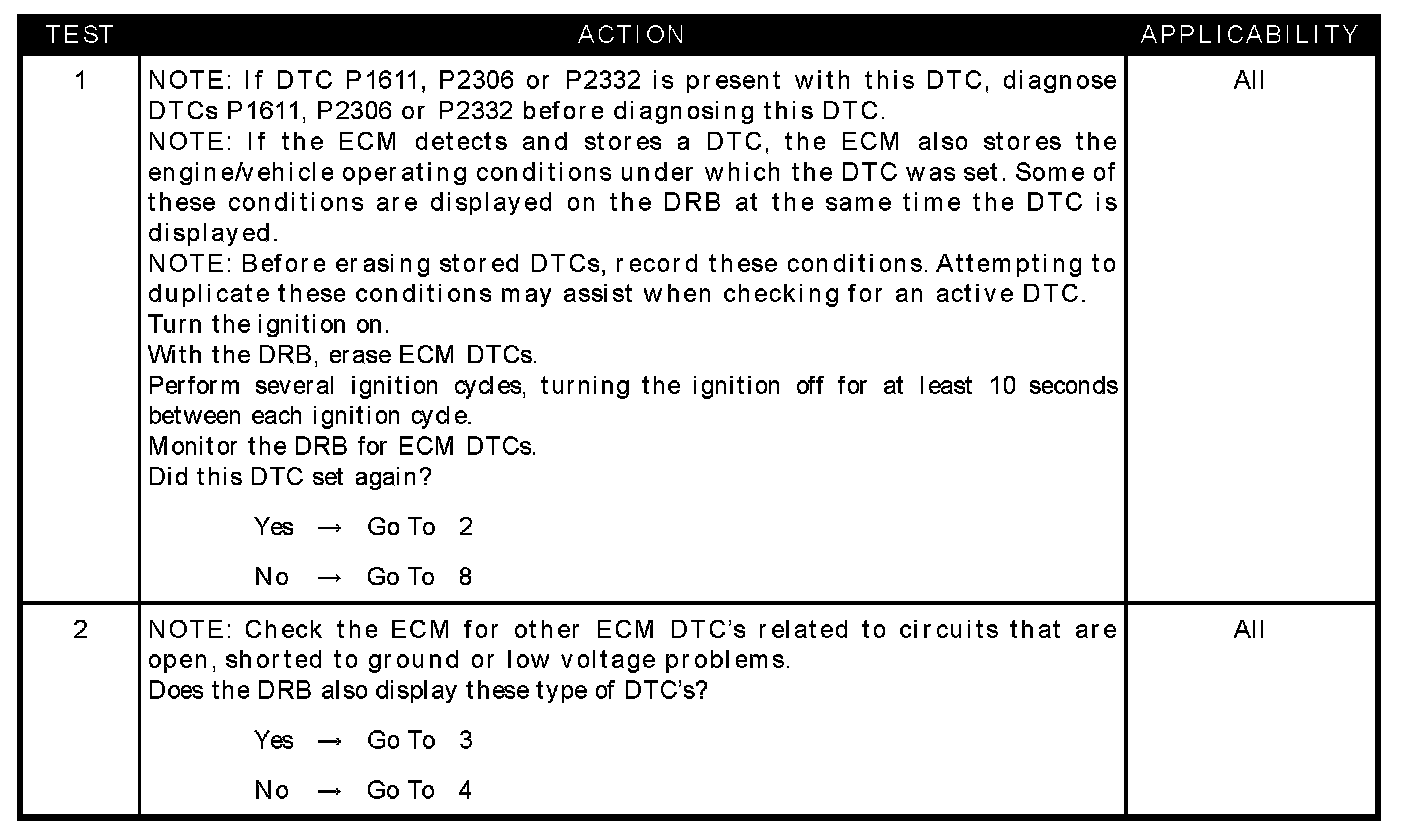

Test 1 - Test 2:

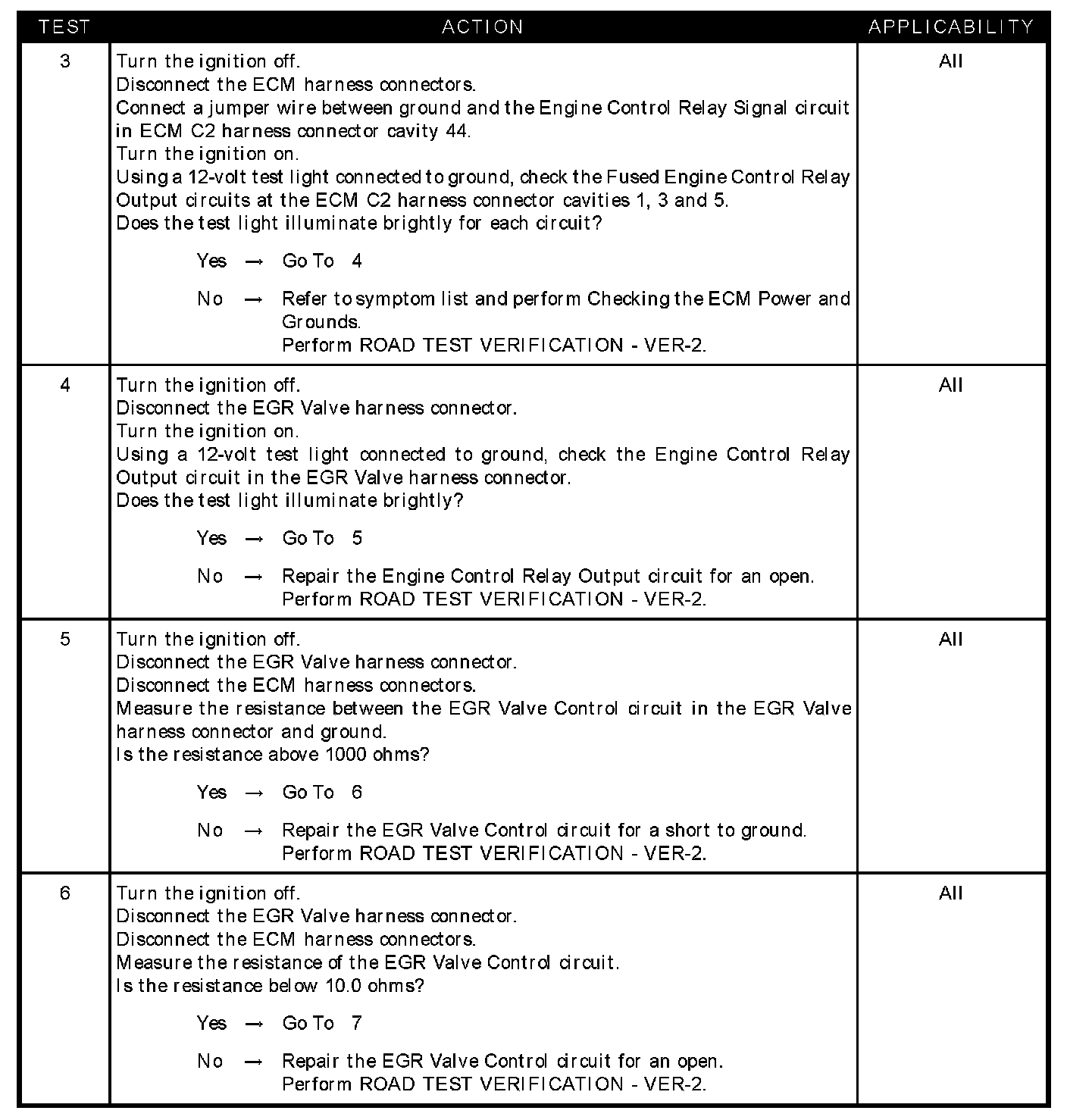

Test 3 - Test 6:

Test 7 - Test 8:

SYMPTOM
P2527-EGR VALVE SIGNAL CIRCUIT SHORTED TO GROUND

TEST NOTE
This symptom is diagnosed using the test P2511-EGR VALVE SIGNAL CIRCUIT SHORTED TO GROUND.

POSSIBLE CAUSES
- Checking the engine control relay system
- Intermittent condition
- Engine control relay output circuit open
- EGR valve control circuit shorted to ground
- EGR valve control circuit open
- EGR solenoid
- Engine control module
