P2510

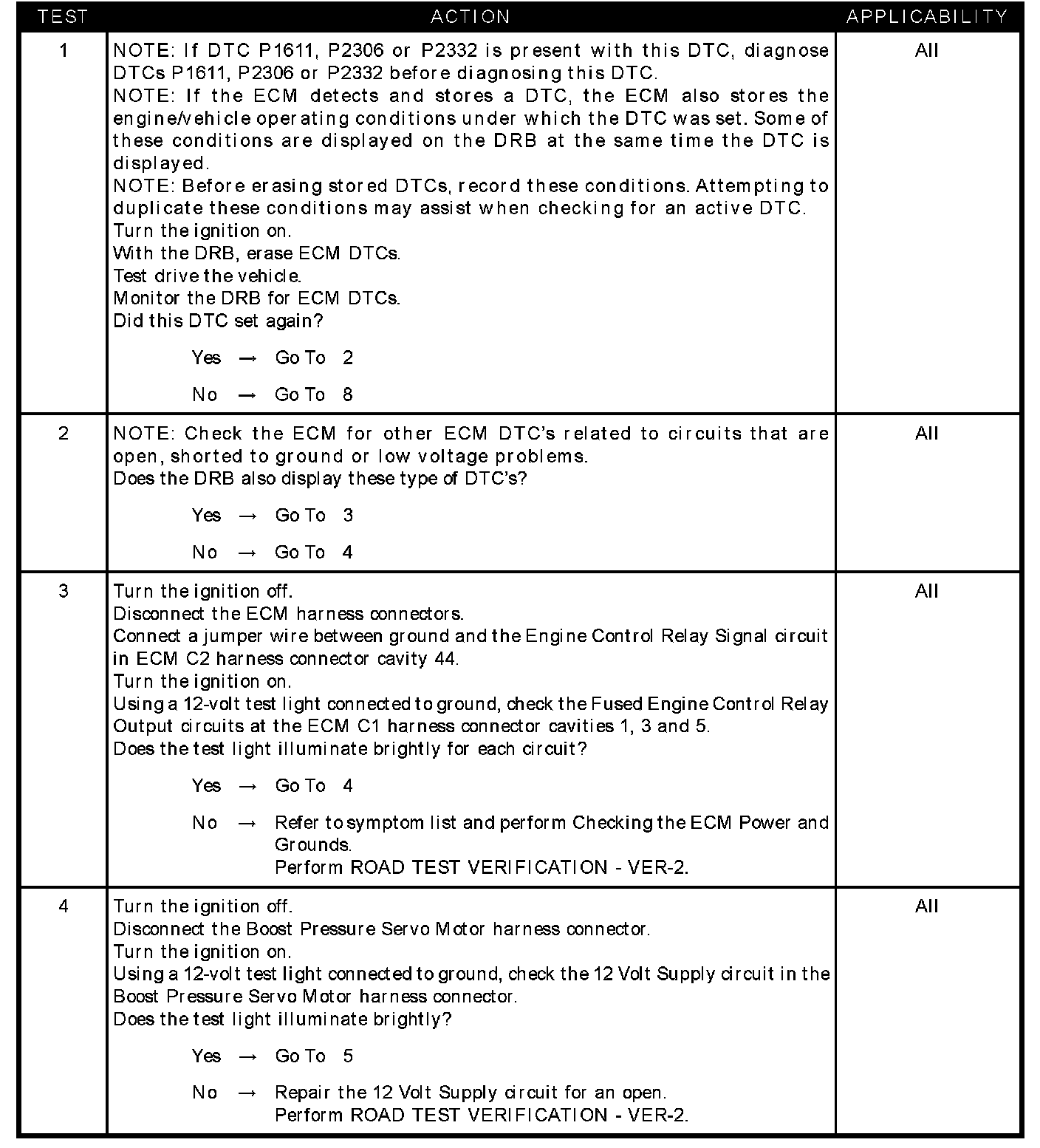

Test 1 - Test 4:

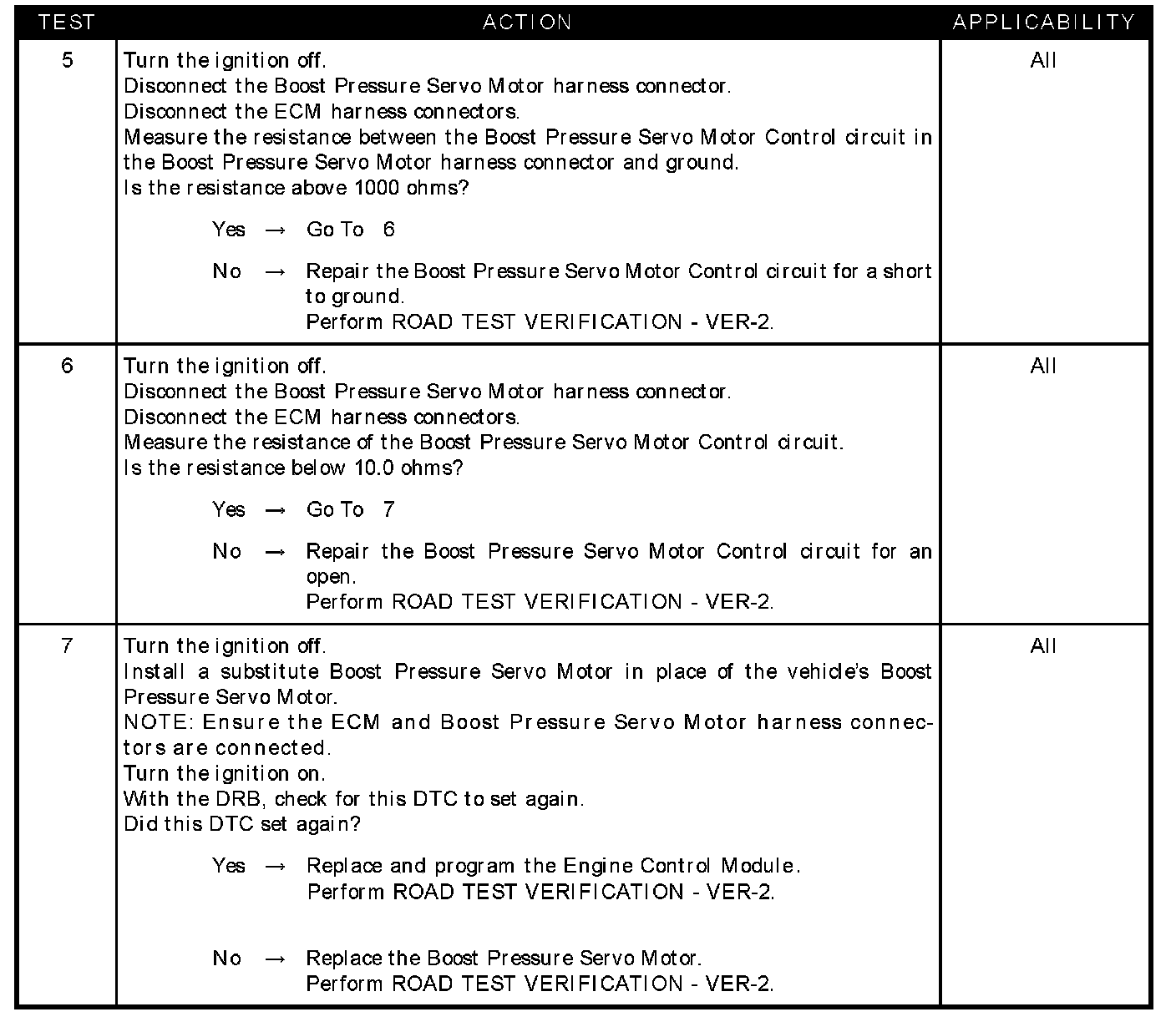

Test 5 - Test 7:

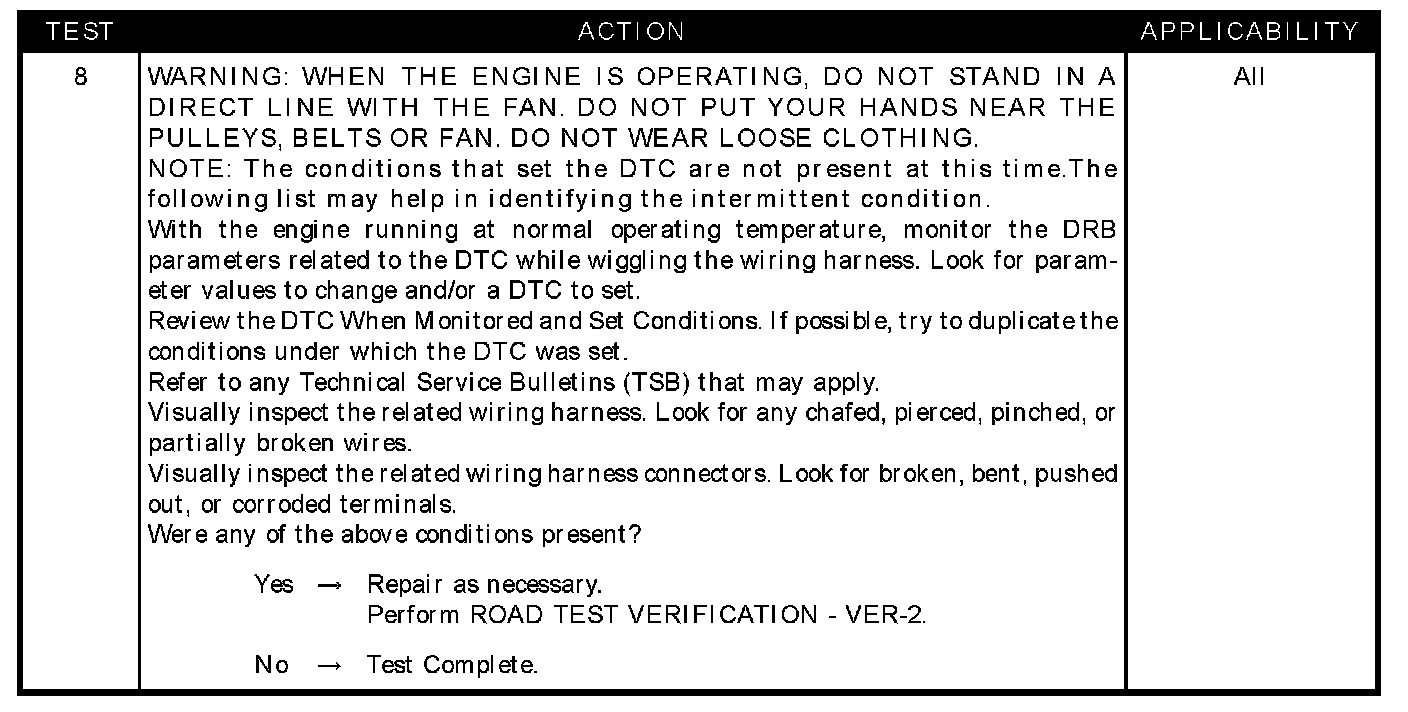

Test 8:

SYMPTOM
P2510-BOOST PRESSURE SERVO MOTOR SHORT TO GROUND

TEST NOTE
This symptom is diagnosed using the test P2111-BOOST PRESSURE SERVO MOTOR CIRCUIT SHORT TO GROUND.

POSSIBLE CAUSES
- Checking the engine control relay system
- Intermittent condition
- 12 volt supply circuit open
- Boost pressure servo motor control circuit shorted to ground
- Boost pressure servo motor control open
- Boost pressure servo motor
- Engine control module
