P2351

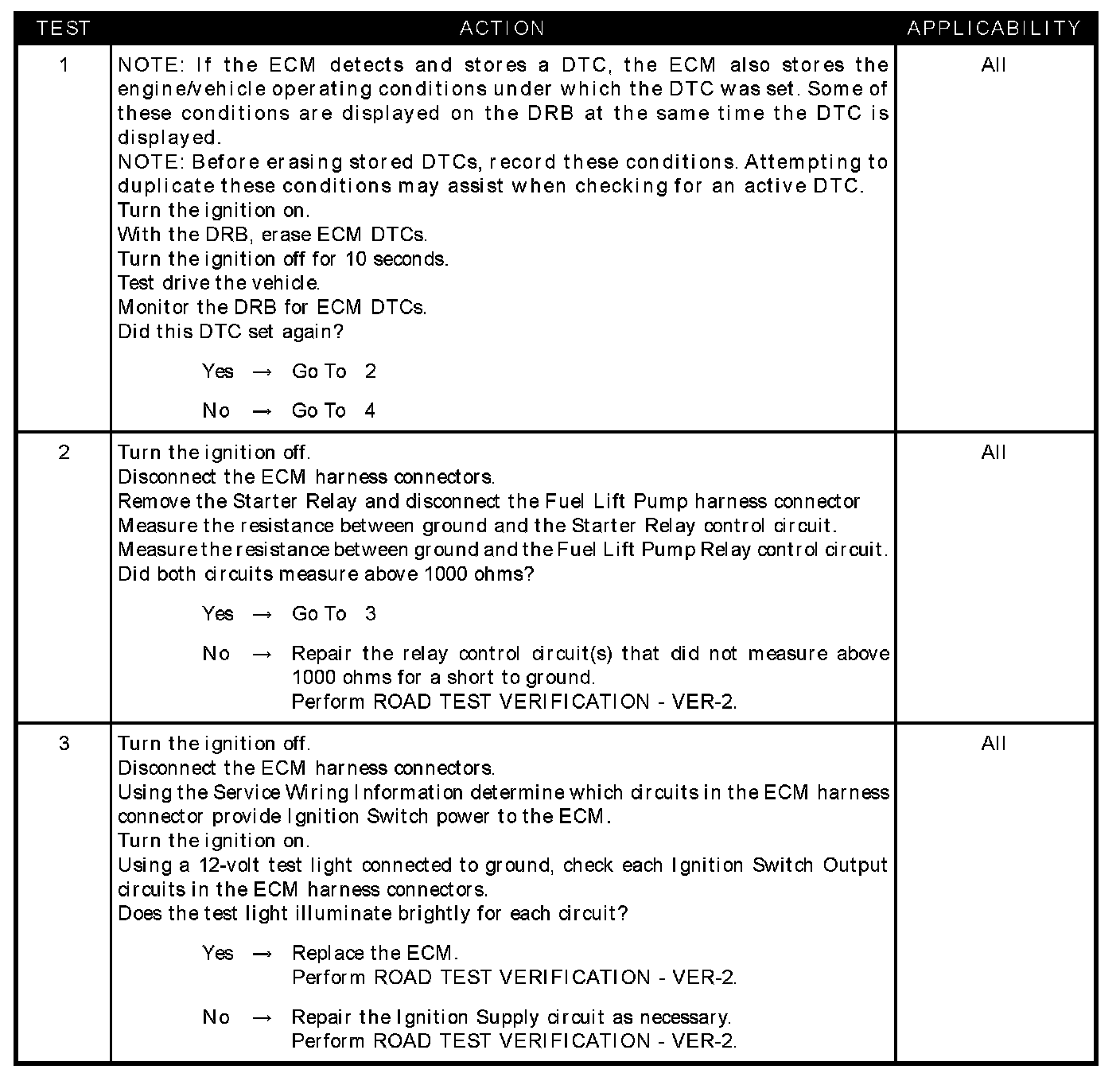

Test 1 - Test 3:

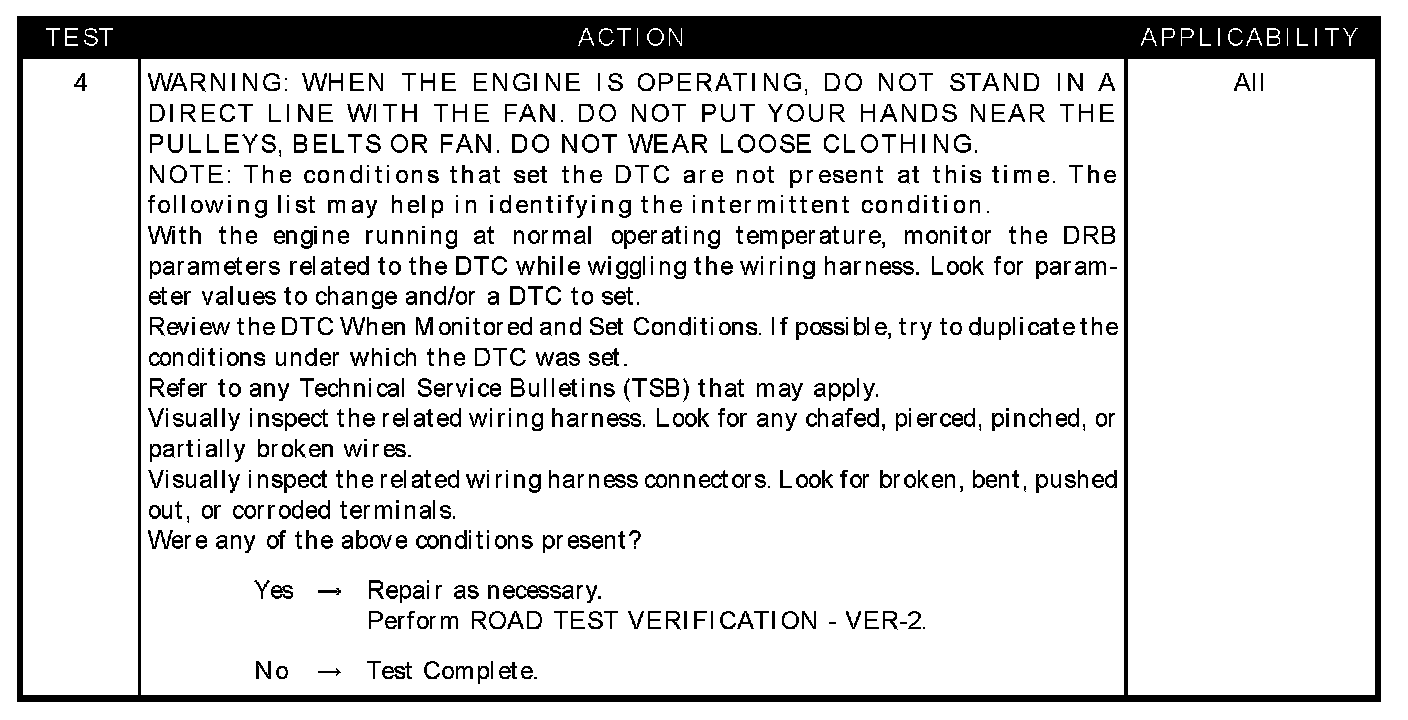

Test 4:

SYMPTOM
P2351-ECM SUPPLY VOLTAGE TOO LOW

POSSIBLE CAUSES
- ECM
- ECM ignition circuit open
- Starter or lift pump relay circuit(s) shorted to ground
- Intermittent condition
