CAN BUS Circuit Interuption

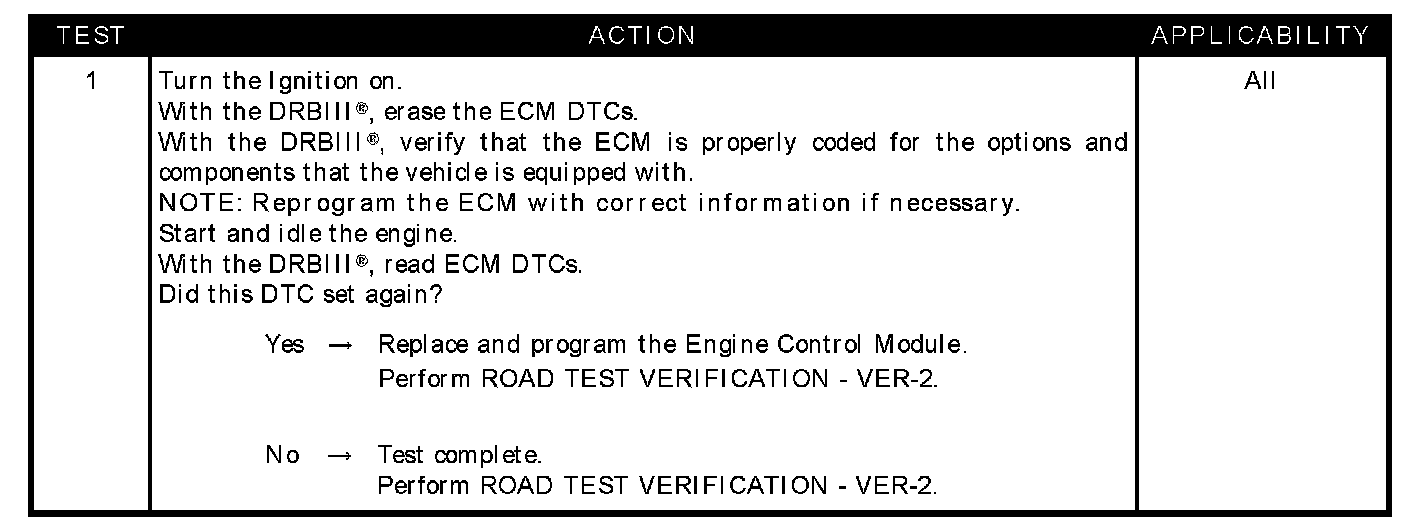

Test 1:






SYMPTOM
P2347-CAN BUS CIRCUIT INTERUPTION

TEST NOTE
This symptom is diagnosed using the test P2347-AUTOMATIC TRANSMISSION CODED AS MANUAL TRANSMISSION.

POSSIBLE CAUSES
- Engine control module
- Verify ECM programming
