Home >> Freightliner Truck >> 2006 >> Sprinter 3500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P2339 >> ECM Invalid Coding

ECM Invalid Coding

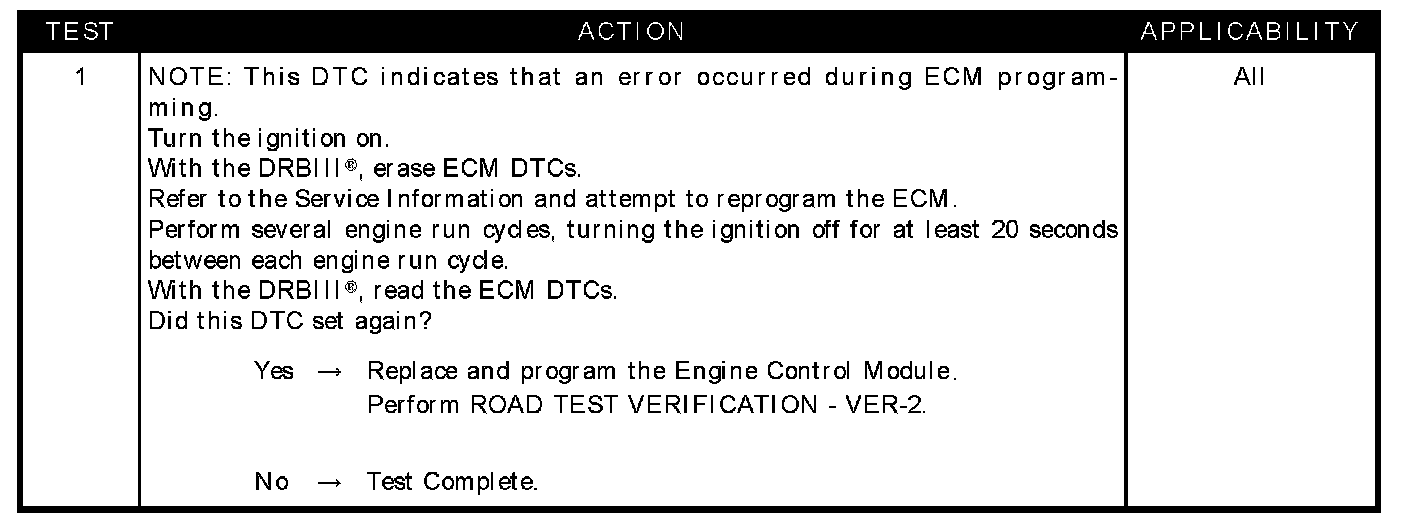

Test 1:






SYMPTOM
P2339-ECM INVALID CODING

TEST NOTE
This symptom is diagnosed using the test P2339-ECM CHECKSUM ERROR #1.

POSSIBLE CAUSES
- Engine control module
