TCM Message Error

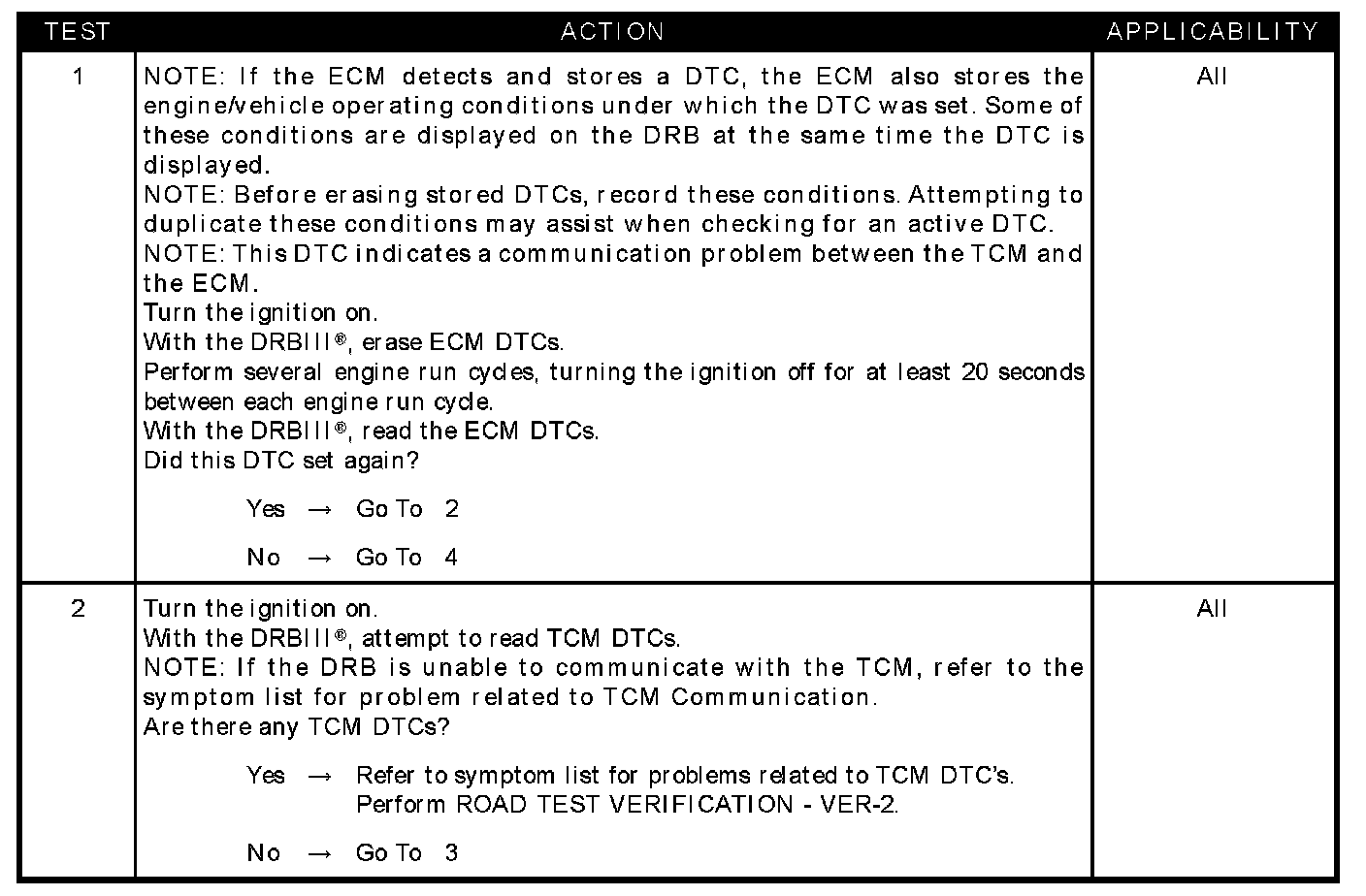

Test 1 - Test 2:

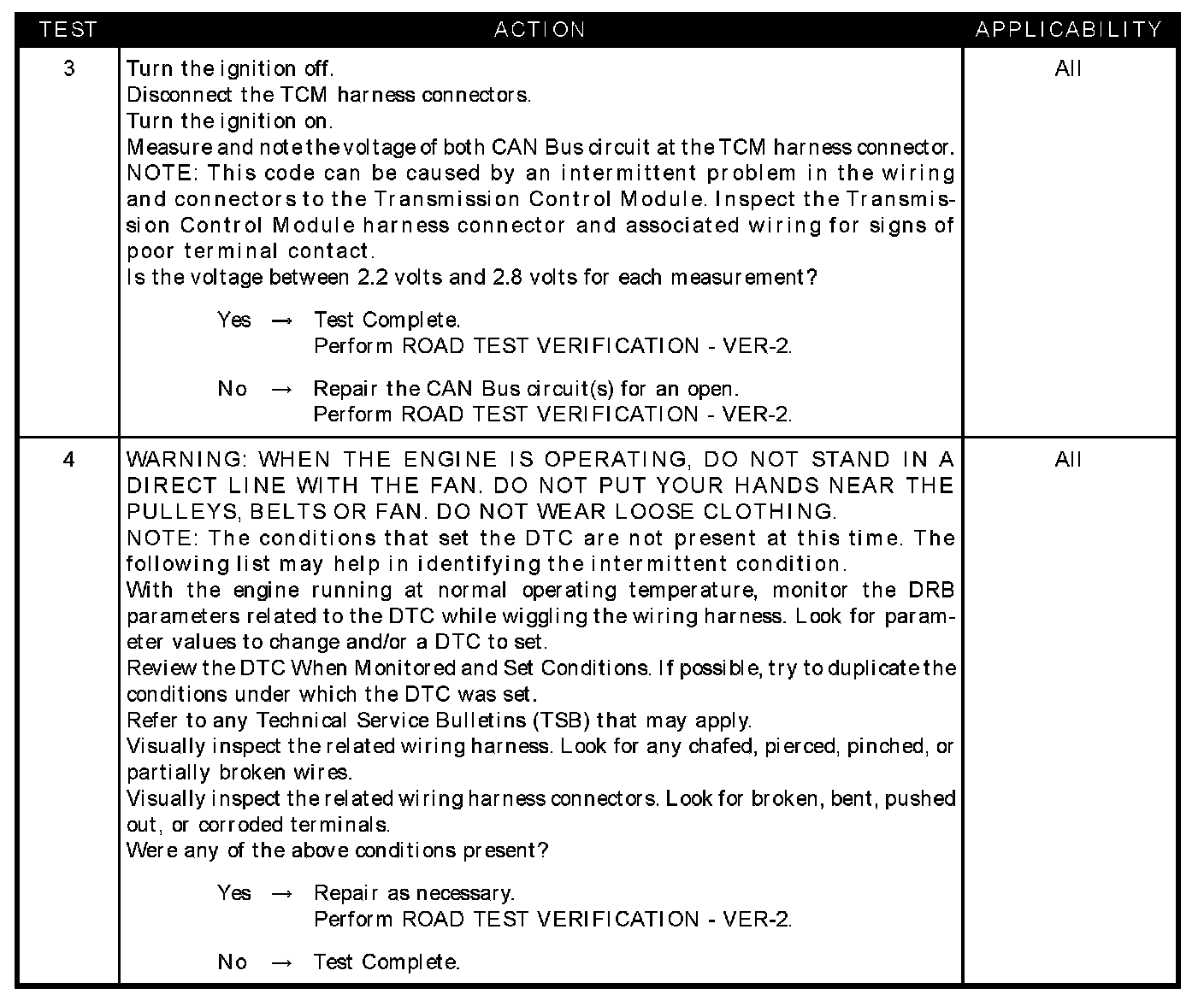

Test 3 - Test 4:

SYMPTOM
P2258-TCM MESSAGE ERROR

TEST NOTE
This symptom is diagnosed using the test P2211-ETC CAN MESSAGE MISSING OR INCORRECT.

POSSIBLE CAUSES
- CAN BUS circuits open
- Transmission control module
- Intermittent condition
- TCM DTCs
