P2252

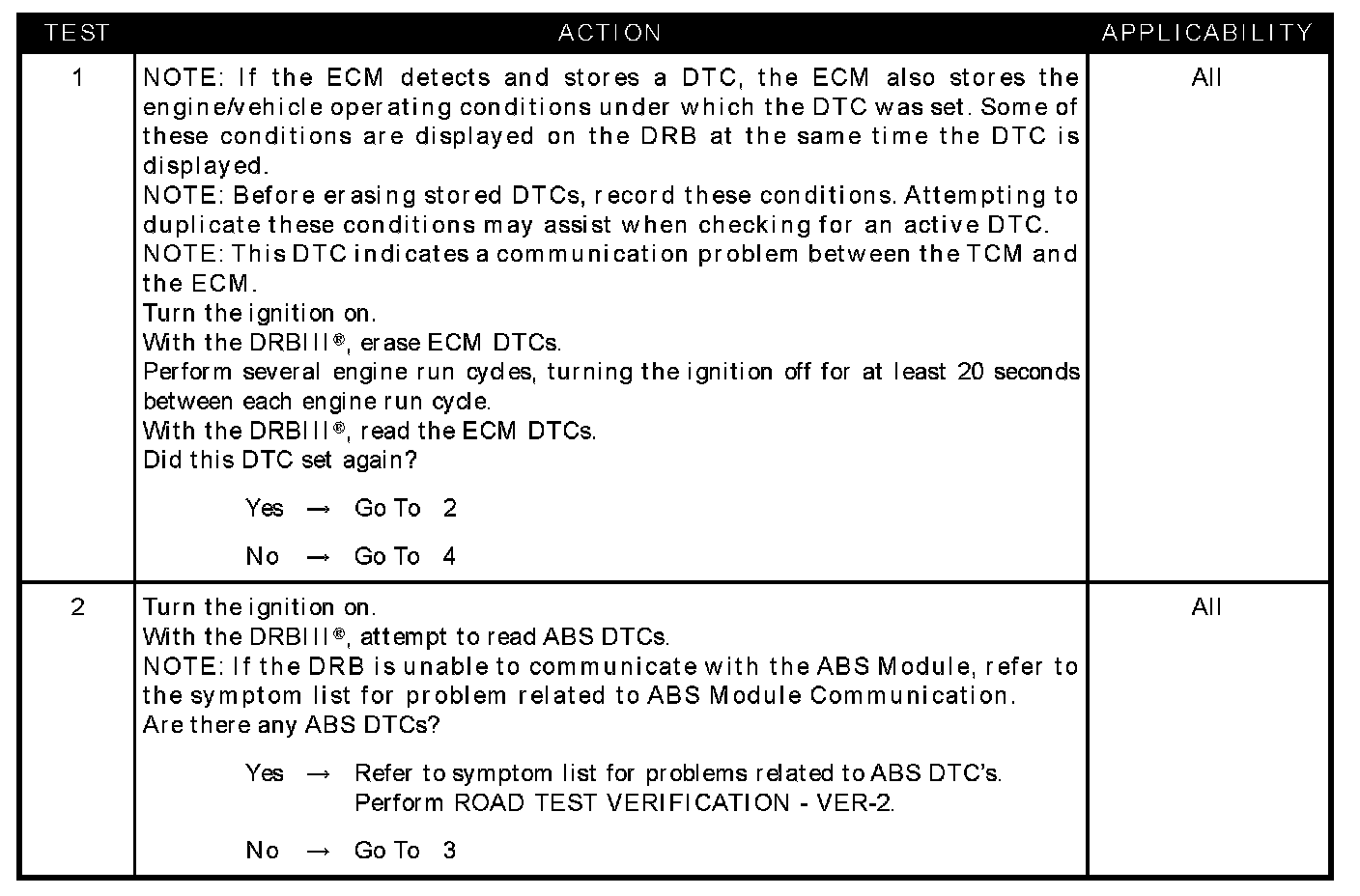

Test 1 - Test 2:

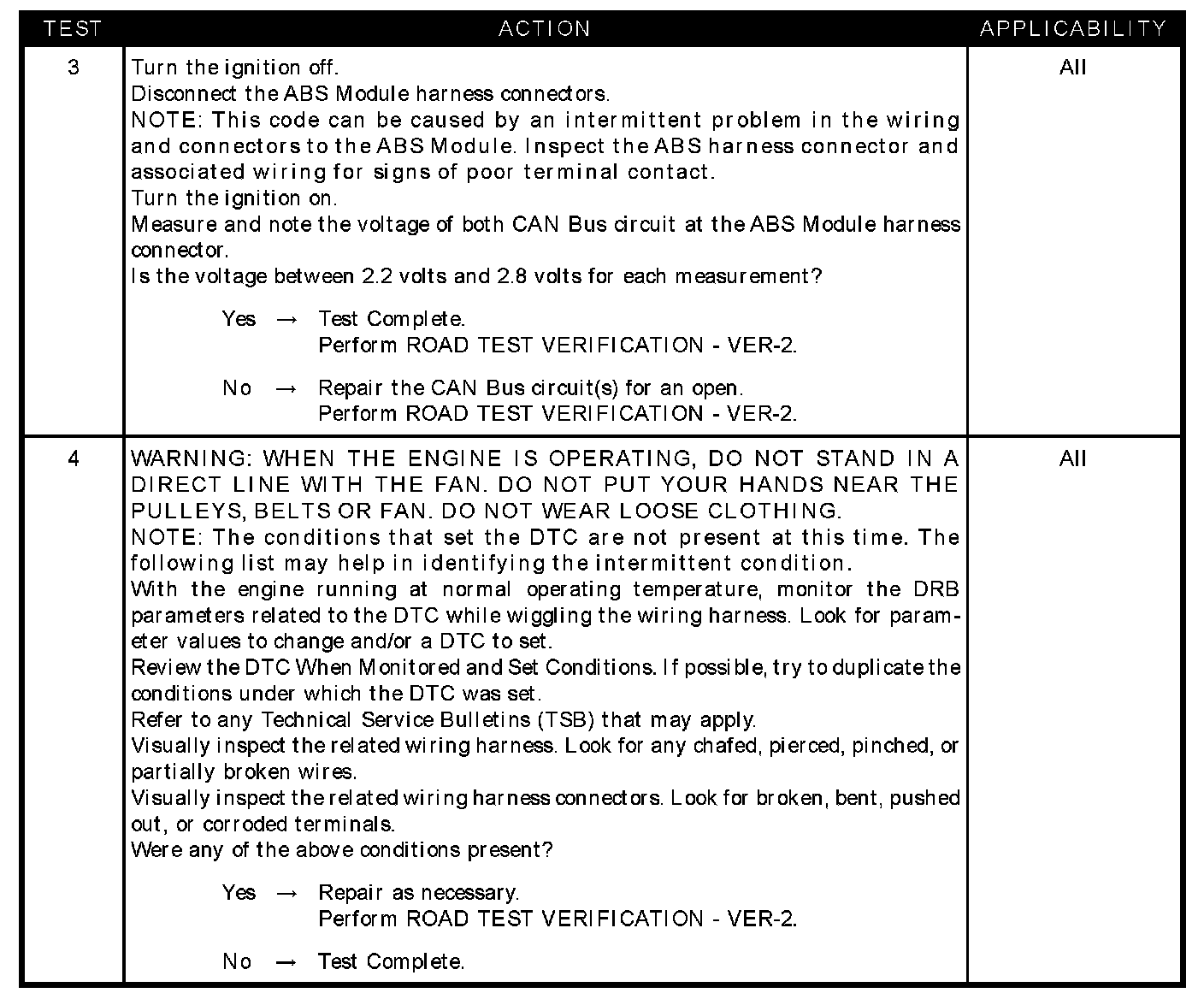

Test 3 - Test 4:

SYMPTOM
P2252-LATERAL ACCELERATOR SENSOR PLAUSIBILITY

TEST NOTE
This symptom is diagnosed using the test P2210-ESM CAN MESSAGE MISSING OR INCORRECT.

POSSIBLE CAUSES
- ABS module
- CAN BUS circuits open
- Intermittent condition
- ABS DTCs
