ABS Steering Angle Sensor CAN Message Implausible 2

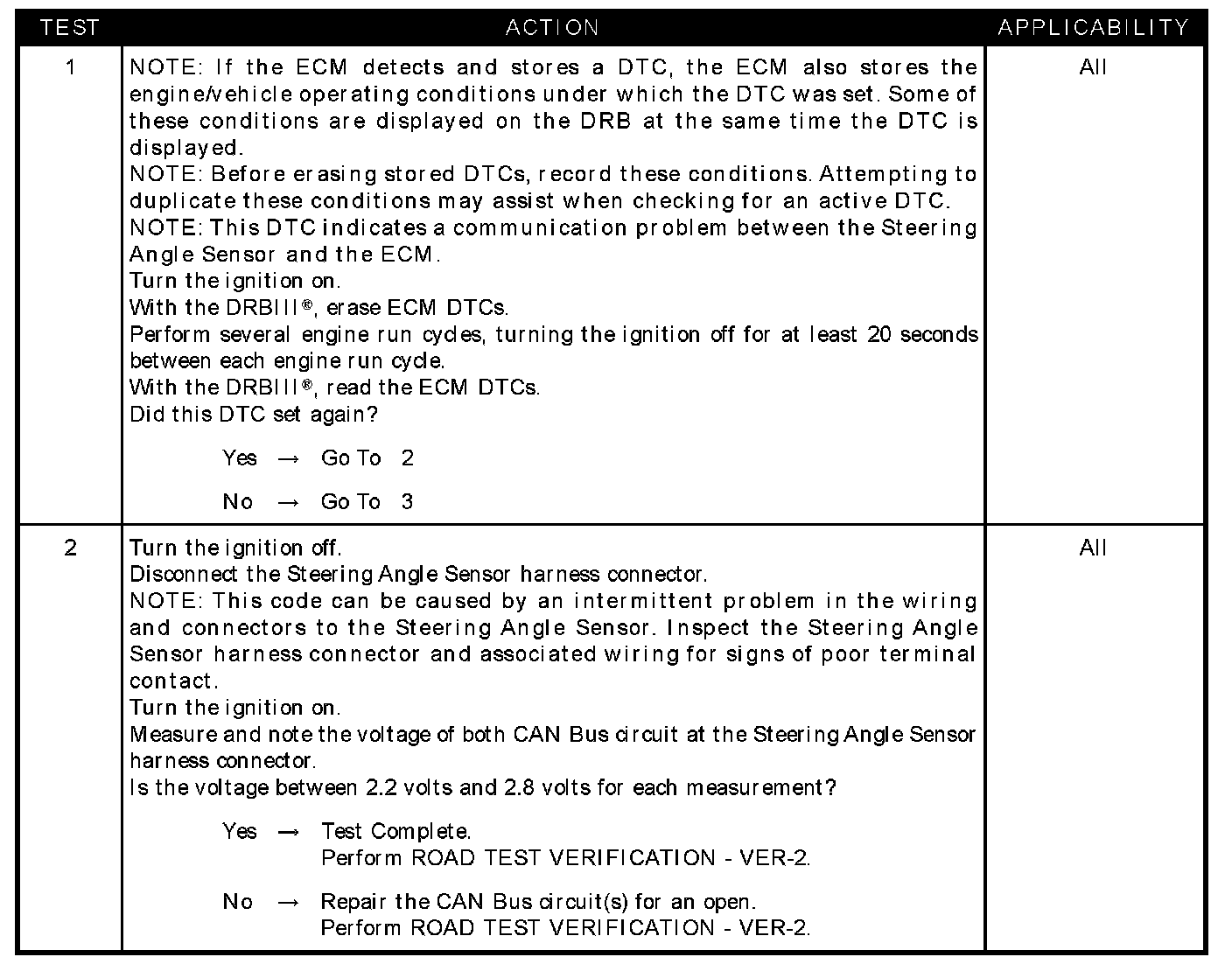

Test 1 - Test 2:

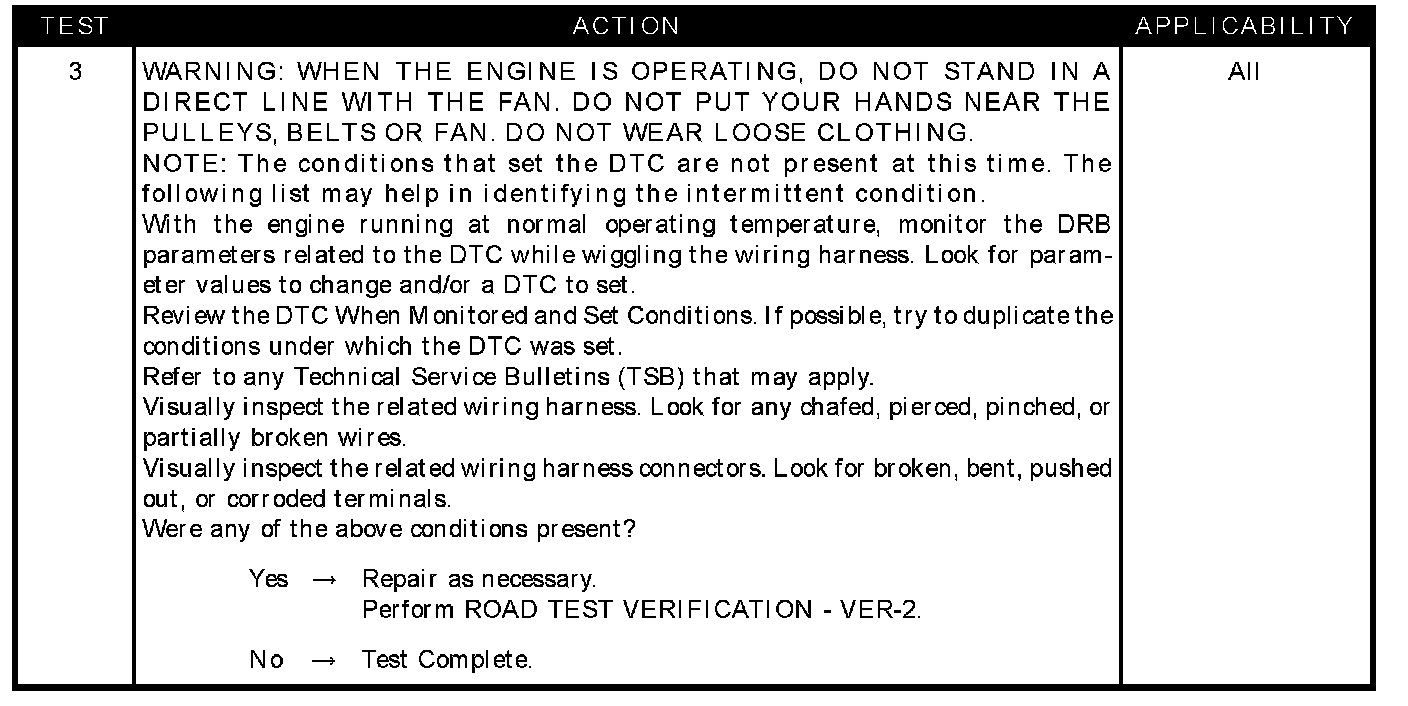

Test 3:

SYMPTOM
P2240-ABS STEERING ANGLE SENSOR CAN MESSAGE IMPLAUSIBLE 2

TEST NOTE
This symptom is diagnosed using the test P2240-ABS STEERING ANGLE SENSOR CAN MESSAGE IMPLAUSIBLE 1.

POSSIBLE CAUSES
- CAN BUS circuits open
- Steering angle sensor
- Intermittent condition
