P2201

Test 1 - Test 2:

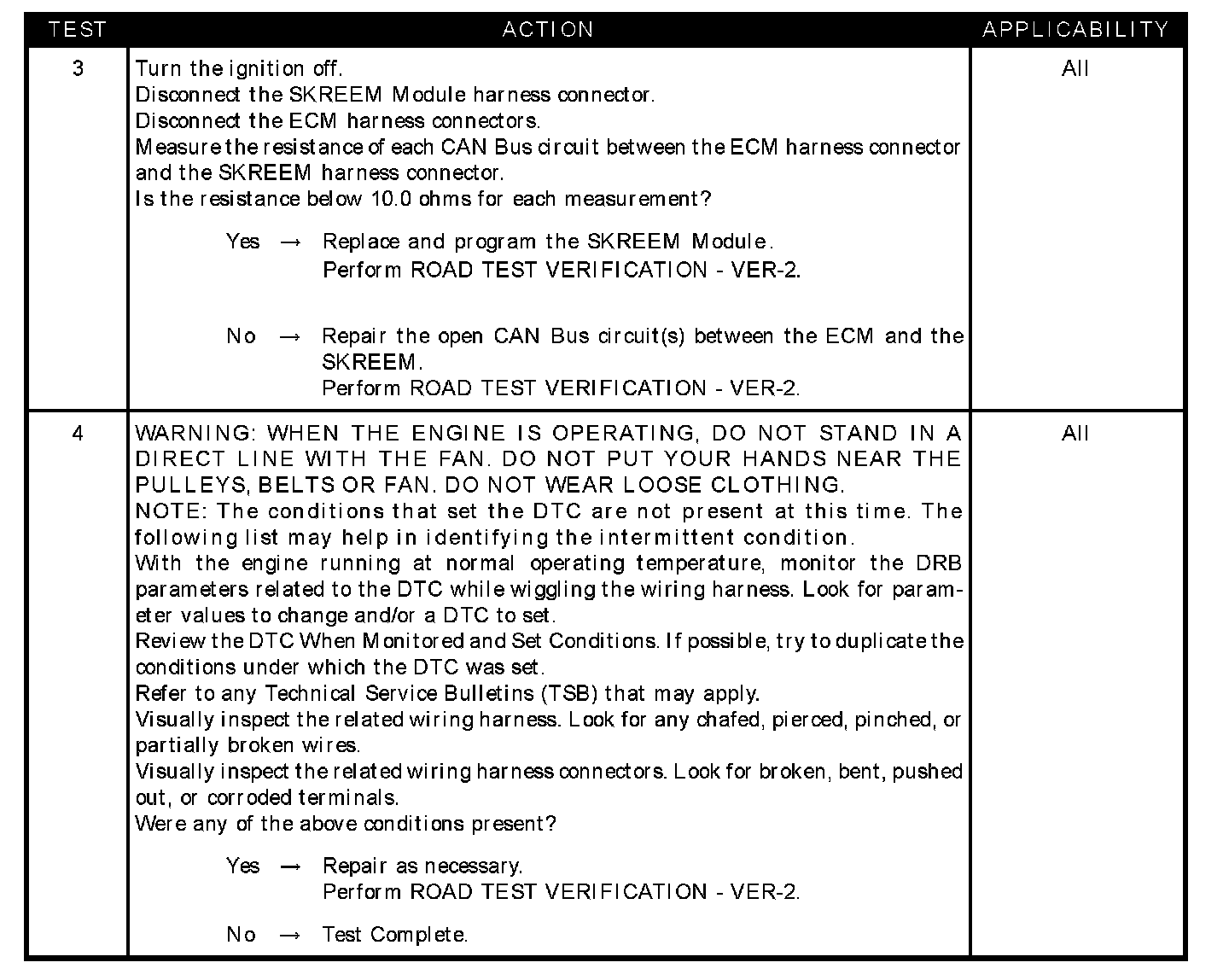

Test 3 - Test 4:

SYMPTOM
P2201-IMMOBILIZER CAN MESSAGE ERROR

TEST NOTE
This symptom is diagnosed using the test P1630-IMMOBILIZER.

POSSIBLE CAUSES
- Checking SKREEM DTC's
- Open CAN BUS circuits
- SKREEM module
- Intermittent condition
