P2198

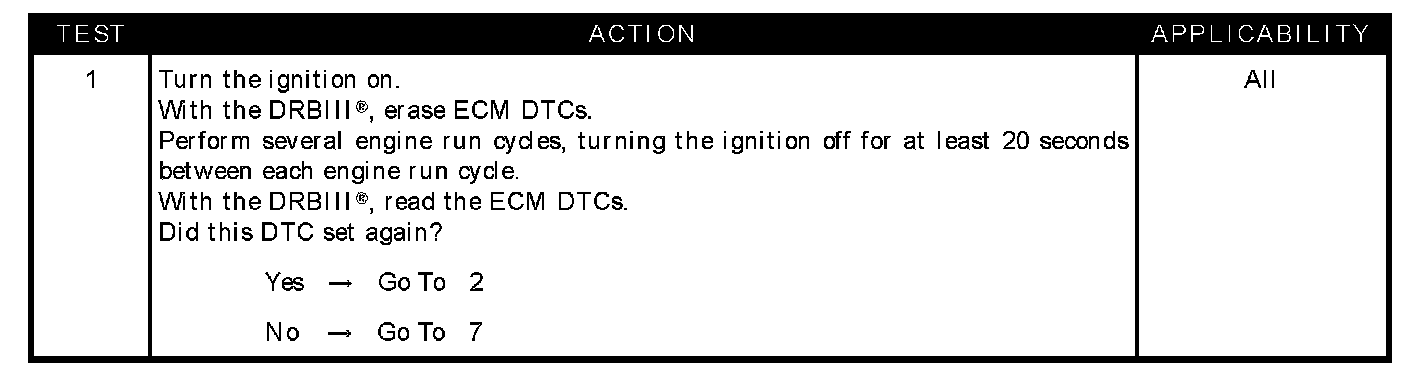

Test 1:

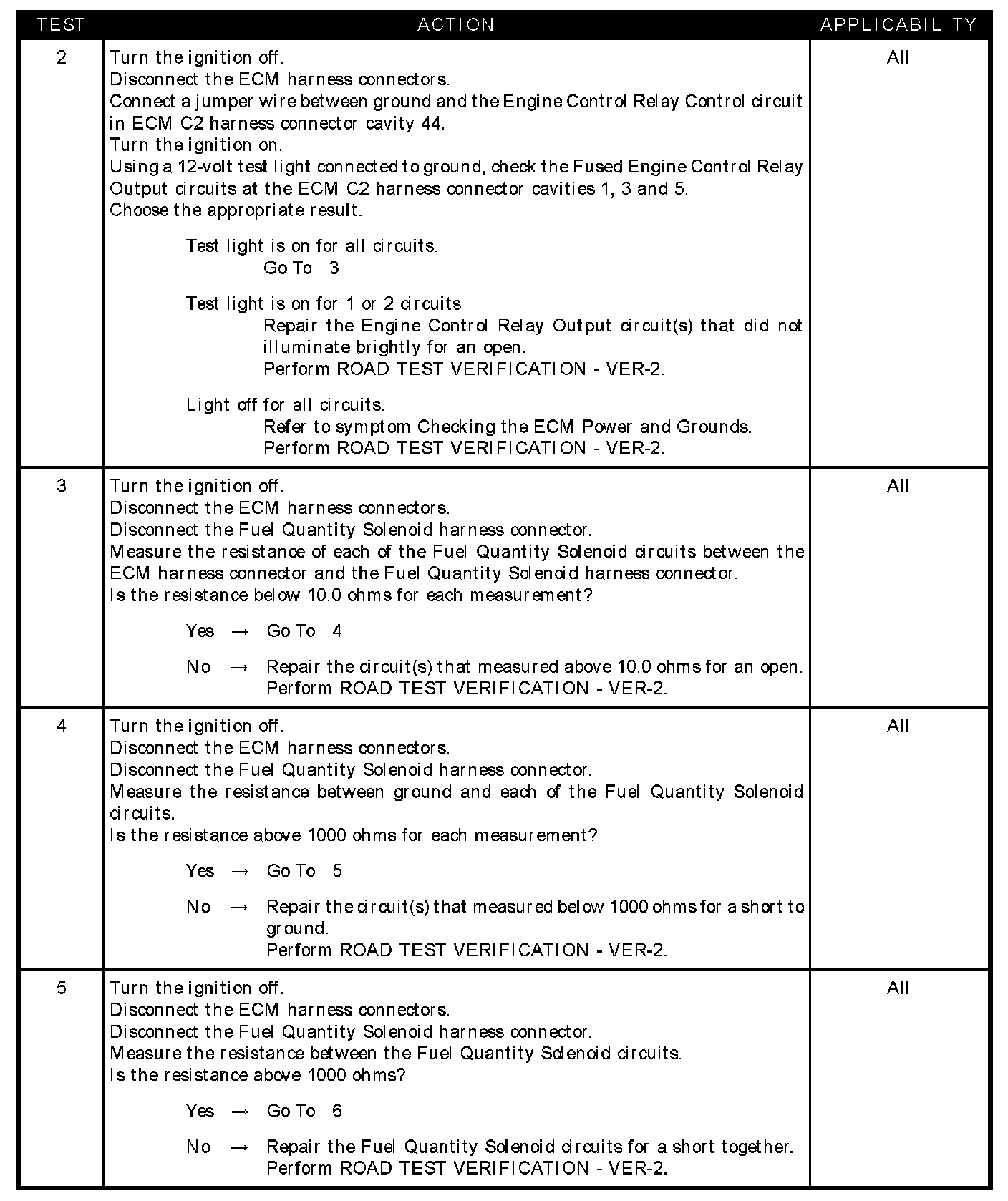

Test 2 - Test 5:

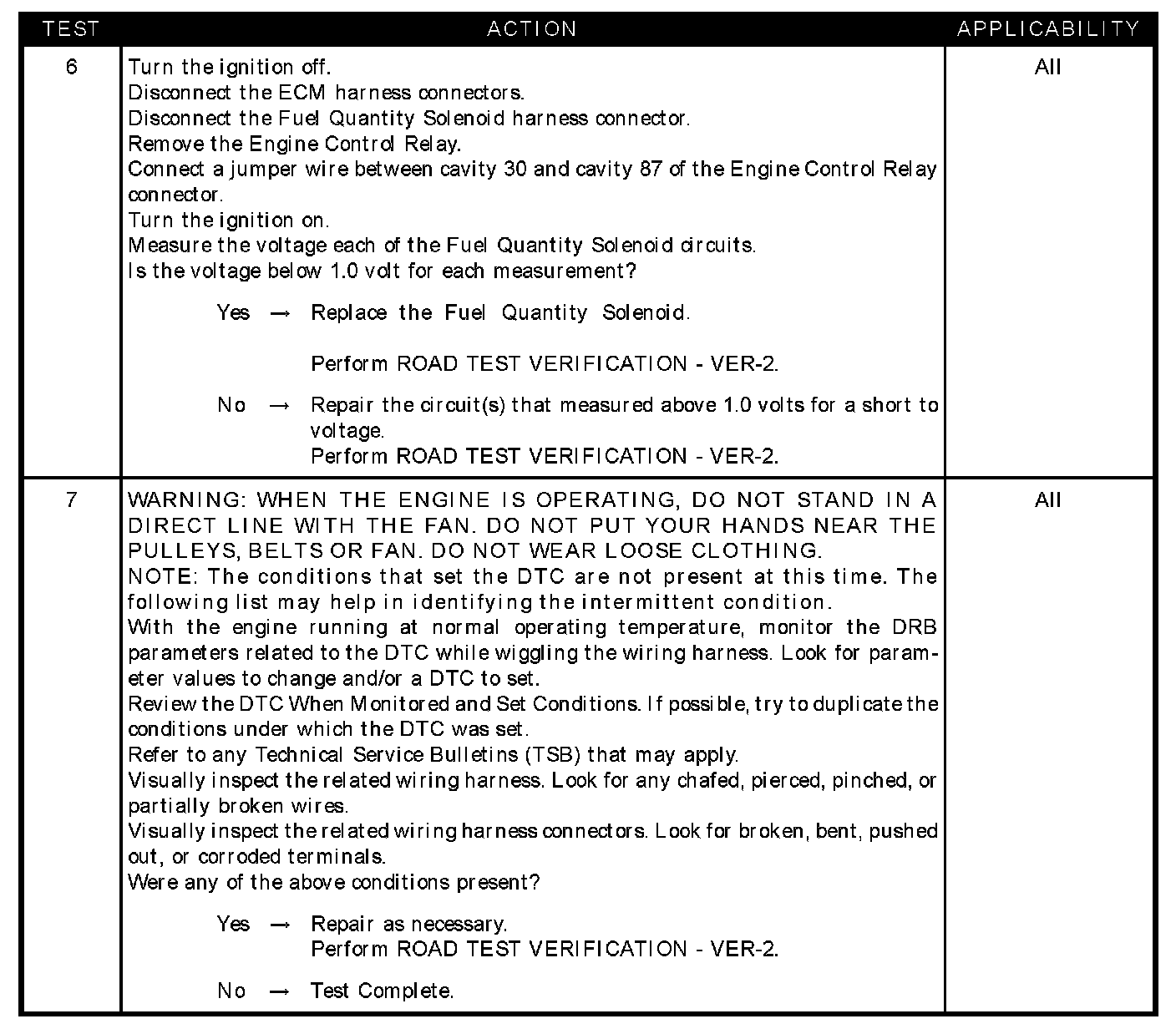

Test 6 - Test 7:

SYMPTOM
P2198-FUEL QUANTITY SOLENOID SHORT TO VOLTAGE

TEST NOTE
This symptom is diagnosed using the test P2197-FUEL QUANTITY SOLENOID OPEN CIRCUIT.

POSSIBLE CAUSES
- Checking ECM power and grounds
- Checking the engine control relay system
- Fuel quantity solenoid
- Fuel quantity solenoid circuit(s) shorted to ground
- Fuel quantity solenoid circuit(s) shorted to voltage
- Fuel quantity solenoid circuit(s) shorted together
- Fuel quantity solenoid open circuit(s)
- Intermittent condition
