Glow Plug Control Module Fault

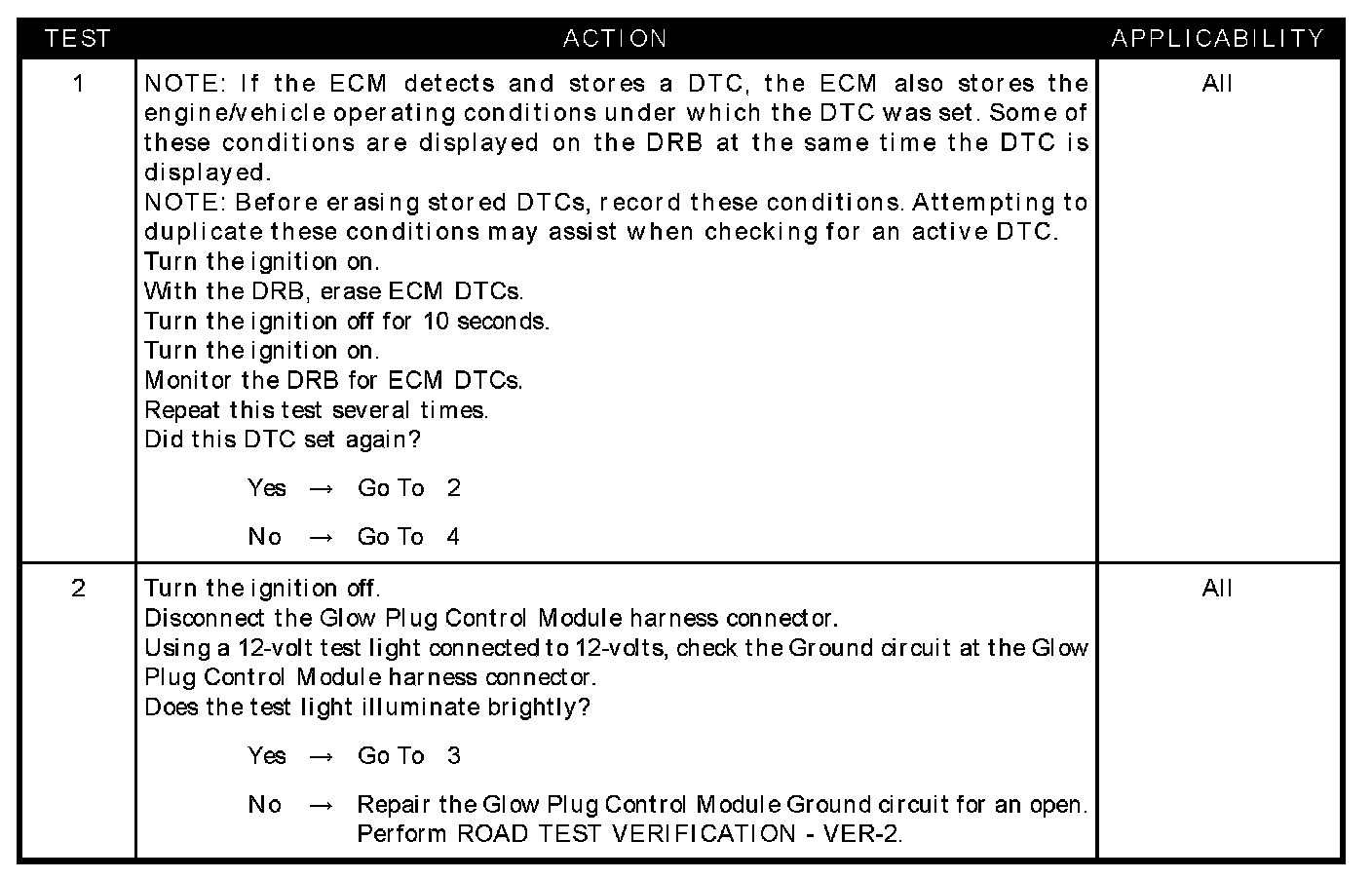

Test 1 - Test 2:

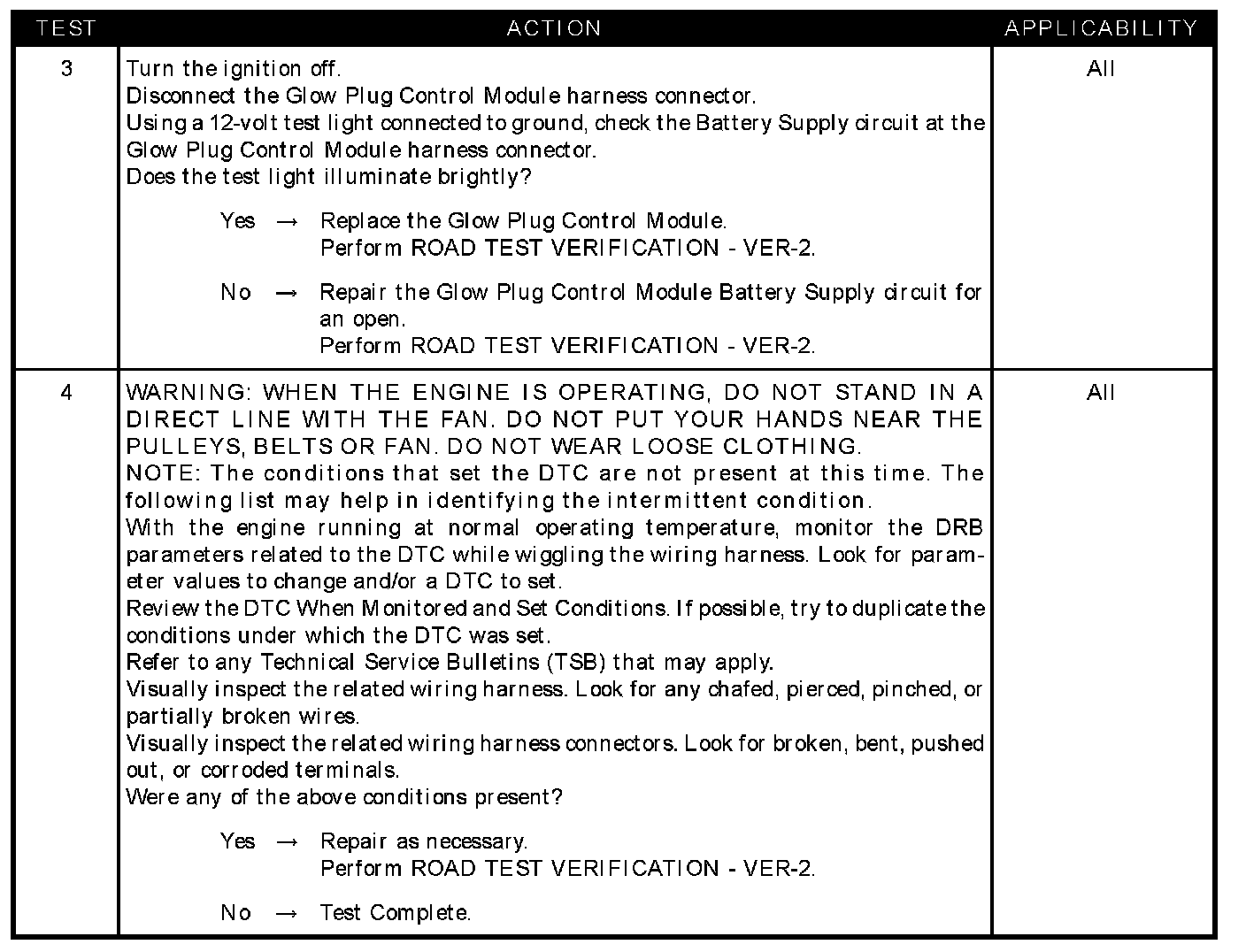

Test 3 - Test 4:

SYMPTOM
P2132-GLOW PLUG CONTROL MODULE FAULT

TEST NOTE
This symptom is diagnosed using the test P2132-GLOW PLUG CONTROL MODULE CIRCUIT OPEN CIRCUIT.

POSSIBLE CAUSES
- Battery supply circuit open
- Ground circuit open
- Intermittent condition
- Glow plug control module
