P2110

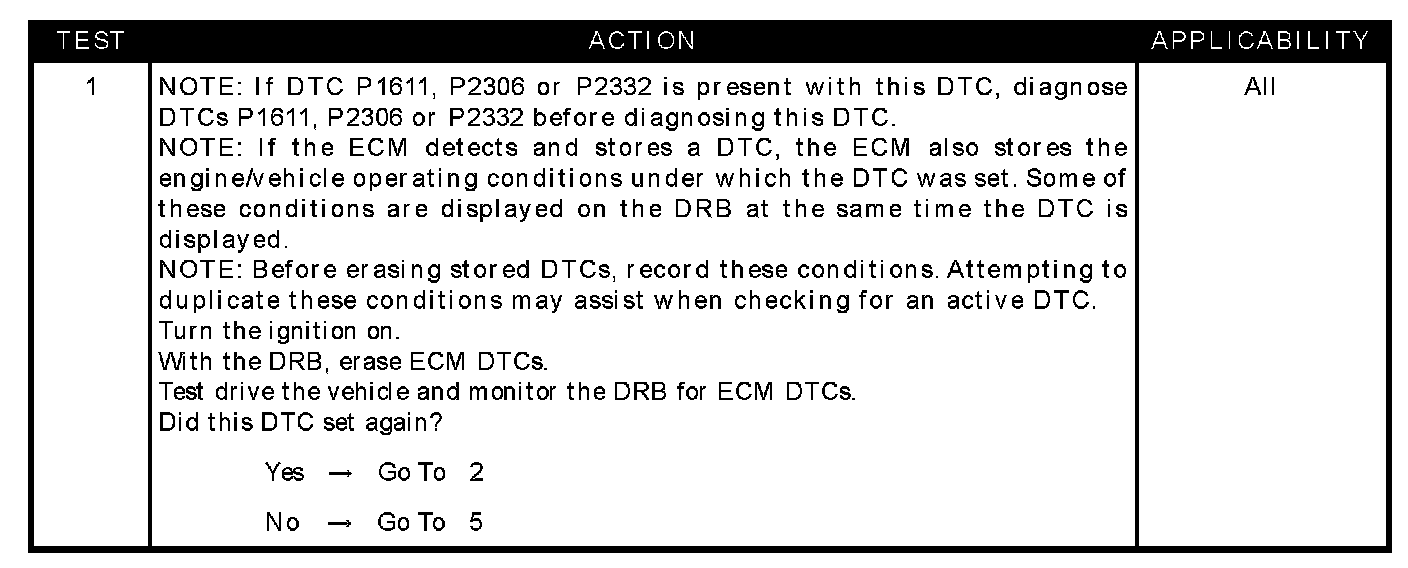

Test 1:

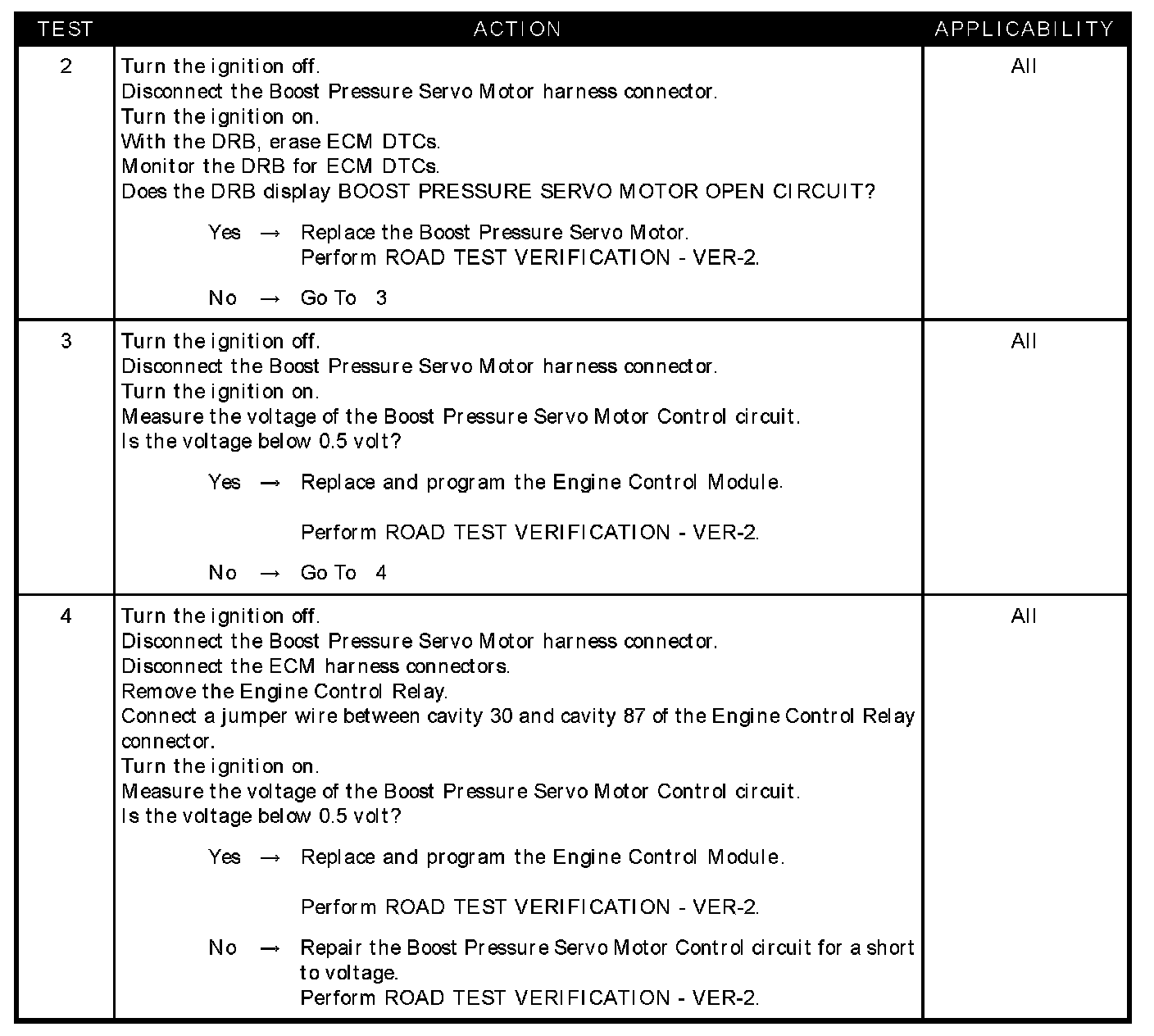

Test 2 - Test 4:

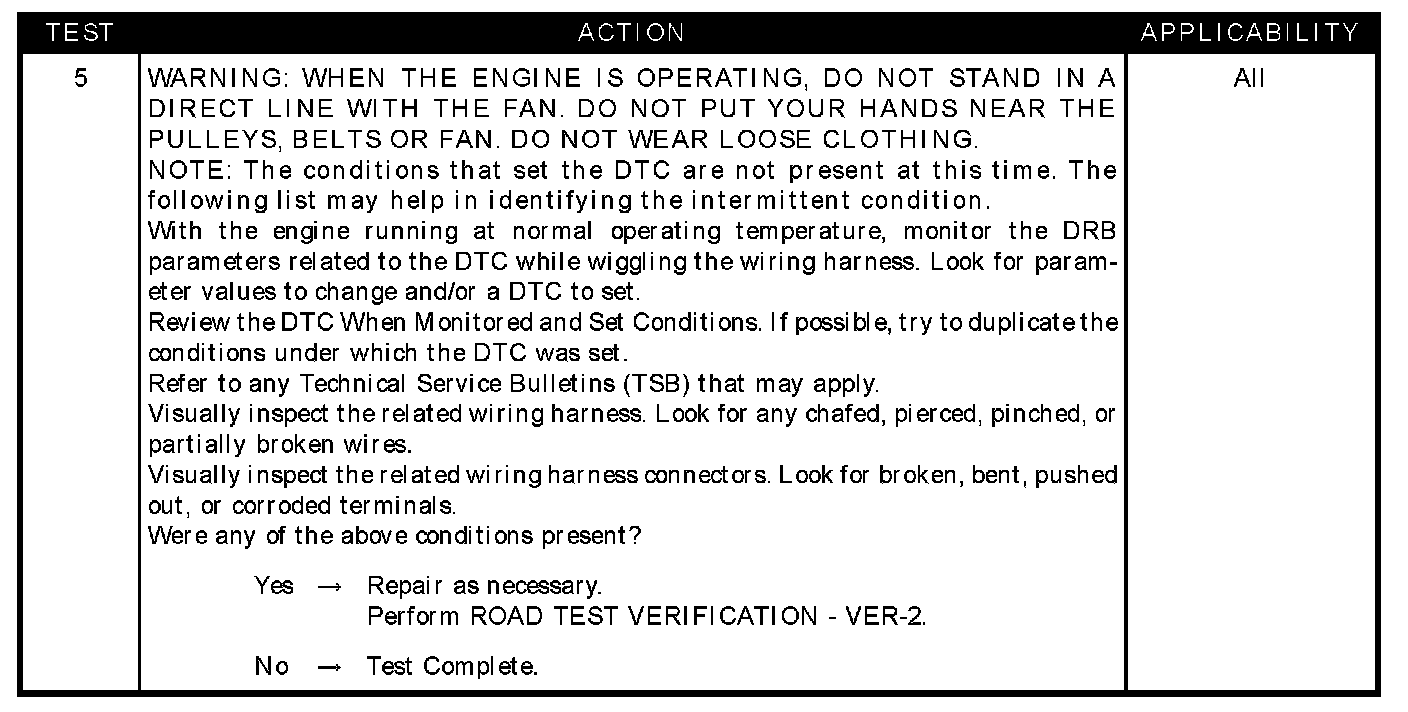

Test 5:

SYMPTOM
P2110-BOOST PRESSURE SERVO MOTOR CIRCUIT SHORT CIRCUIT

WHEN MONITORED
With the ignition on.

SET CONDITION
The ECM detects a short to battery on the Boost Pressure Servo Motor Control circuit.

POSSIBLE CAUSES
- Intermittent condition
- Boost pressure servo motor
- Boost pressure servo motor control short to voltage
- Engine control module - internal
- Engine control module - internal short to voltage
