Intake Pressure Sensor Open Circuit

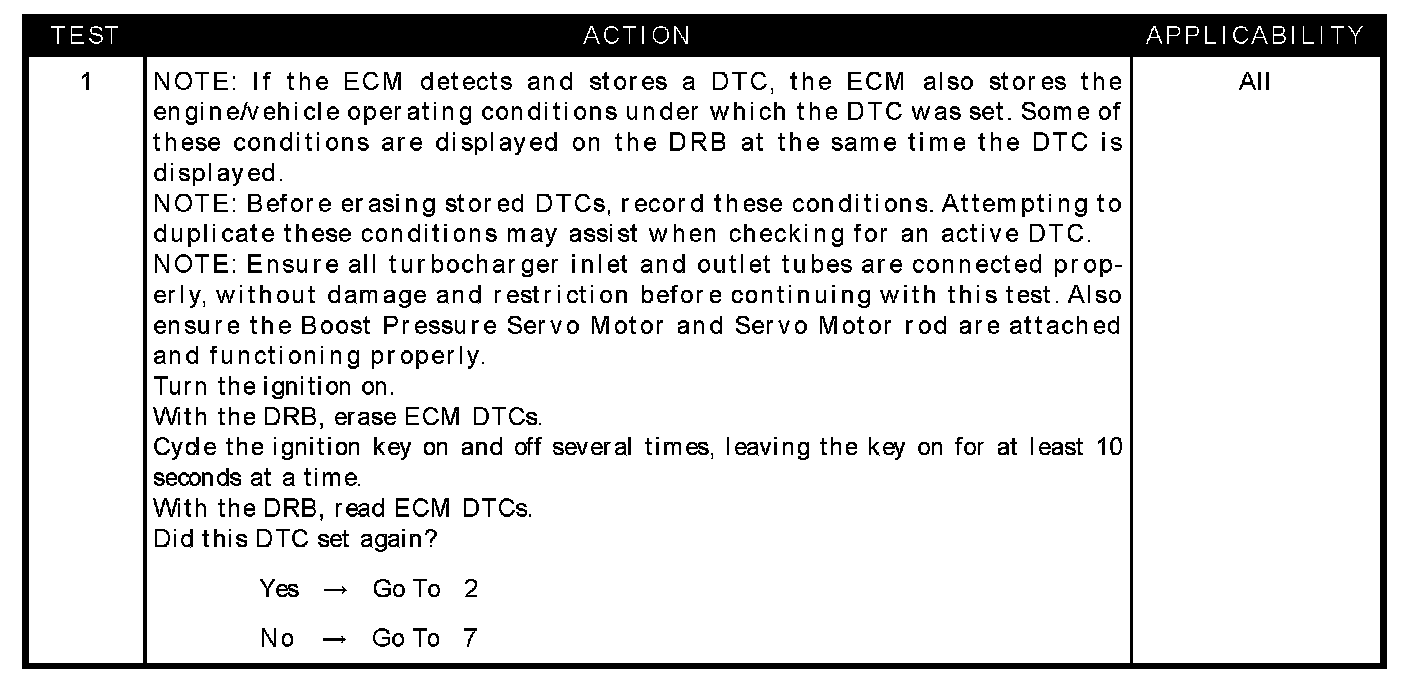

Test 1:

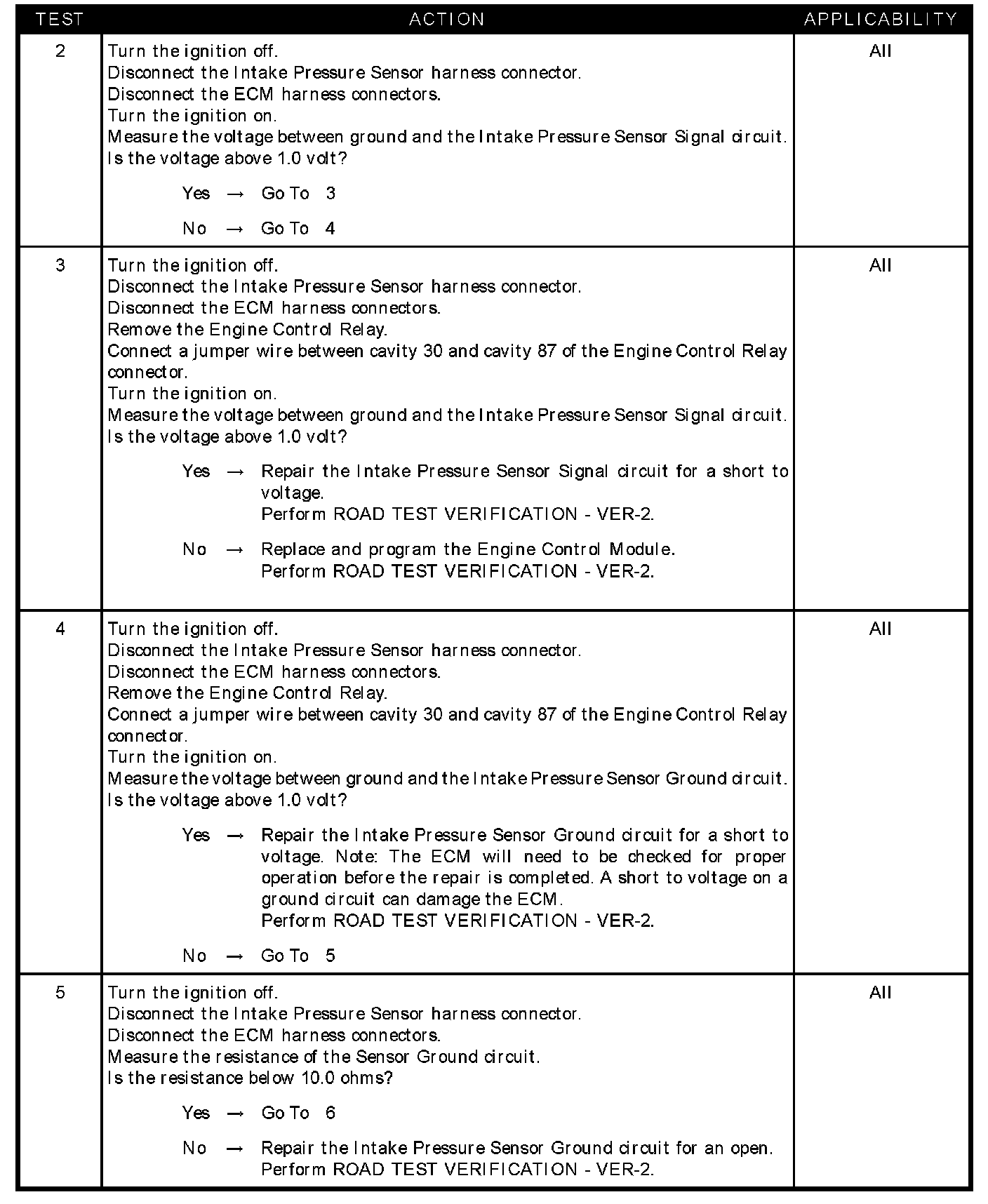

Test 2 - Test 5:

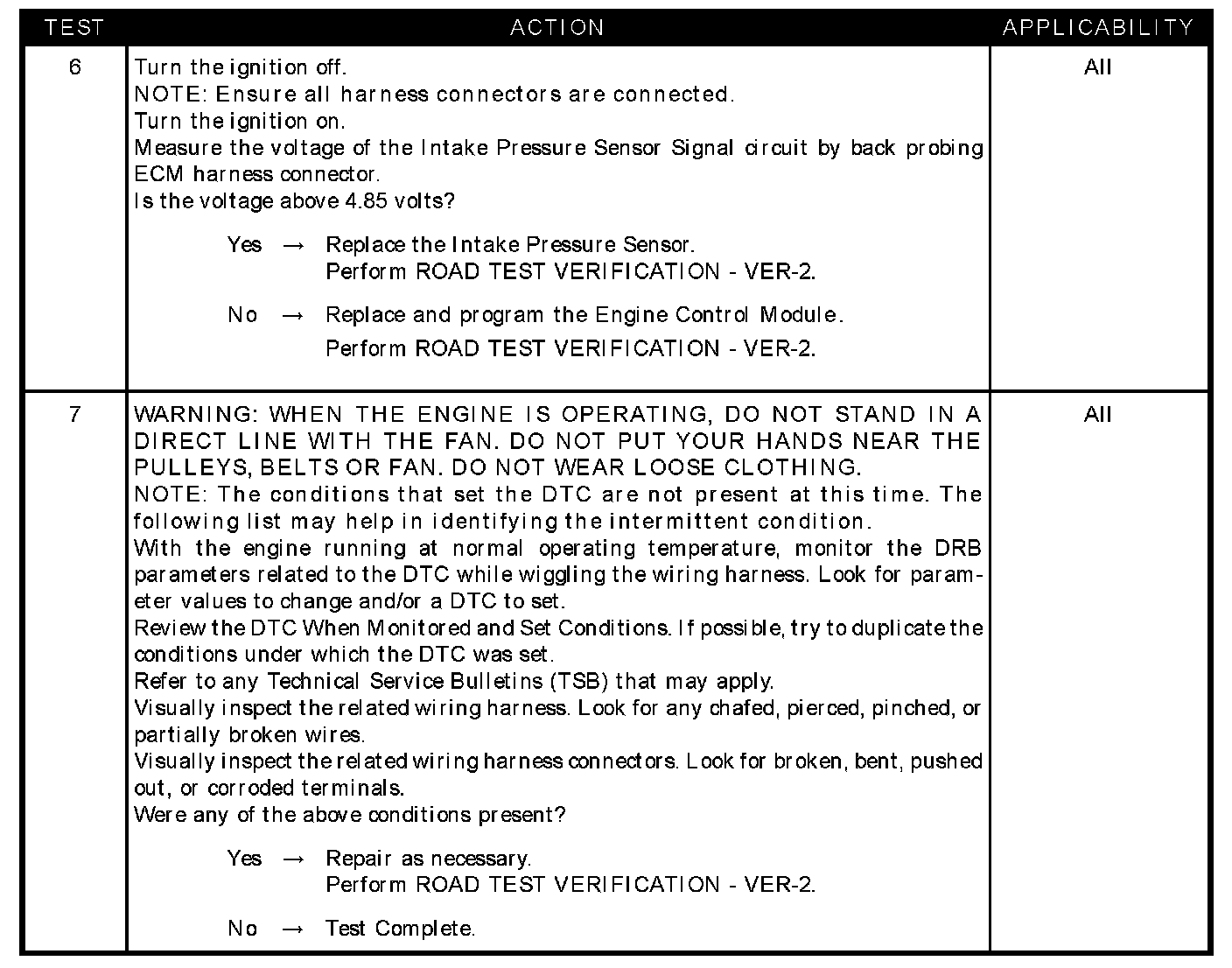

Test 6 - Test 7:

SYMPTOM
P2030-INTAKE PRESSURE SENSOR OPEN CIRCUIT

TEST NOTE
This symptom is diagnosed using the test P2025-INTAKE PRESSURE SENSOR SIGNAL VOLTAGE TOO HIGH.

POSSIBLE CAUSES
- Intermittent condition
- Intake pressure sensor ground circuit shorted to voltage
- Intake pressure sensor signal circuit shorted to voltage
- Intake pressure sensor ground circuit open
- Intake pressure sensor
- Engine control module (internal)
- Engine control module (sensor signal shorted to voltage)
