P1612
P1612

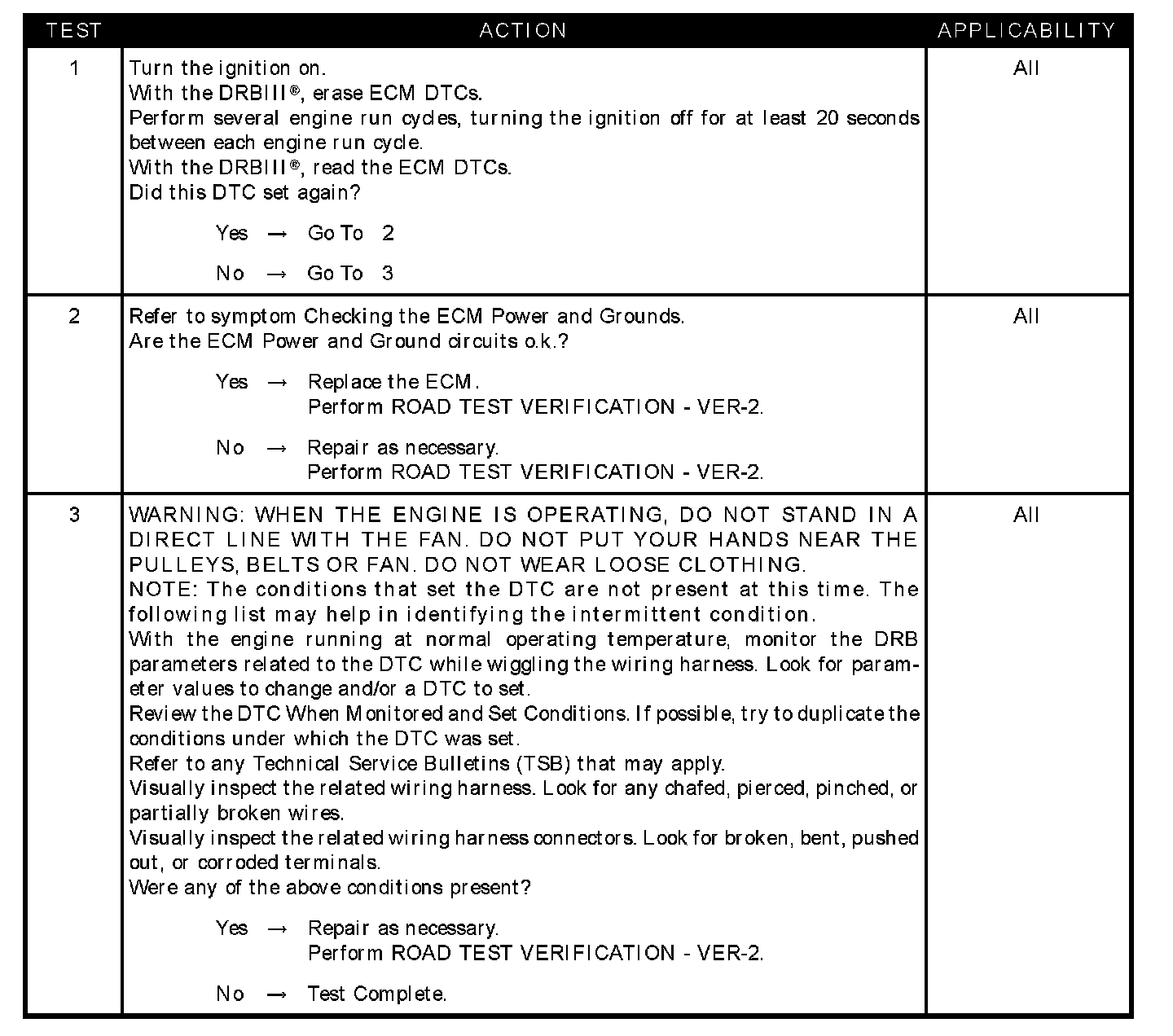

Test 1 - Test 3:
SYMPTOM
P1612-IGNITION VOLTAGE - VOLTAGE ERROR
POSSIBLE CAUSES
-
Check the ECM power and grounds
-
Engine control module
-
Intermittent condition
