Glow Plug Module - Excess Current

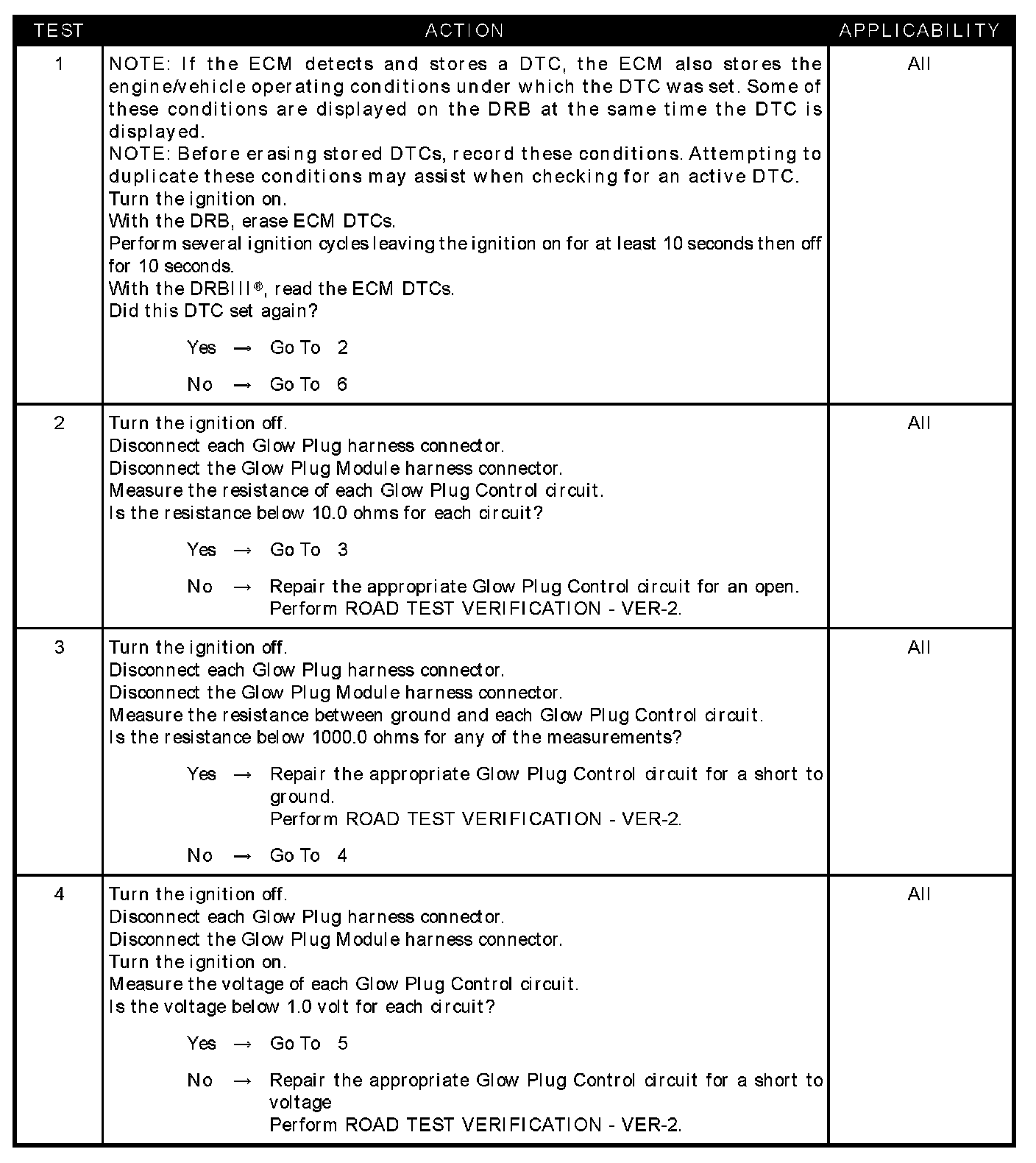

Test 1 - Test 4:

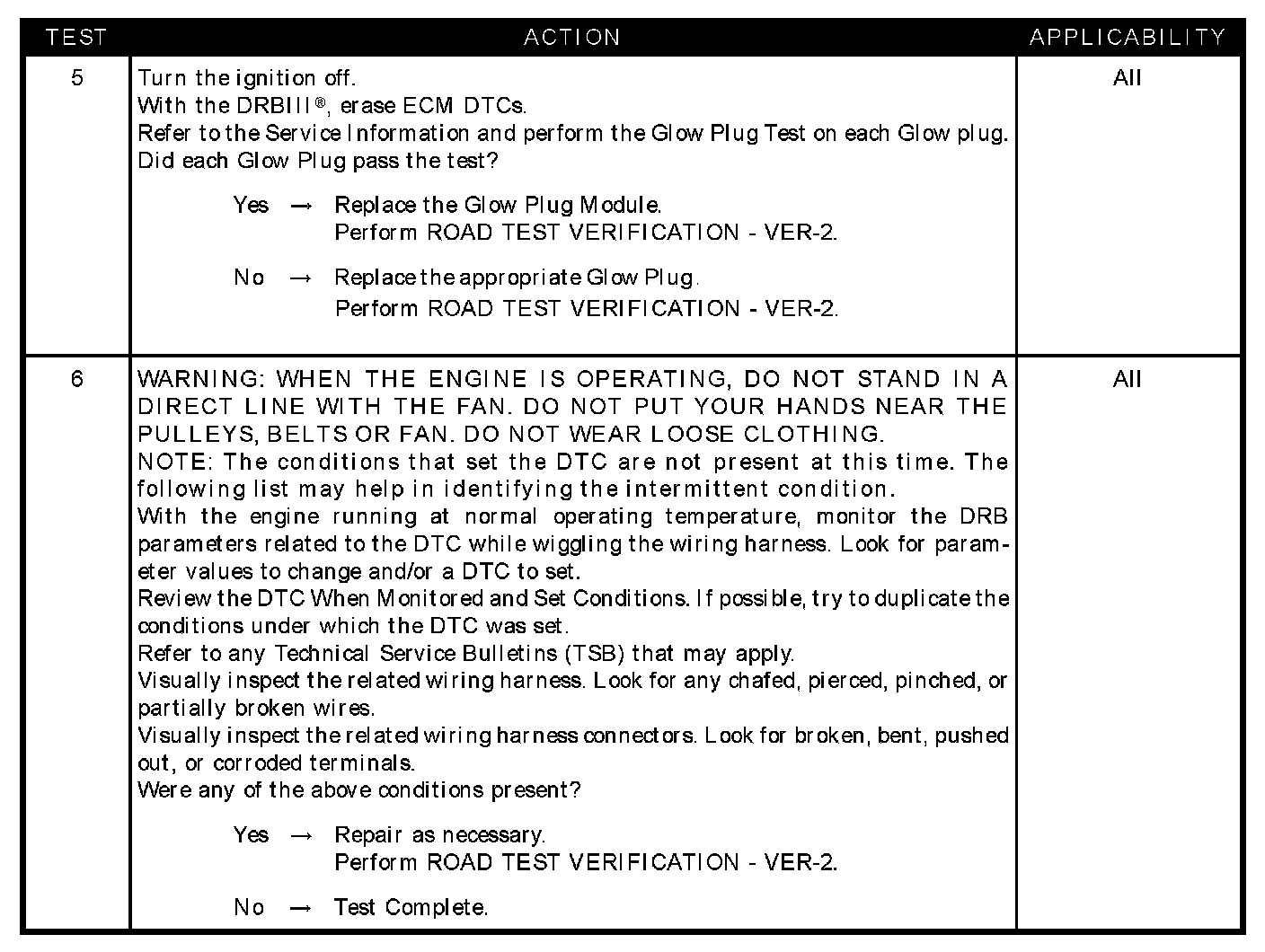

Test 5 - Test 6:

SYMPTOM
P1482-GLOW PLUG MODULE - EXCESS CURRENT

POSSIBLE CAUSES
- Glow plug
- Glow plug control circuit open
- Glow plug control circuit shorted to ground
- Glow plug control circuit shorted to voltage
- Glow plug module
- Intermittent condition
