P1480
P1480

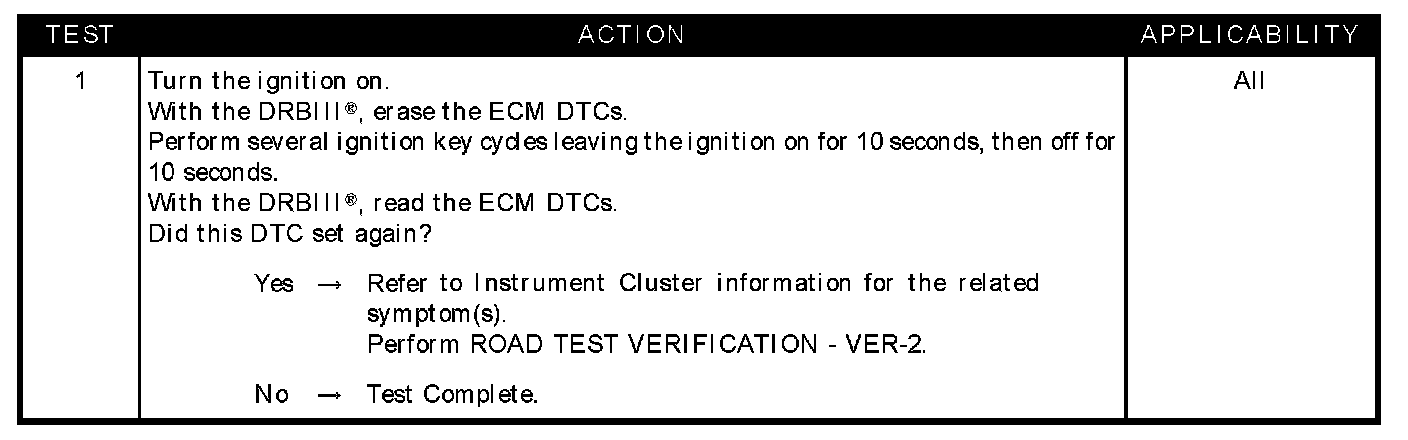

Test 1:
SYMPTOM
P1480-GLOW PLUG INDICATOR ERROR
WHEN MONITORED
With the ignition on.
SET CONDITION
The ECM receives a glow plug indicator error message from the instrument cluster over the CAN Bus.
POSSIBLE CAUSES
-
Verify current DTC
