P0600

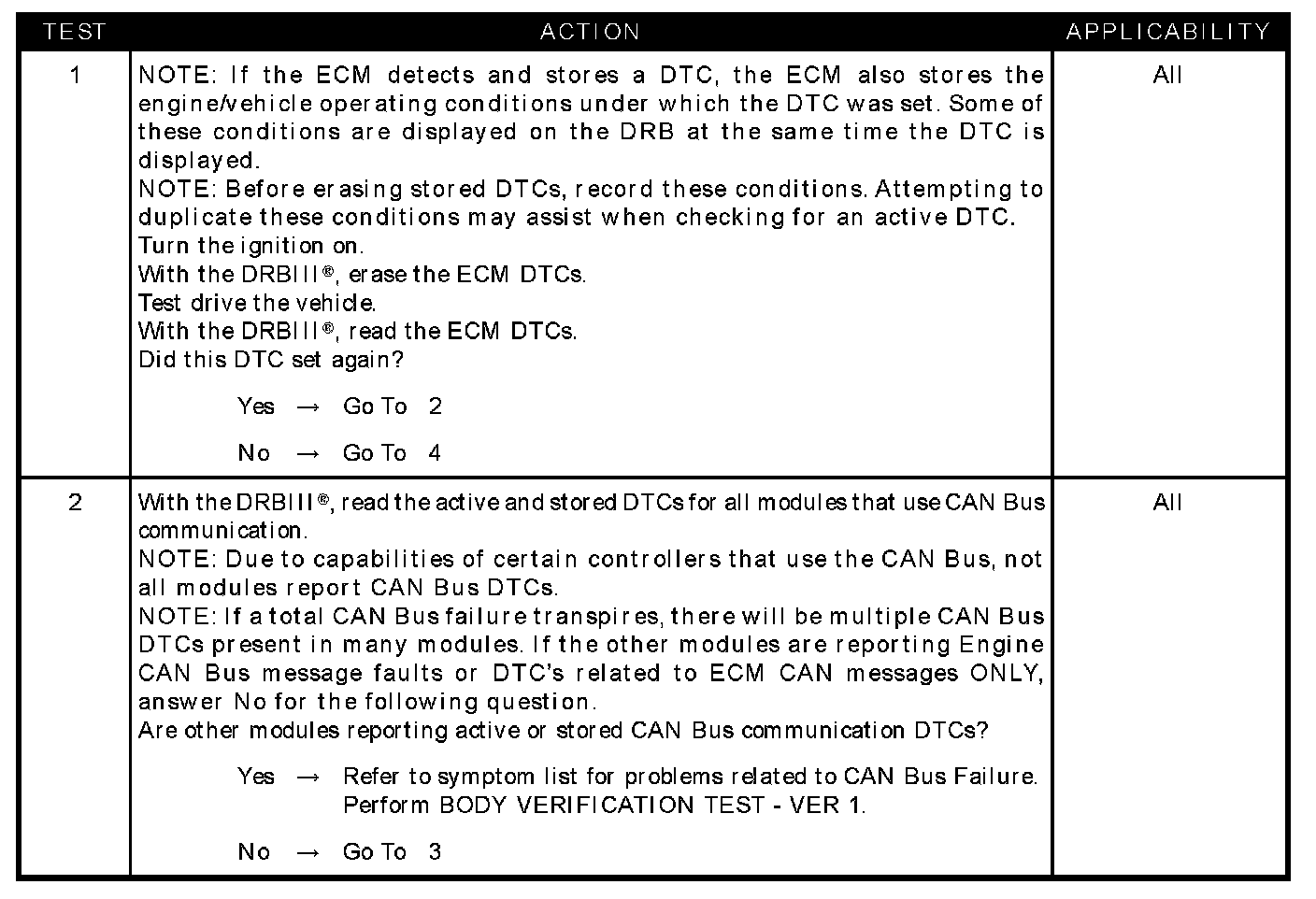

Test 1 - Test 2:

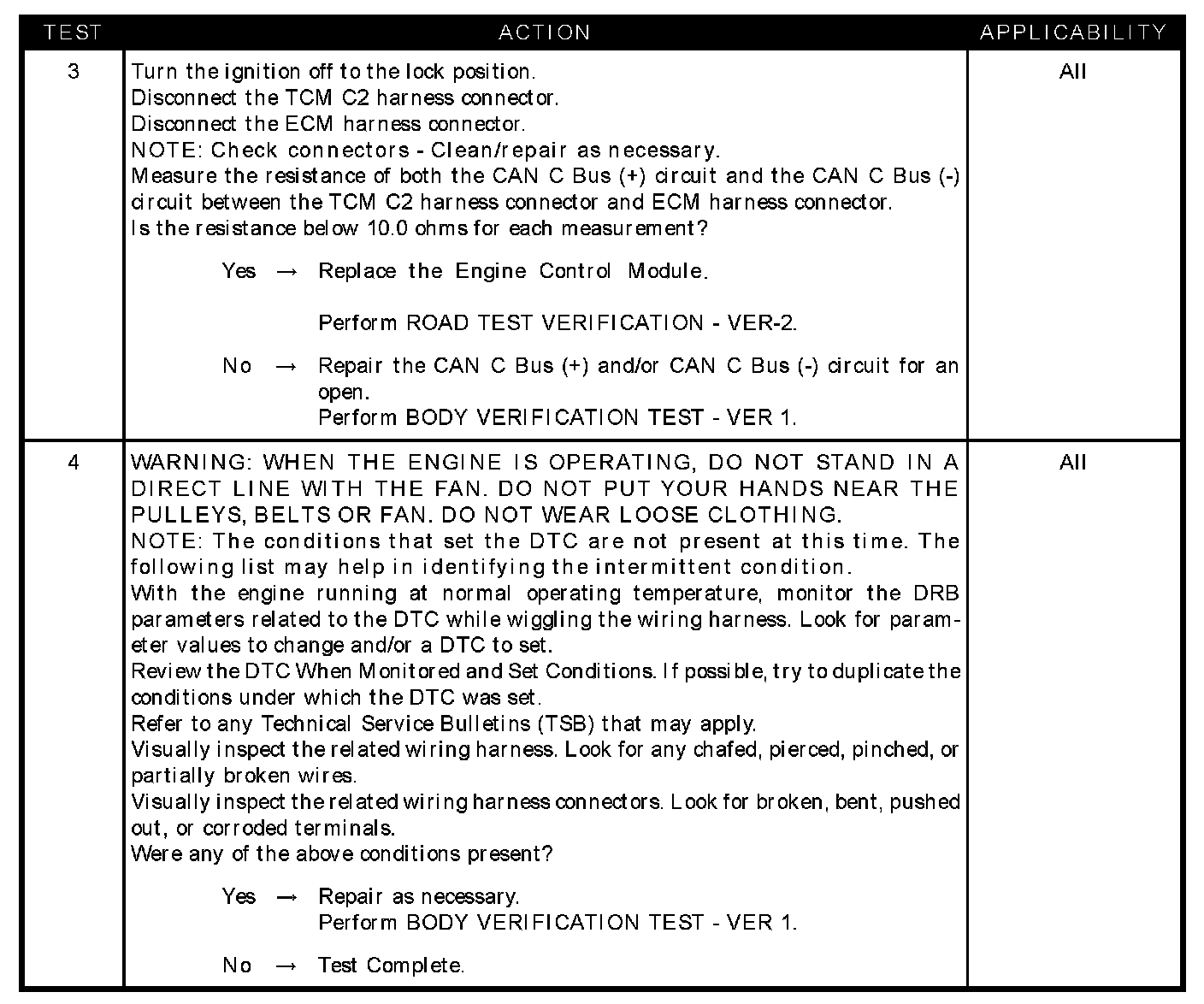

Test 3 - Test 4:

SYMPTOM
P0600-CAN DATA BUS - BUS CIRCUIT FAULT

WHEN MONITORED
With the ignition on.

SET CONDITION
The ECM detects an open, short to ground or short to voltage on the CAN Bus circuit.

POSSIBLE CAUSES
- Engine control module
- Intermittent condition
- CAN BUS communication DTCs
- CAN BUS circuits open to TCM
