P0500

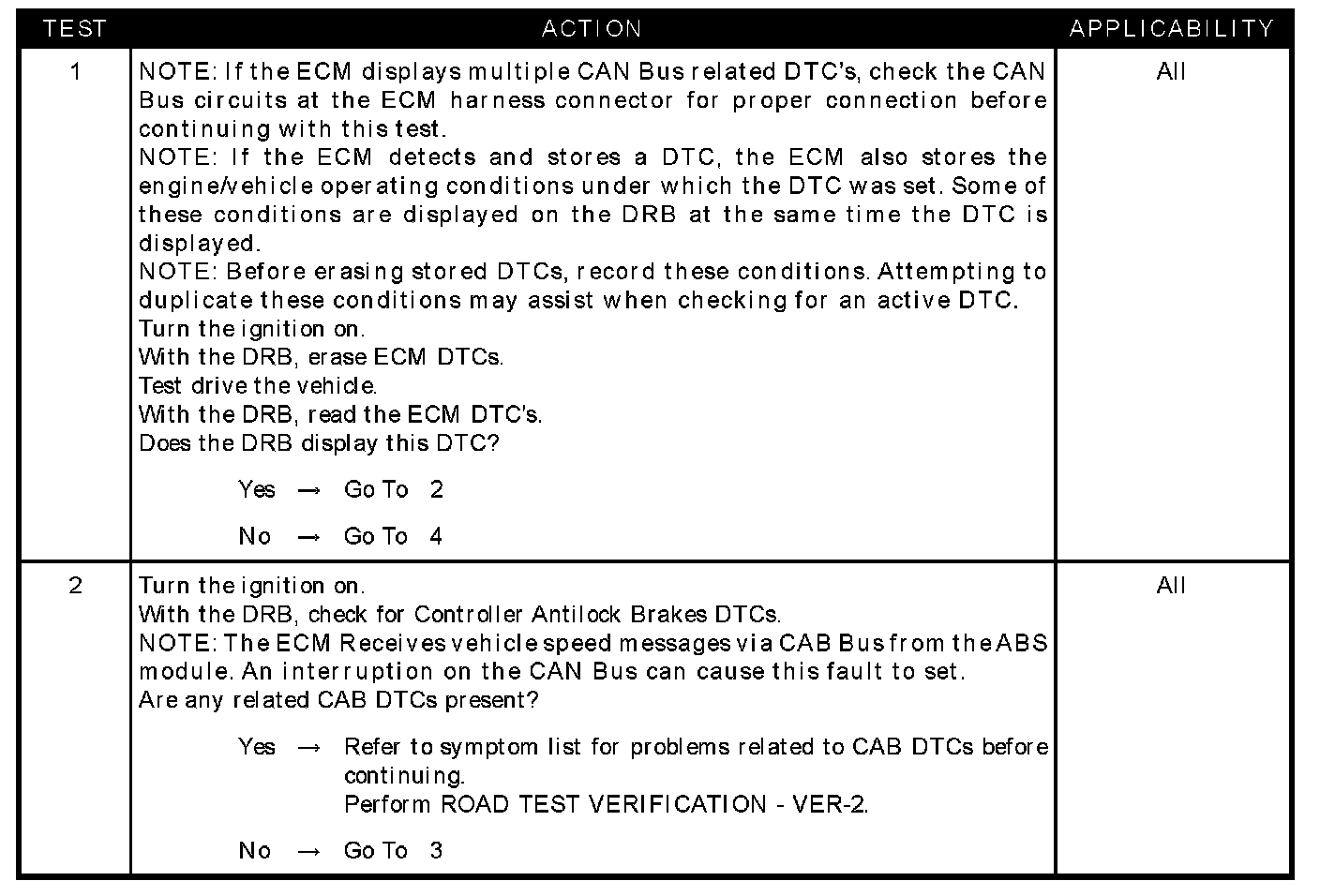

Test 1 - Test 2:

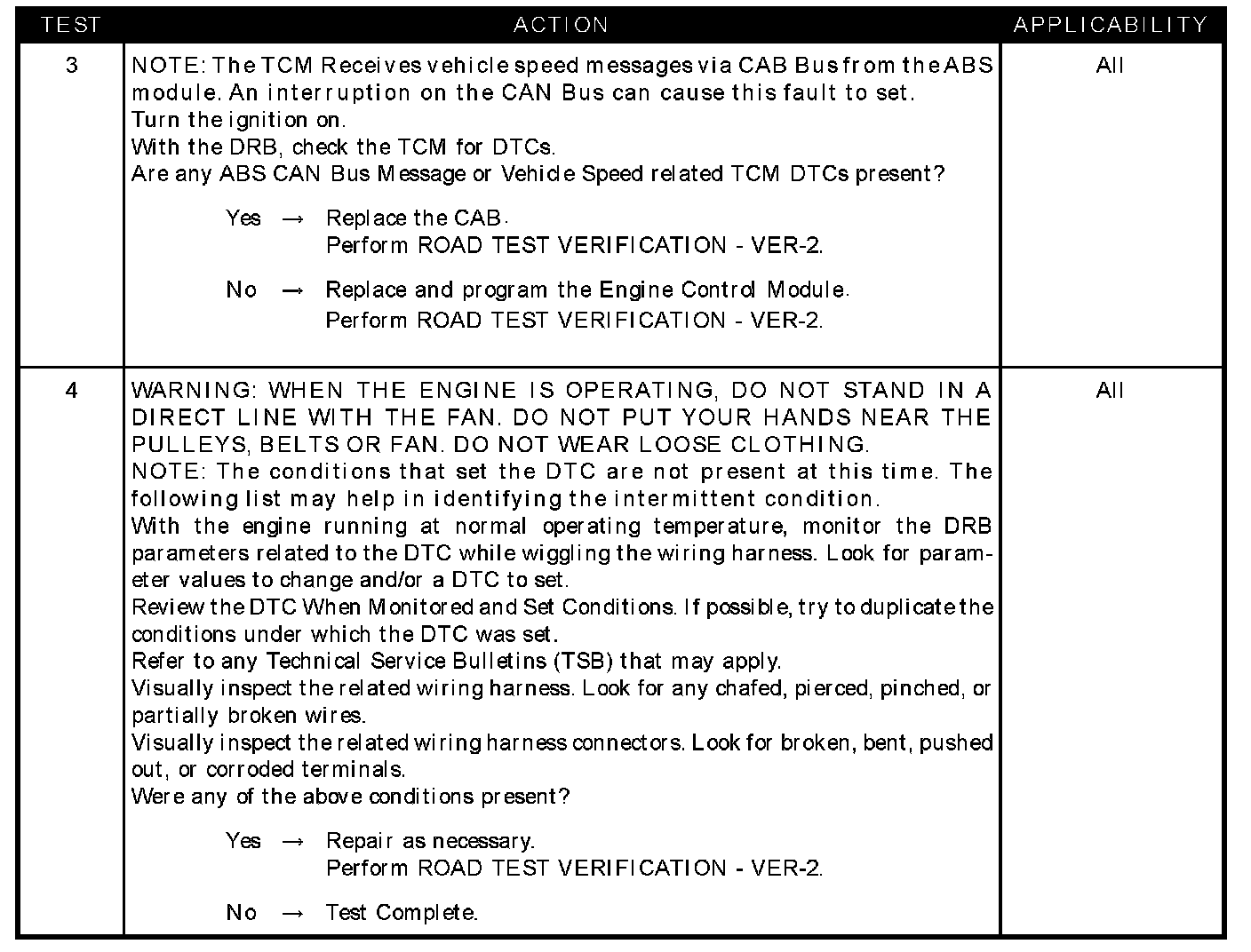

Test 3 - Test 4:

SYMPTOM
P0500-WHEEL SPEED SENSOR PLAUS - CAN BUS MESSAGE FROM ABS

WHEN MONITORED
With the ignition on.

SET CONDITION
The Boost Pressure Sensor Signal voltage exceeds 4.85 volts for at least 2 seconds.

POSSIBLE CAUSES
- Intermittent condition
- Check for related controller antilock brakes DTCs
- Check for related transmission control module DTCs
- Engine control module
