Engine Coolant Temp Sensor Circuit Plausibility

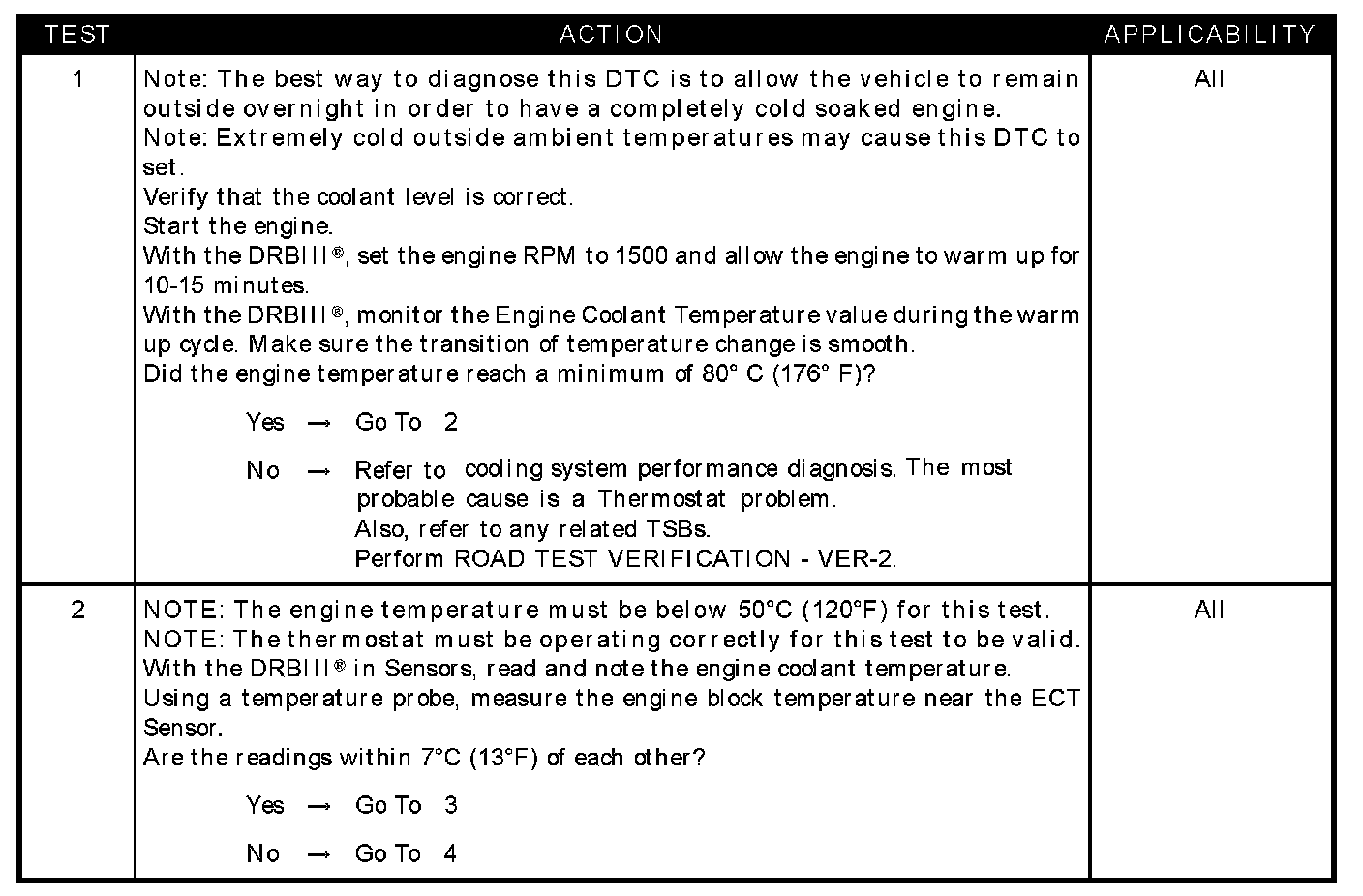

Test 1 - Test 2:

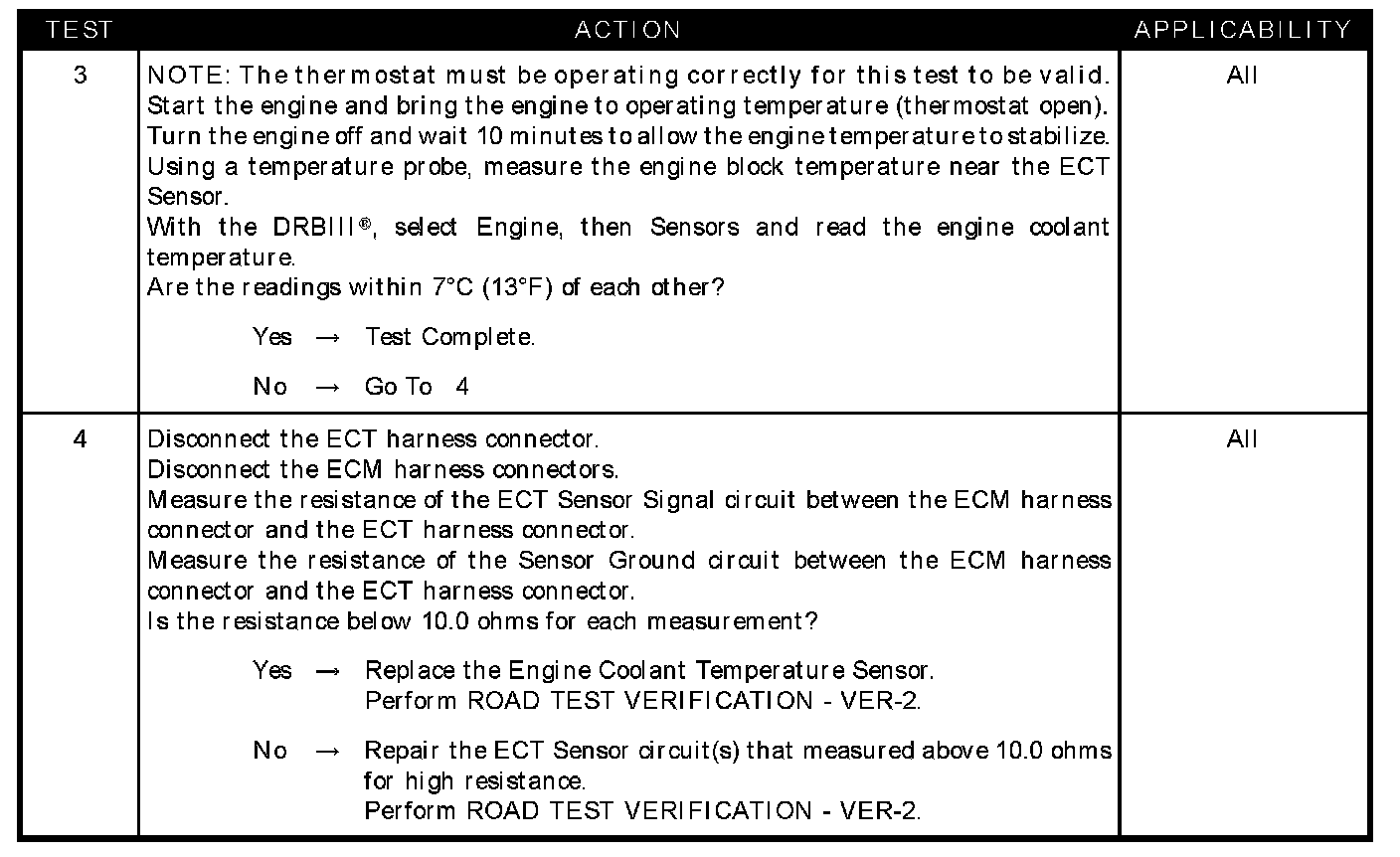

Test 3 - Test 4:

SYMPTOM
P0115-ENGINE COOLANT TEMP SENSOR CIRCUIT PLAUSIBILITY

POSSIBLE CAUSES
- ECT sensor
- ECT sensor - cold
- ECT sensor - hot
- High resistance in ECT sensor circuits
- Engine cold too long
